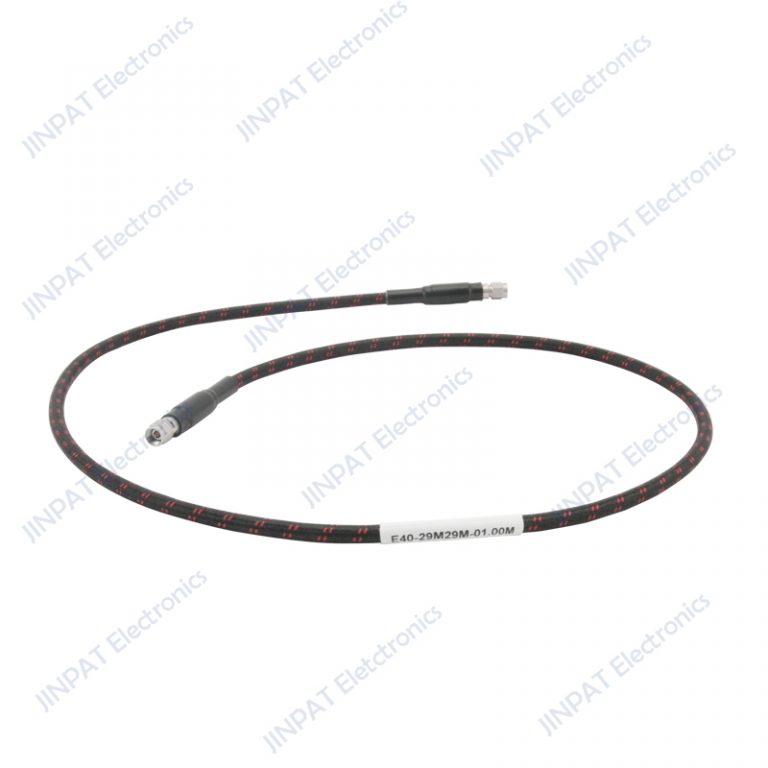

E40-29M29M-01.00M Typical High Frequency Auxiliaries

E40-29M29M-01.00M Typical High Frequency Auxiliaries

  • Insertion loss ：3.35dB Frequency range ：DC-40GHz VSWR,max ：1.3
Details

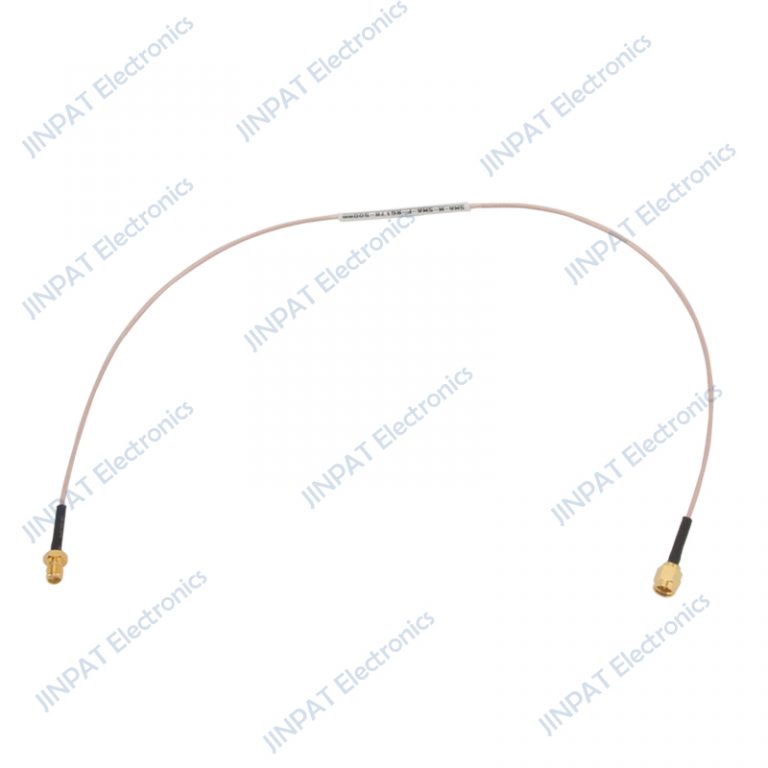

SMA-M-SMA-F-RG316-500mm Typical High Frequency Auxiliaries

SMA-M-SMA-F-RG316-500mm Typical High Frequency Auxiliaries

  • Insertion loss ：1.8dB VSWR,max ：13.5
Details

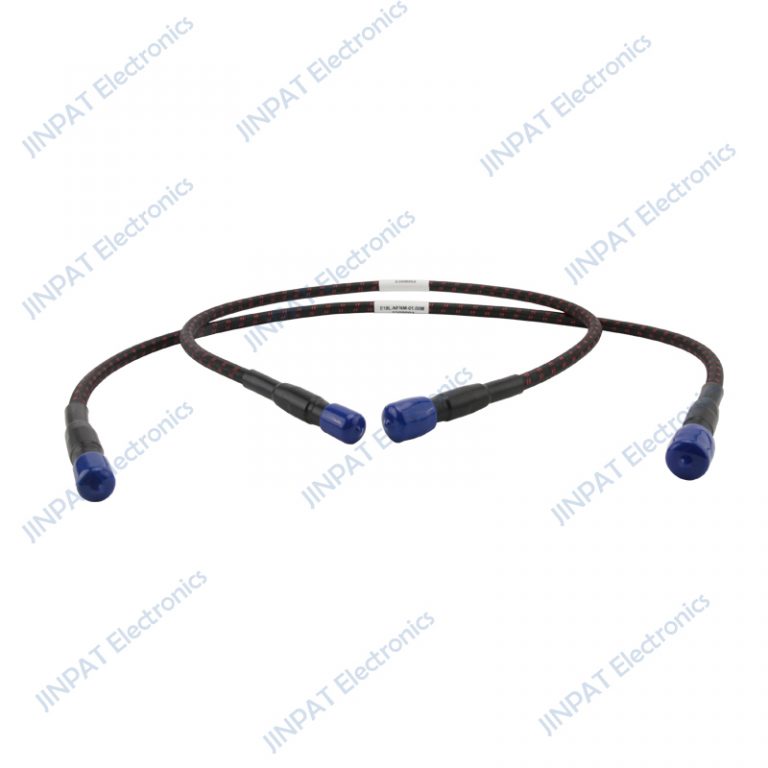

E18L-NFNM-01.00M Typical High Frequency Auxiliaries

E18L-NFNM-01.00M Typical High Frequency Auxiliaries

  • Insertion loss ：0.98dB Frequency range ：DC-18GHz VSWR,max ：1.3
Details

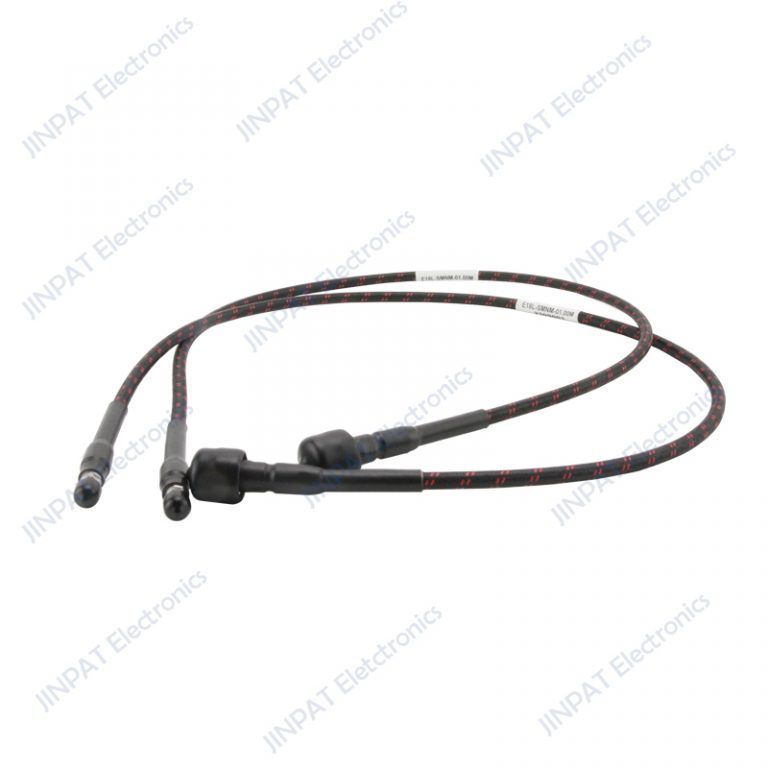

E18L-SMSM-01.00M Typical High Frequency Auxiliaries

E18L-SMSM-01.00M Typical High Frequency Auxiliaries

  • Insertion loss ：1.32dB Frequency range ：DC-18GHz VSWR,max ：1.3
Details
E18L-SMSM-01.00M Typical High Frequency Auxiliaries

E18L-SMSM-01.00M Typical High Frequency Auxiliaries

  • Insertion loss ：1.32dB Frequency range ：DC-18GHz VSWR,max ：1.3
Details

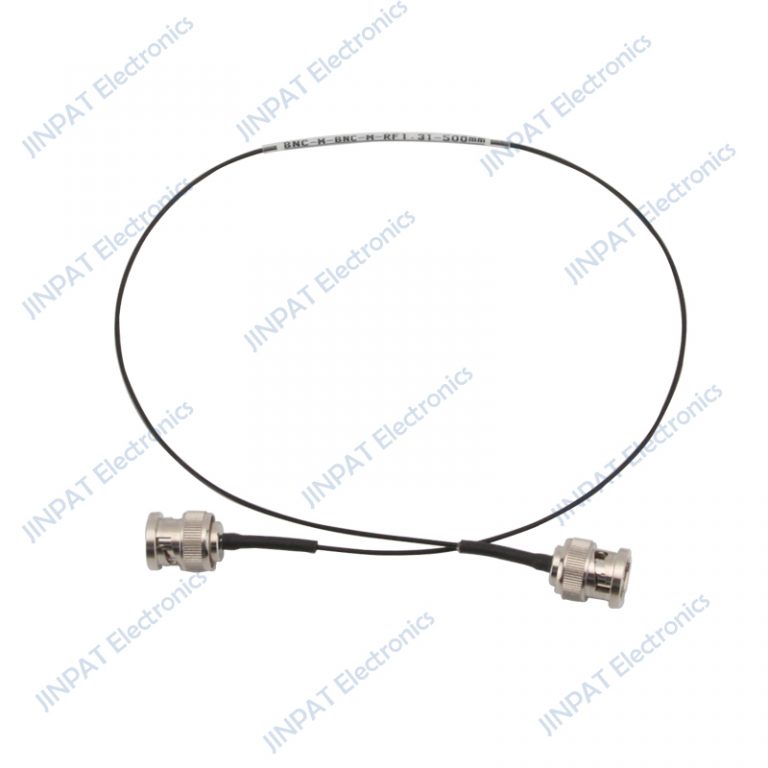

BNC-M-BNC-M-RF1.32-500mm Typical High Frequency Auxiliaries

BNC-M-BNC-M-RF1.32-500mm Typical High Frequency Auxiliaries

  • Insertion loss ：2.8dB Frequency range ：DC-3GHz VSWR,max ：1.5
Details
N-F-N-F(75Ω）Typical High Frequency Auxiliaries

N-F-N-F(75Ω）Typical High Frequency Auxiliaries

  • Insulation Resistance：5000MΩ Voltage ：335V（rms） Insertion loss ripple ：1.0dB VSWR,max ：1.3
Details
SWA810-N-M-N-F-Typical High Frequency Auxiliaries

SWA810-N-M-N-F-Typical High Frequency Auxiliaries

  • Insulation Resistance：5000MΩ Voltage ：335V（rms） Insertion loss ripple ：0.8dB VSWR,max ：1.3
Details

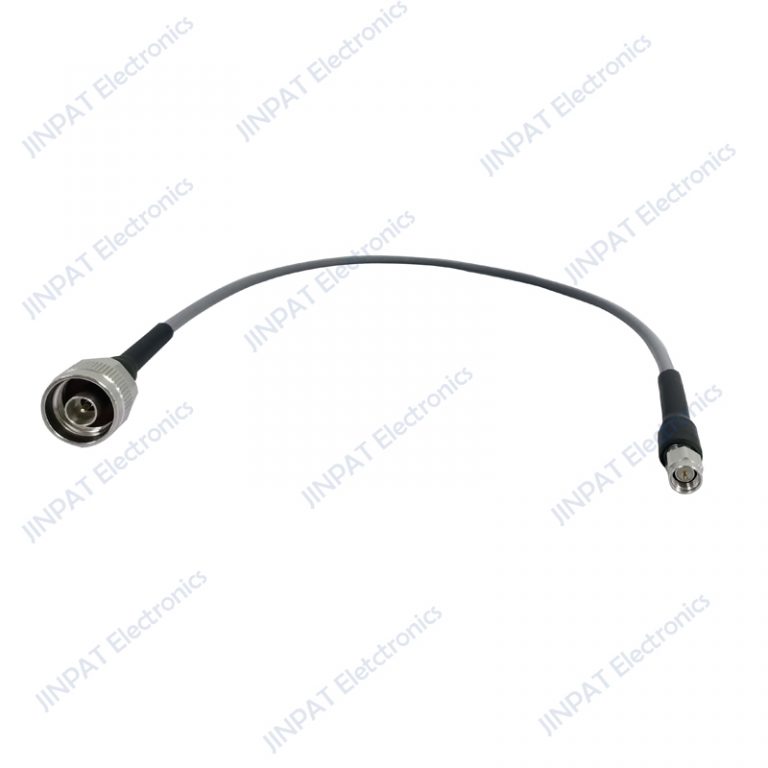

SWA480-N-M-SMA-M-Typical High Frequency Auxiliaries

SWA480-N-M-SMA-M-Typical High Frequency Auxiliaries

  • Insulation Resistance ：5000MΩ Voltage ：335V（rms） VSWR,max ：1.3 Peak power,max：1000W
Details
12>>Total

2 Page
