What types of slip rings are suitable for UAVs?
UAV is an abbreviation for Unmanned Aerial Vehicles. UAV has not only played an important role in the military field, but has also become an electronic device available for civilian use, especially for aerial photography. UAVs usually have a contact ring on them to transfer data between the camera / electro-optical module and the processor. […]
Информация
UAV is an abbreviation for Unmanned Aerial Vehicles. UAV has not only played an important role in the military field, but has also become an electronic device available for civilian use, especially for aerial photography. UAVs usually have a contact ring on them to transfer data between the camera / electro-optical module and the processor. The slip ring allows the camera or sensor to freely rotate 360 degrees while transmitting signals.
So, what are the best slip rings for drones? JINPAT Electronics presents here some effective and reliable rotary solutions!

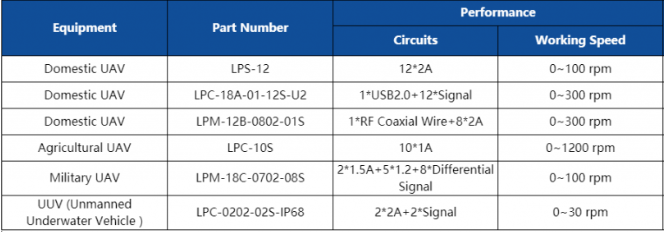

For drones, JINPAT highly recommends the JINPAT LPS separate slip ring, the JINPAT LPC series capsule slip ring, and the JINPAT LPM series miniature slip ring. These slip rings are ideal for UAVs due to two significant advantages: their compact design and ultra-light weight.
JINPAT slip rings have a modular design that allows simultaneous transmission of power and signals with 360 degree rotation. Due to the excellent shielding effect, there is no interference between circuits. The electrical slip rings manufactured by JINPAT have gold-gold contacts, which reduces friction during rotation. This technique ensures smooth and reliable rotation of the slip ring assembly and extends its service life.
JINPAT contact rings for UAVs are available in bulk. JINPAT has its own factory and can therefore supply slip rings at a very competitive price. In addition, JINPAT has a hidden inspection system. JINPAT slip rings are subjected to serious quality tests before delivery.
Contact JINPAT Electronics for more contact ring solutions! You will be satisfied with our products and services.
Features and Benefits
◆ Loading standard module in power and signal transmission with 360° continuous rotation
◆ Precise and compact internal structure using military surface treatment technique
◆ Special grooved design ensures smooth running and low electrical noise.
◆ Low contact pressure, low contamination wear due to multi-contact design
◆ Stable size, high accuracy in injection molding
◆ Copper ear stator, easy welding for customers
◆ Separate design, suitable for tiny installation space
◆ No lubrication, no maintenance
◆ Long service life
◆ Cost effective
keywords- slip ring manufacturers, slip rings wholesale, slip ring prices, drone slip rings, slip ring, electrically conductive rotating rings.
