Description:

This device can be used in any electromechanical system requiring unrestrained, continuous rotation in the transfer of power or data from a fixed to a rotating structure.

It is also referred to as a rotating electrical interface, switch, manifold, hinge, or electrical rotating joint. It can improve electromechanical capabilities, simplify system design, and eliminate possible rotational damage. It is the key apparatus of various precision rotary work tables, electrical test instruments, production and process control instruments.

Translated by www.DeepL.com/Translator (free version)

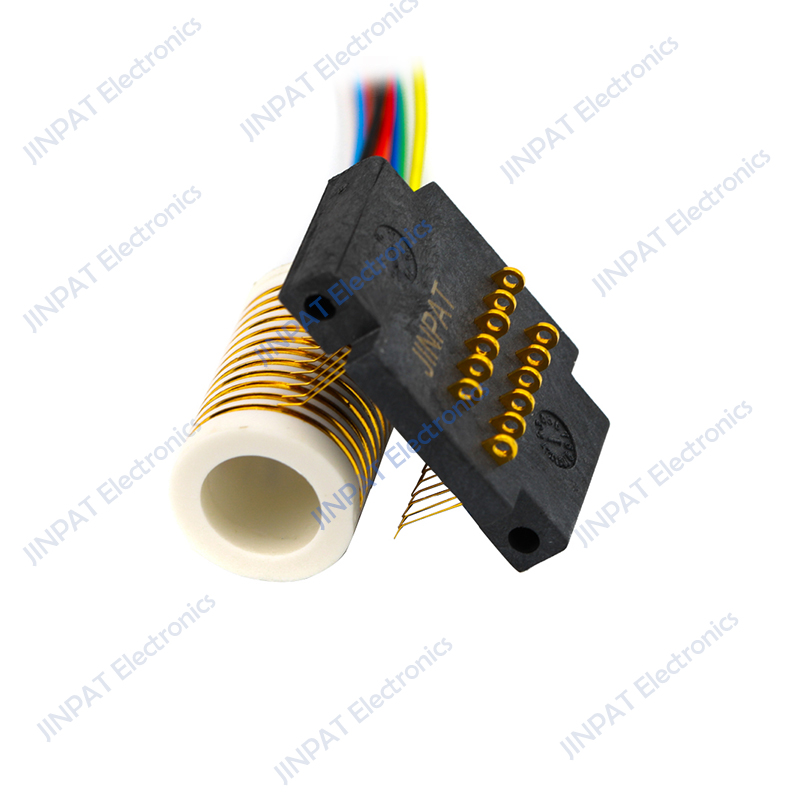

The LPS-12 separate slip ring is a standard off-the-shelf device that utilizes gold contacts on a rotating interface. Color-coded wires are used on both the stator and rotor to simplify electrical connections.

By utilizing a 90° V-groove in the design of each ring, the LPS-12 provides smoother running, lower torque and less electrical noise than competitive slip rings.

Features

◆ 12 circuit models

◆ Speed up to 300 rpm continuously

◆ Gold contacts

Standard wire length of 250 mm

◆ Compatible with data bus protocols

◆ Sealed devices available

◆ Flexible, color-coded, silver-plated lead wires

◆ Precision ball bearings meet or exceed life requirements for most commercial applications

Advantage

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth operation

◆ Low electrical noise

◆ Quick shipment according to your urgent requirement

◆ 360° continuous rotation

◆ High bandwidth transmission capability

Main application

◆ Electrical test equipment

◆ Production and process control equipment

◆ Indexing tables

◆ Pan/tilt CCTV camera mounts

◆ Robotics, rotary sensors, emergency lighting equipment

◆ Exhibition/demonstration equipment

◆ Medical equipment

◆ Aviation, military, tools

◆ Mini-type wire-rolling machine

◆ Customized equipment

◆ OEM Machinery
