Description

This device can be used in any electromechanical system requiring unrestrained, continuous rotation in the transfer of power or data from a fixed to a rotating structure.

It is also referred to as a rotating electrical interface, switch, manifold, hinge, or electrical rotating joint. It can improve electromechanical capabilities, simplify system design, and eliminate possible rotational damage. It is the key apparatus of various precision rotary work tables, electrical test instruments, manufacturing and process control instruments.

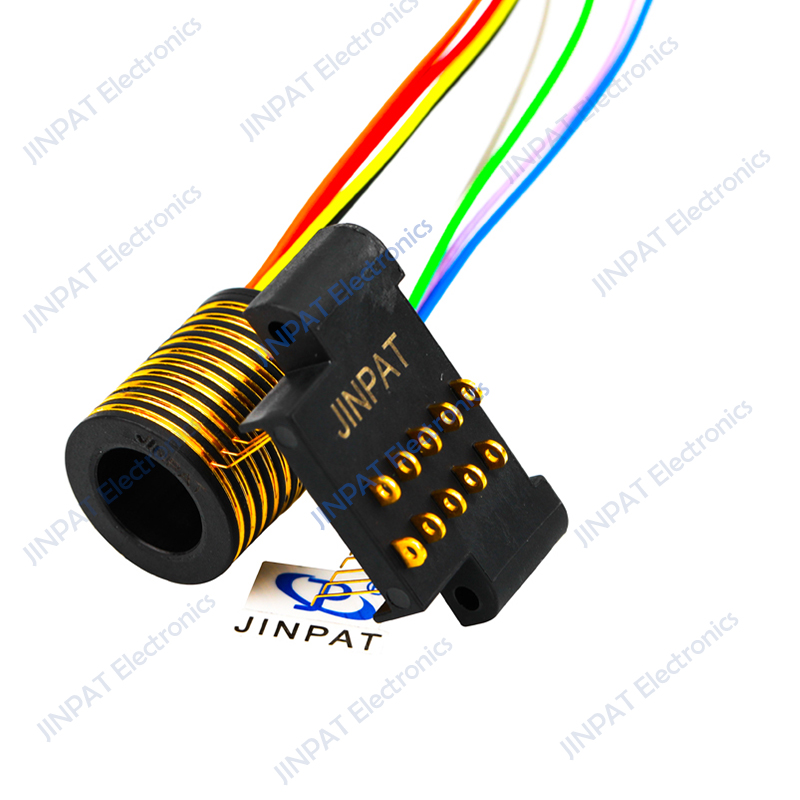

The LPS-10 individual slip ring is a standard off-the-shelf device that utilizes gold contacts on the rotating interface. Color-coded wires are used on both the stator and rotor to simplify electrical connections.

By utilizing a 90° V-groove in the design of each ring, the LPS-10 provides smoother running, lower torque and less electrical noise than competitive slip rings.

Features

◆ Models with 10 circuits

◆ Speed up to 100 rpm in continuous mode

◆ Gold-Gold contacts

◆ Standard wire length of 250 mm

◆ Compatible with data bus protocols

◆ Sealed units available

◆ Flexible, color-coded, silver-plated, current-carrying wires

◆ Precision ball bearings meet or exceed life requirements for most commercial applications

Benefits

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth operation

◆ Low electrical noise

◆ Quick shipment according to your urgent requirement

◆ 360° continuous rotation

◆ High bandwidth data transmission capability

Main applications

◆ Electrical test equipment

◆ Production and process control equipment

◆ Indexing tables

◆ Pan/tilt mounts for CCTV cameras

◆ Robotics, rotary sensors, emergency lighting equipment

◆ Exhibition/demonstration equipment

◆ Medical equipment

◆ Aviation, military, tools

◆ Mini-type wire-rolling machine

◆ Customized equipment

◆ OEM Machinery
