Description

This device can be used in any electromechanical system requiring unrestrained, continuous rotation in the transfer of power or data from a fixed to a rotating structure.

It is also referred to as a rotating electrical interface, switch, manifold, hinge, or electrical rotating joint. It can improve electromechanical capabilities, simplify system design, and eliminate possible rotational damage. It is the key apparatus of various precision rotary work tables, electrical test instruments, manufacturing and process control instruments.

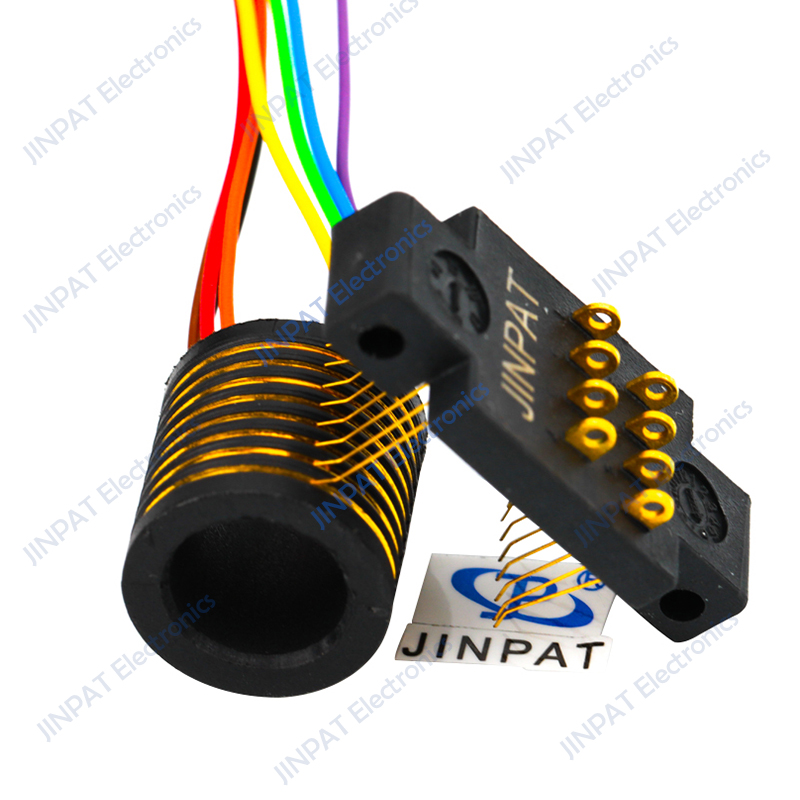

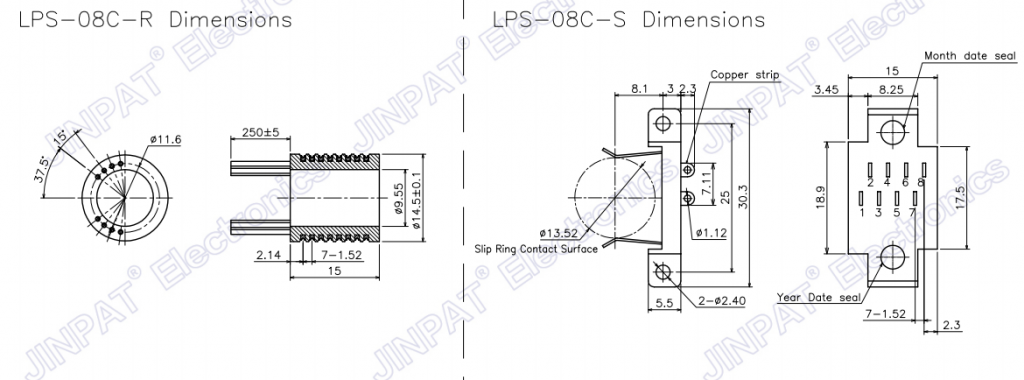

The LPS-08 separate slip ring is a standard off-the-shelf device that utilises gold contacts on the rotating interface. Colour coded wires are used on the stator and rotor to simplify electrical connections.

By utilising a 90° V-groove in the design of each ring, the LPS-08 provides smoother running, lower torque and less electrical noise than competitor slip rings.

Features

◆ Models with 4 circuits

◆ Precision ball bearings meet or exceed life requirements for most commercial applications

◆ Speeds up to 300 rpm in continuous operation

◆ Gold-Gold contacts

◆ Standard wire length of 250 mm

◆ Compatible with data bus protocols

◆ Sealed units available

◆ Flexible, colour-coded, silver-plated lead wires

Advantage

◆ Low torque minimises system torque budget

◆ Tightly packaged to fit in the most confined space.

◆ Smooth running

◆ Low electrical noise

◆ Fast dispatch on your urgent demand

◆ 360° continuous rotation

◆ High bandwidth transmission capability

Main application

◆ Electrical test equipment

◆ Production and process control equipment

◆ Indexing tables

◆ Pan/tilt mounts for CCTV cameras

◆ Robotics, rotary sensors, emergency lighting equipment

◆ Exhibition/demonstration equipment

◆ Medical equipment

◆ Aviation, military, tools

◆ Mini-type wire-rolling machine

◆ Customised equipment

◆ OEM Machinery
