Description:

This device can be used in any electromechanical system requiring unrestrained, continuous rotation in the transfer of power or data from a fixed to a rotating structure.

It is also referred to as a rotating electrical interface, switch, manifold, hinge, or electrical rotating joint. It can improve electromechanical capabilities, simplify system design, and eliminate possible rotational damage. It is the key apparatus of various precision rotary work tables, electrical test instruments, manufacturing and process control instruments.

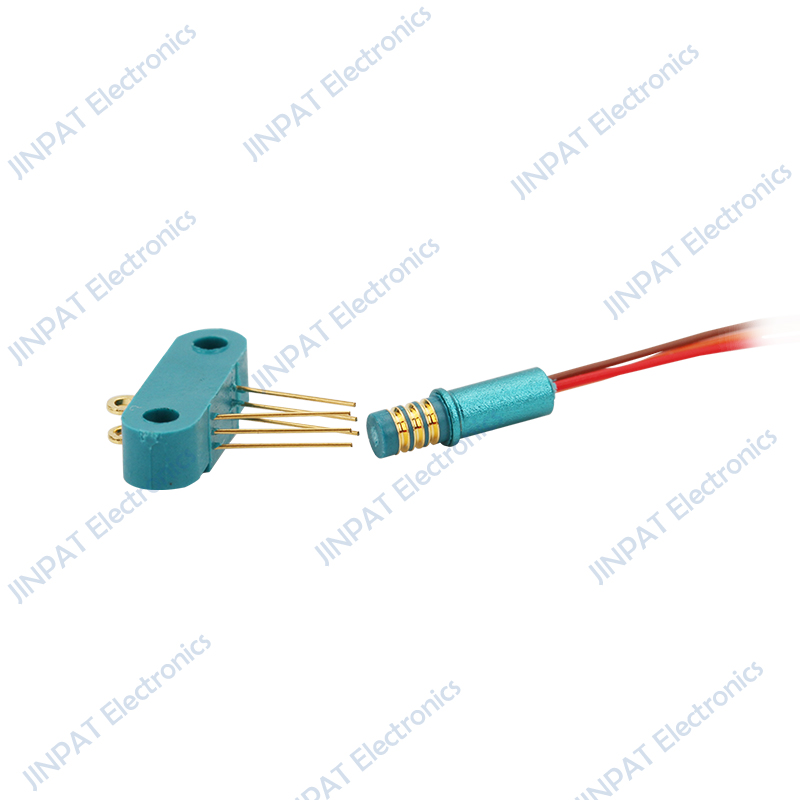

The LPS-03 separate slip ring is a standard off-the-shelf device that utilises gold contacts on the rotating interface. Colour coded wires are used on the stator and rotor to simplify electrical connections.

By utilising a 90° V-groove design for each ring, the LPS-03A provides smoother running, lower torque and less electrical noise than competitor slip rings.

Features

◆ 3 circuit models

◆ Speed up to 300 rpm in continuous mode

◆ Gold-Gold contacts

◆ Standard wire length of 250 mm

◆ Compatible with data bus protocols

◆ Sealed units available

◆ Colour coded and silver plated flexible lead wires

◆ Precision ball bearings meet or exceed life requirements for most commercial applications

Advantage

◆ Low torque minimises system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Fast dispatch for your urgent requirement

◆ 360° continuous rotation

◆ High bandwidth transmission capability
