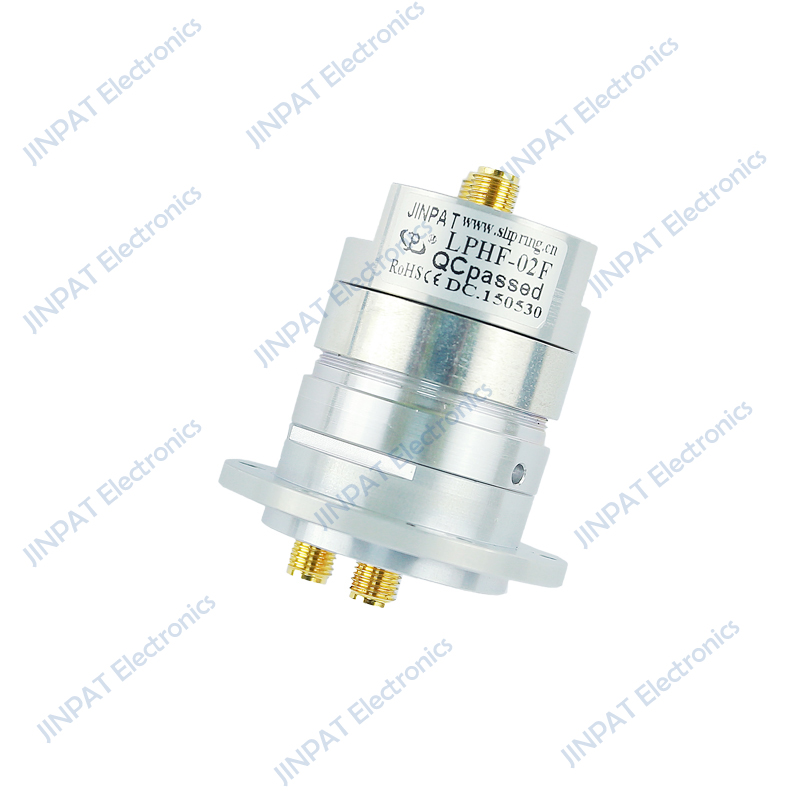

High-HF swivel joints include coaxial swivel joints, waveguide swivel joints, and coaxial waveguide swivel joints. They are also known as high frequency slip rings and radio frequency slip rings. High-frequency swivel couplings are specifically designed to carry high-speed serial digital signals such as high-definition, RF and microwave signals. The slip ring series supports single and multi-channel transmission of high-frequency signals. There are also hybrid solutions that support hybrid transmission of high frequency signals with control signals, communication signals, power signals and fluidics.

Features:
Up to 4 loops (model with more loops is customizable)
Frequency up to 50 GHz
Compact structure with low interference
Transmission of multiple signals simultaneously
Ultra-low insertion loss and transmission fluctuations
Long service life and no maintenance required

Applications:
Radar antenna, military system devices
High definition video surveillance network system
Satellite communication system
Medical instrument for treatment
Air traffic control and missile defense system

Keywords High frequency rotary couplers
