СТАНДАРТНЫЕ И МОДИФИЦИРОВАННЫЕ контактные кольца
LPPL06-12A-1202 Low torque rotary union

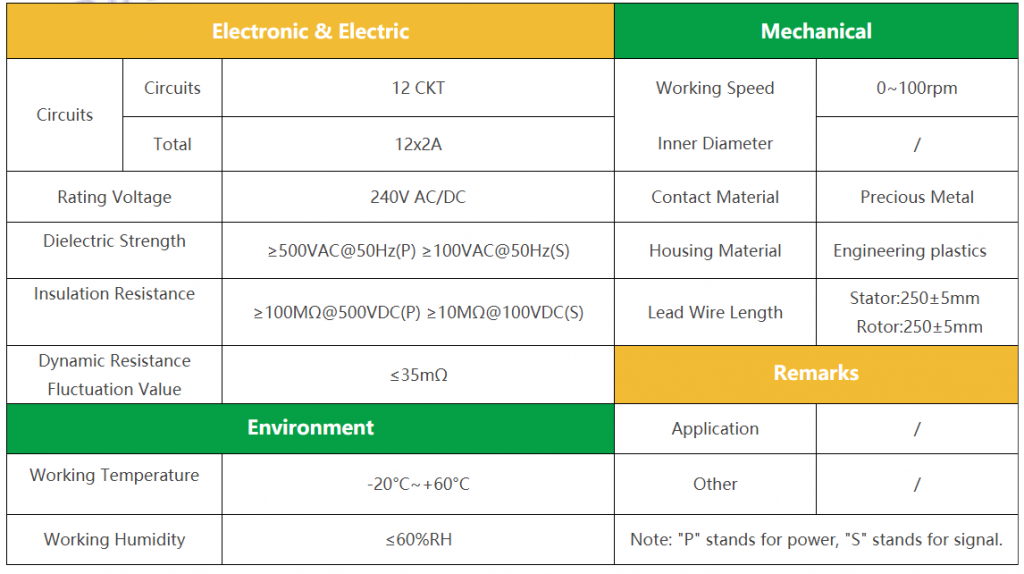

- Number of outputs ：12
- Operating current ：12×2A
- Isolation resistance :≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
- Dielectric strength ：≥500VAC@50Hz(P) ≥100VAC@50Hz(S)
- Operating voltage ：240VAC/DC
- Case material：Engineered plastics
Характеристики модели
Description：
A pneumatic slip ring is a mechanical device used to transfer fluid (under pressure or vacuum) from a fixed inlet to a rotating outlet, maintaining and isolating the fluid connection.
Pneumatic slip rings are designed to withstand a wide range of temperatures and pressures in a variety of conditions and environments. In addition, rotary couplings can integrate multiple channels and handle different fluid types simultaneously.
