Rotary UnionsSlip Rings
LPPL06-04A-3602 Low-torque rotating union

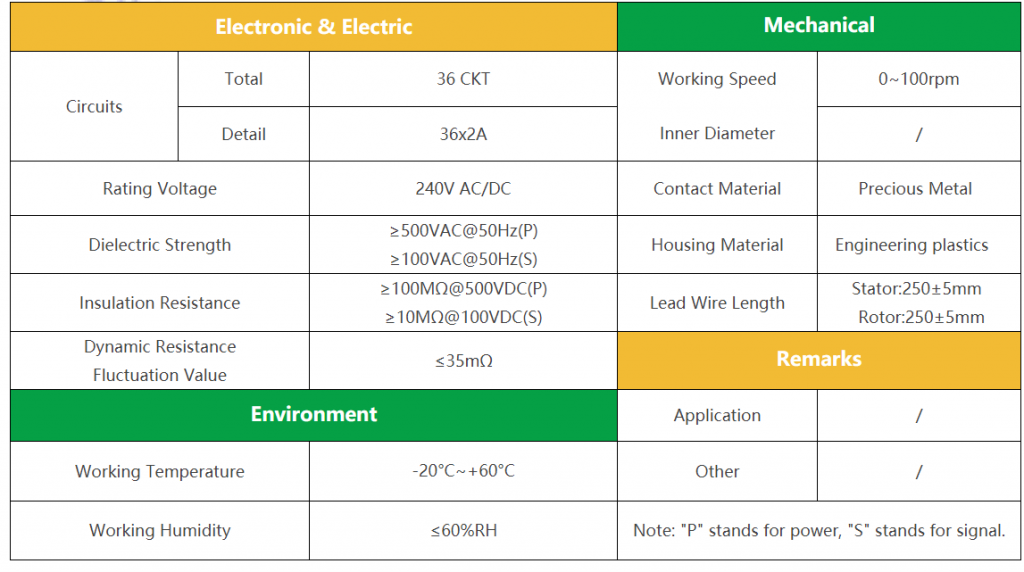

- Количество выходов :36
- Рабочий ток :36×2A
- Сопротивление изоляции :≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
- Диэлектрическая прочность :≥500VAC@50Hz(P) ≥500VAC@50Hz(P)
- Рабочее напряжение :240VAC/DC
Характеристики модели
Description:
A pneumatic slip ring is a mechanical device used to transfer fluid (under pressure or vacuum) from a fixed inlet to a rotating outlet, maintaining and isolating the fluid connection.
Pneumatic slip rings are designed to withstand a wide range of temperatures and pressures in a variety of conditions and environments. In addition, rotary couplings can integrate multiple channels and handle different fluid types simultaneously.
