СТАНДАРТНЫЕ И МОДИФИЦИРОВАННЫЕ контактные кольца

LPPL06-04A-2402 Low-torque rotating union

LPPL06-04A-2402 Low-torque rotating union

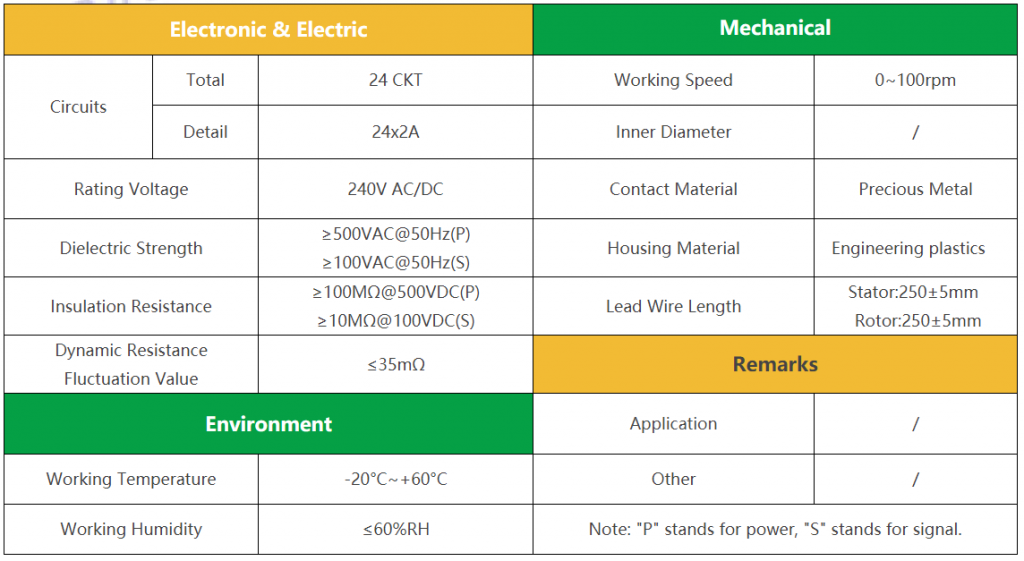

  • Number of outputs:24
  • Operating current :24×2A
  • Insulation resistance :≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
  • Dielectric strength :≥500VAC@50Hz(P) ≥100VAC@50Hz(S)
  • Operating voltage :240VAC/DC
ДОКУМЕНТАЦИЯ СВЯЗАТЬСЯ С НАМИ
Характеристики модели

Description:

A pneumatic slip ring is a mechanical device used to transfer fluid (under pressure or vacuum) from a fixed inlet to a rotating outlet, maintaining and isolating the fluid connection.
Pneumatic slip rings are designed to withstand a wide range of temperatures and pressures in a variety of conditions and environments. In addition, rotary couplings can integrate multiple channels and handle different fluid types simultaneously.
