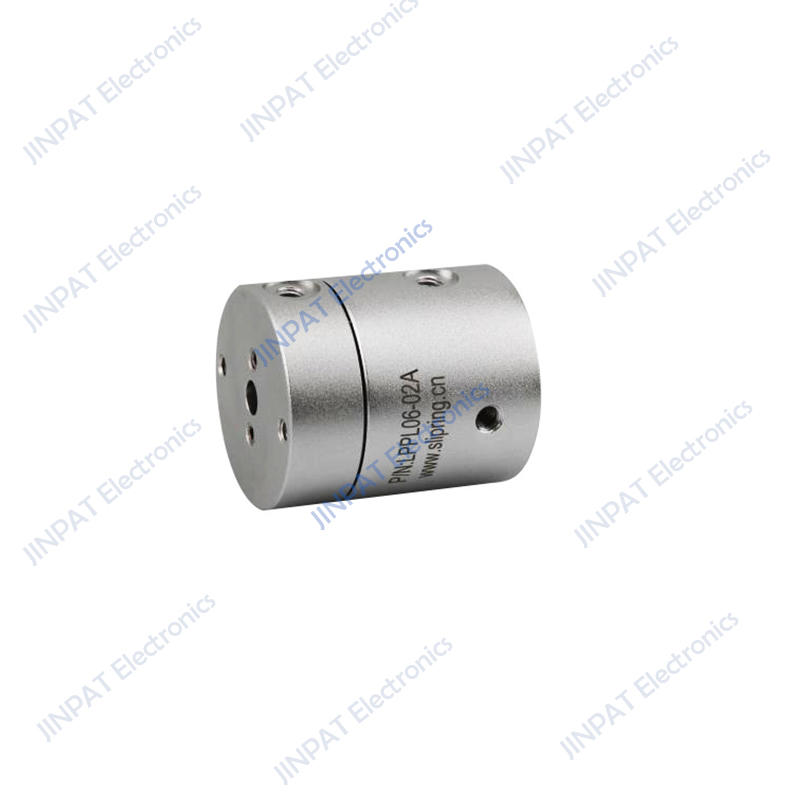

LPPL06-02A-2402 Standard Pneumatic Rotary Unions

LPPL06-02A-2402 Standard Pneumatic Rotary Unions

  • Number of outputs :24
  • Operating current :24×2A
  • Isolation resistance :≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
  • Operating voltage: 240VAC/DC
ДОКУМЕНТАЦИЯ СВЯЗАТЬСЯ С НАМИ
Характеристики модели

Description:

A pneumatic slip ring is a mechanical device used to transfer fluid (under pressure or vacuum) from a fixed inlet to a rotating outlet, maintaining and isolating the fluid connection.
Pneumatic slip rings are designed to withstand a wide range of temperatures and pressures in a variety of conditions and environments. In addition, rotary couplings can integrate multiple channels and handle different fluid types simultaneously.
