JINPAT contact rings for optoelectronic unit
The electro-optical unit is an important part of the electro-optical guidance system used in UAVs, especially military UAVs and aircraft. To enable the detection function, the sensor on the electro-optical module must be able to rotate 360 degrees while receiving data and images. A slip ring must be installed to allow hybrid transmission of different […]
Information
The electro-optical unit is an important part of the electro-optical guidance system used in UAVs, especially military UAVs and aircraft. To enable the detection function, the sensor on the electro-optical module must be able to rotate 360 degrees while receiving data and images. A slip ring must be installed to allow hybrid transmission of different signals between the sensor and the processor.
JINPAT Electronics is a comprehensive slip ring manufacturer. JINPAT Electronics specializes in research and development, design, manufacture and sales of slip rings. JINPAT has established long-term relationships with aircraft and UAV companies and plays an important role in the development of airborne detection systems. Through years of dedication, JINPAT has developed slip rings that serve the electro-optic capsule.

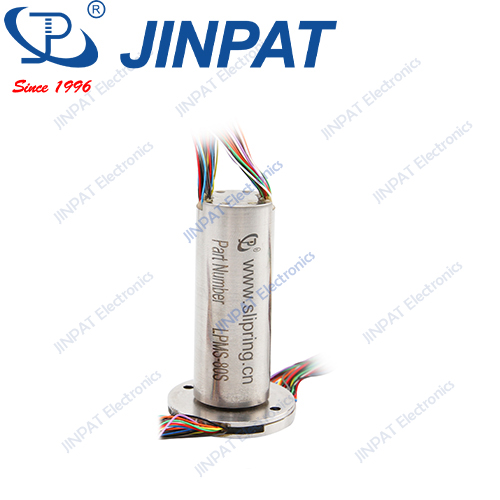

The latest slip ring model for JINPAT photovoltaic cells is LPMS-80S. This slip ring model belongs to the JINPAT super miniature slip ring series. The JINPAT super miniature slip ring is a high precision swivel joint. Due to its exceptionally small size, it can combine up to 80 channels. The channel wires use advanced shielding technology and can therefore guarantee no interference between different signal channels. JINPAT’s low-friction contact rings can rotate very quietly and smoothly. Thus, it meets the strict requirements for stability in the visual axis.
In addition to JINPAT super miniature slip rings, capsule slip rings and fiber optic rotary joints are also a good choice for electro-optical units. And you can also choose hybrid slip ring for power drive enablement and optical signal transmission. There are many slip ring combinations to meet your special needs. So contact JINPAT now!
