LPPL000-16A-4910-4005-84S-FO32-EN Electric Pneumatic Integrated Slip Rings

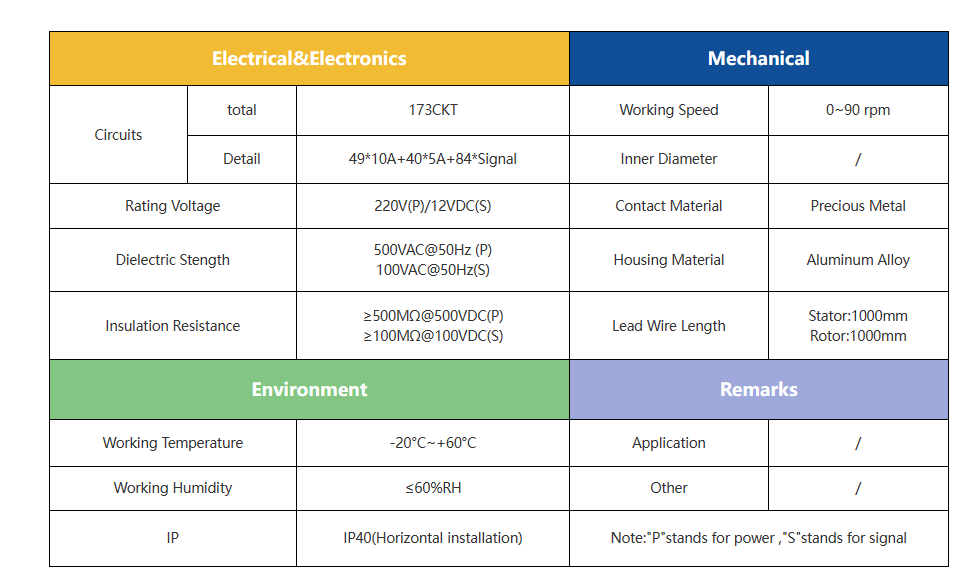

- Количество выходов：173
- Рабочий ток：49*10A+40*5A+84*сигнал
- Сопротивление изоляции：≥500MΩ@500VDC(P) ≥100MΩ@100VDC(S)
- Длина кабеля：Статор:1000mm Ротор:1000mm
- Рабочее напряжение： 220V(P)/12VDC(S)
Характеристики модели
Description:
A pneumatic slip ring is a mechanical device used to transfer fluid (pressurized or vacuum) from a fixed inlet to a rotating outlet, maintaining and isolating the fluid connection.
Pneumatic slip rings are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, rotary unions may integrate multiple passages and handle different types of fluid simultaneously.
