СТАНДАРТНЫЕ И МОДИФИЦИРОВАННЫЕ контактные кольца

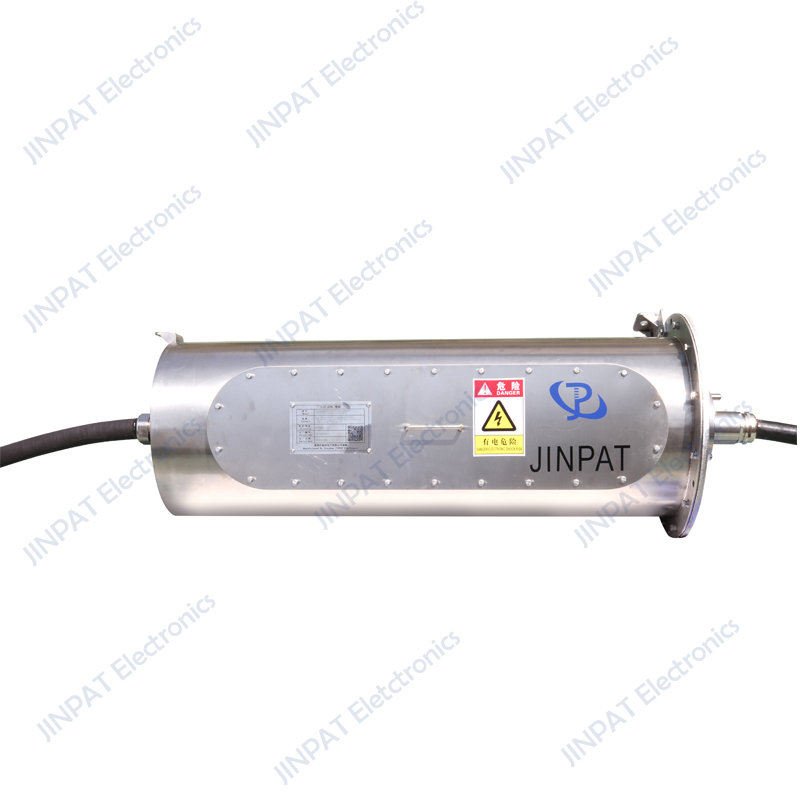

LPA000-034000-01PE-0606-0203-72S-11L-01A-Large Volume Series Slip Rings

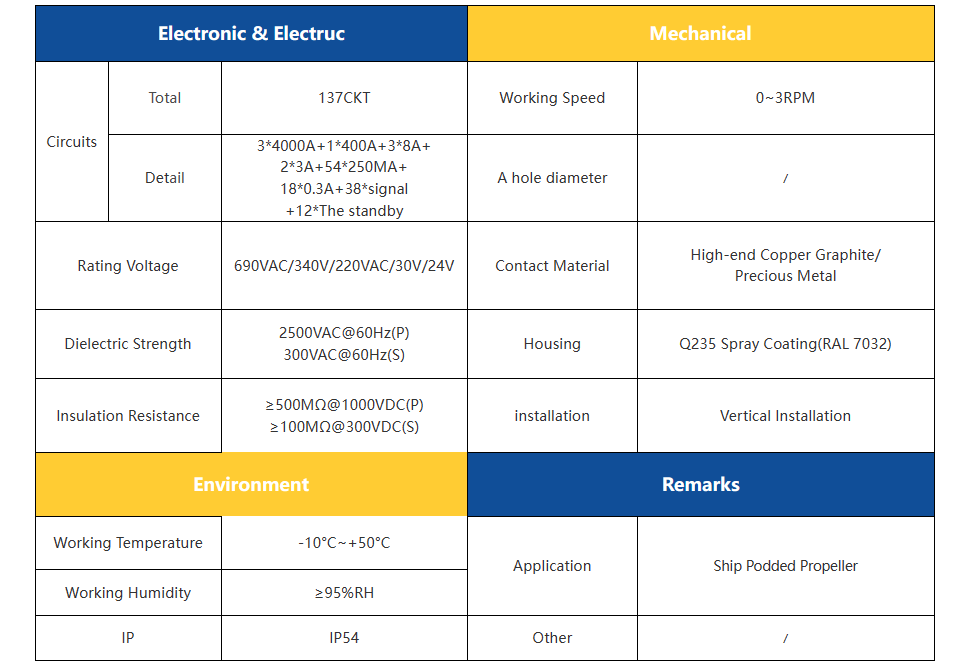

- Цепи:137
- Рабочая скорость:0~3 ОБ/МИН
- Жилье:Q235 Покрытие напылением (RAL 7032)
- установка:Вертикальная установка
- Рабочая влажность:≥95%RH
- Рабочая температура:-10°C~+50°C
JINPAT has many years of experience in supplying standard and Jinpei’s LPA series high current slip rings are designed to meet the high current requirements of some industries. The inter-ring structure is mainly designed as a special hollow frame, which simplifies maintenance and ensures good heat dissipation. The carbon brushes of slip rings are made of high quality imported materials, which have the advantages of high current carrying capacity, low dust, stable operation and high reliability.
Key Features:
1.Main function: high current power rings, low current power rings, signal rings and gas-liquid channels in one integrated solution.
2.Better shielding design based on multiple channels to combat interference between weak electrical signals, including temperature sensor signal and position sensor signal.
3.Gas and liquid pressure: 1 MPa.
4.Against difficult marine corrosive environment.
5.The unique triangular base design is specially applicable for swaying and tilting environments like on ships or vessels.
Humidity and heat test passed and applicable for IEC60068-2-30, vibration test passed and applicable for IEC60068-2-6.
If you have other needs, please contact us, our engineers will provide you with authoritative and professional advice and recommend the most suitable slip ring model or design customized slip rings for you!
