High Current Slip Rings Slip Rings
LPA000-03300-01PE-0350-0210-16S-Large Volume Series Slip Rings

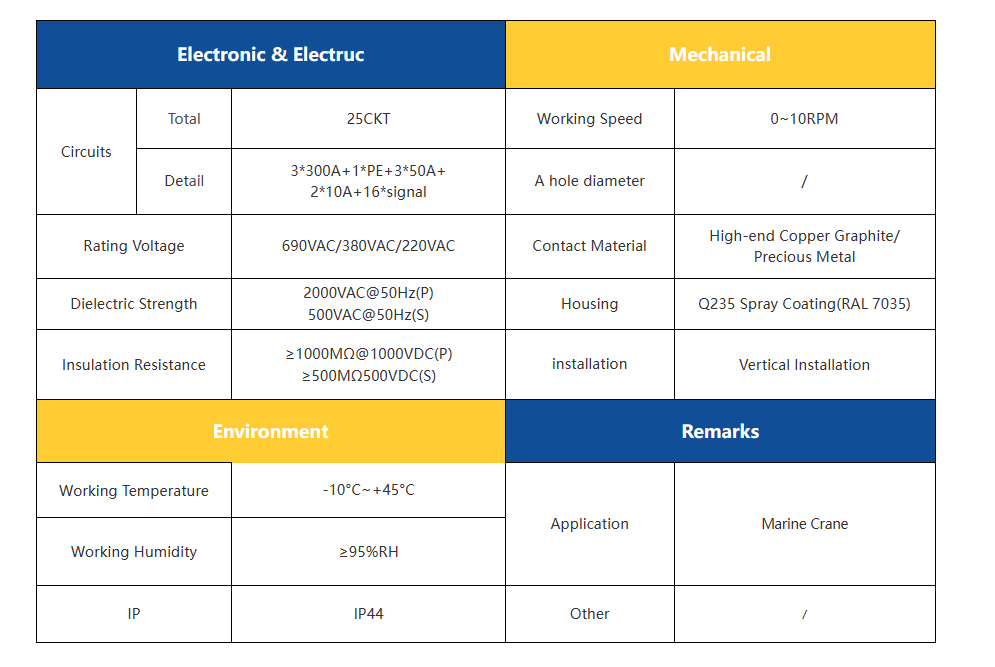

- Number of circuits：25
- signal： 3*300A+1*PE+3*50A+ 2*10A+16*signal
- Insulation resistance：≥1000MΩ@1000VT(C) ≥500MΩ500VT(C)
- Operating speed：0~10RP
- Mounting：Vertical installation
Характеристики модели
This is a marine crane slip ring. Power capacity and channel number are optional.
Can integrate with signal module, pneumatic/hydraulic module and multi-channel fiber optic rotary joints.
Optional protection grading and explosion-proof grading.
