Series LPC-12 Capsule slip ring

Number of outputs ：12
Operating current ：12X2A
Isolation resistance ：≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
Dielectric strength ：≥500VAC@50Hz(P) ≥100VAC@50Hz(S)
Operating voltage ：0~240VAC/DC
Operating speed：0~300rpm
Authorised relative humidity ：≤60%RH

Характеристики модели

LPC-12 series standard medium-sized contact ring, outer diameter 22mm, length 26.4mm, 12-position * 2A, adopts the leading domestic surface treatment process of high military-grade standards, high precision design, compact appearance, easy installation. ◈ Contacts are made of ‘gold to gold’ material to ensure extremely low contact resistance and long service life, which can meet all kinds of environmental protection standards of developed countries and regions such as Europe and the United States, and can be adjusted to ultra-high service life.

◈ Customised contact rings with high speed, long life and high protection are available, which can be integrated with various signals such as Ethernet, USB, RS, LVDS, Canbus, FireWire, SDI, HDMI and so on.

◈ Slip rings are available in various circuits, currents, sizes, speeds, seal types, housing materials, etc. and can be mass produced.

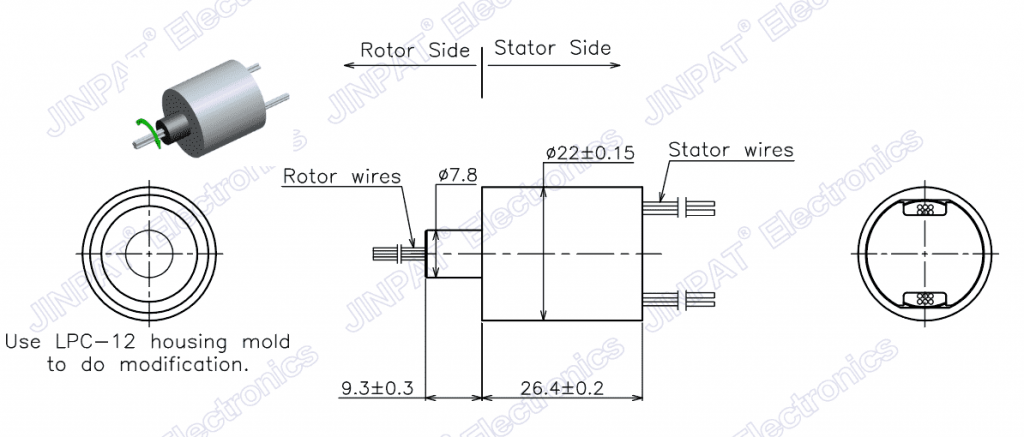

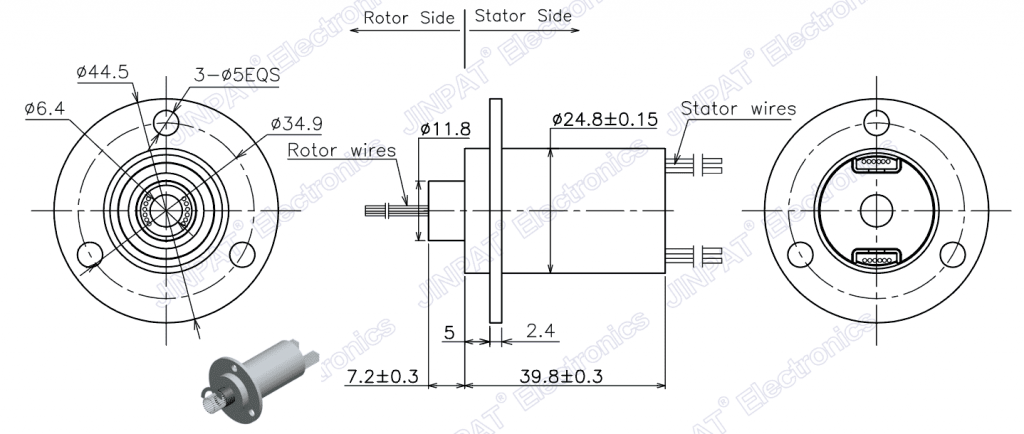

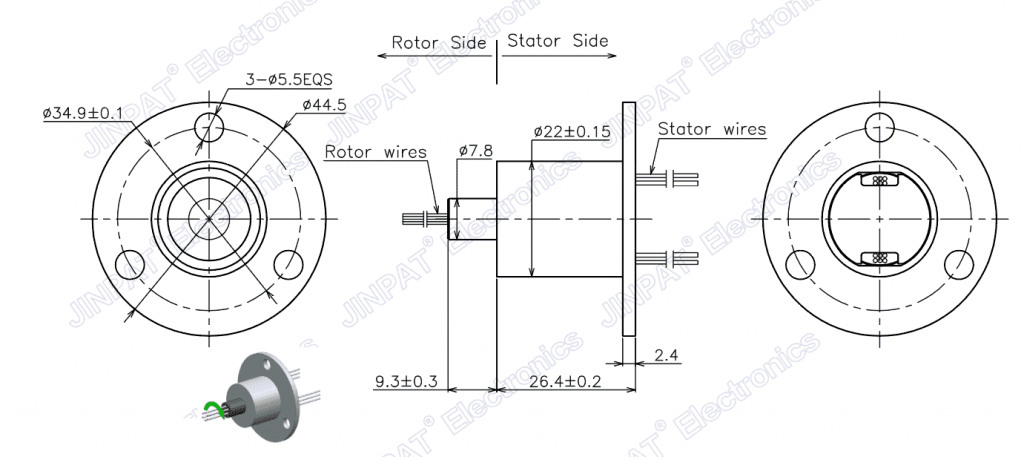

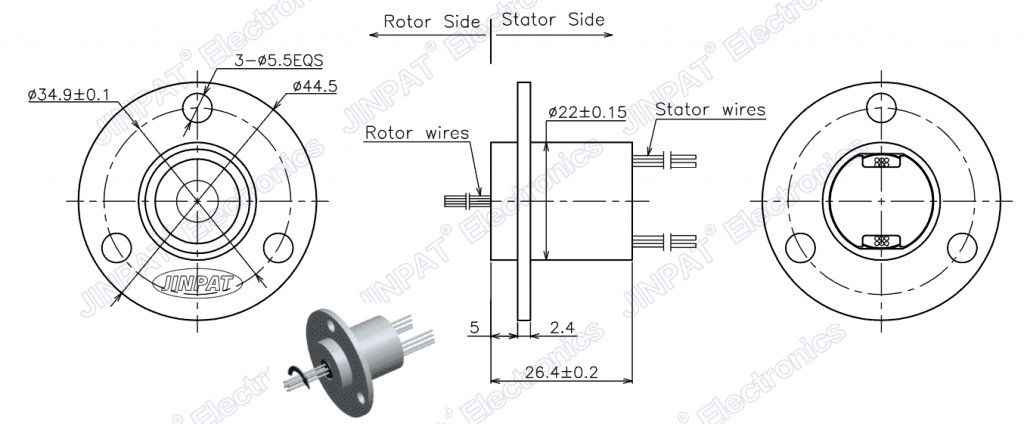

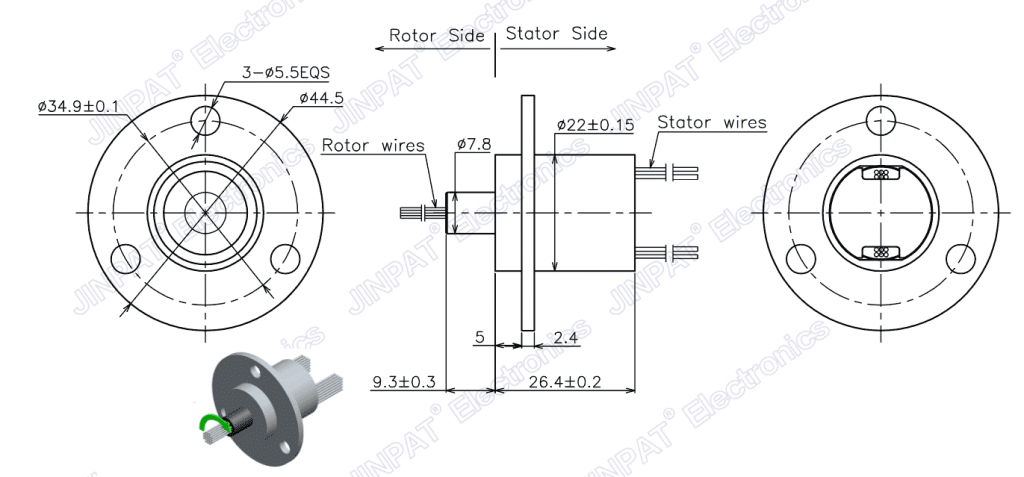

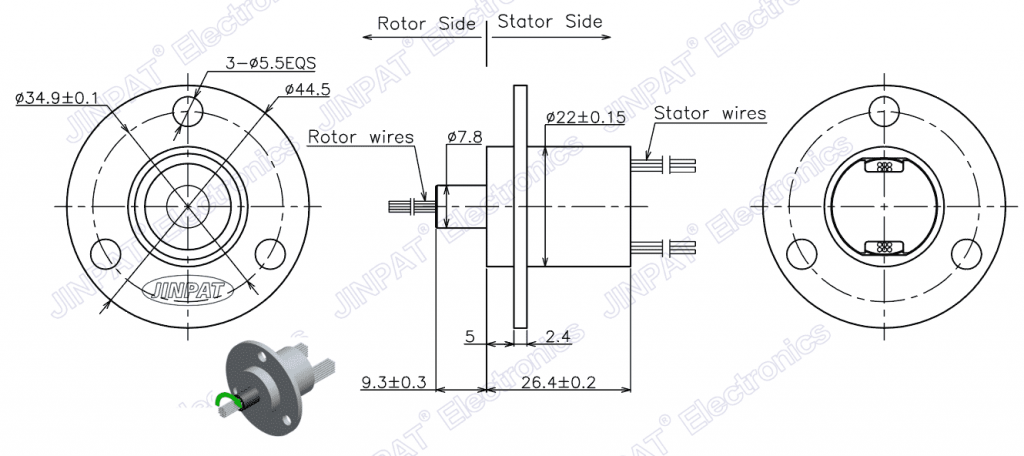

LPC-12 Outline Drawing
