Series LPC-06 Capsule slip rings

Number of outputs ：6
Operating current ：6X2A
Isolation resistance ：≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
Dielectric strength ：≥500VAC@50Hz(P) ≥100VAC@50Hz(S)
Operating voltage ：0~240VAC/DC
Operating speed：0~300rpm
Authorised relative humidity ：≤60%RH

Характеристики модели

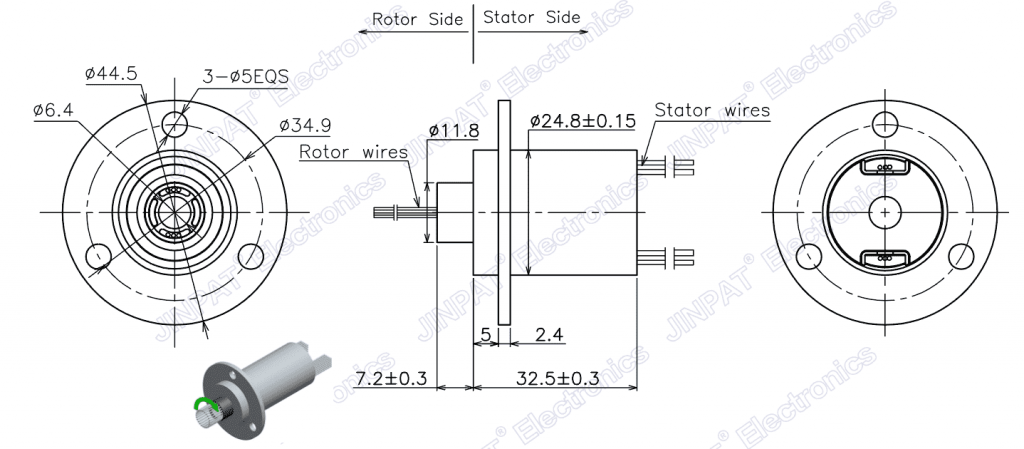

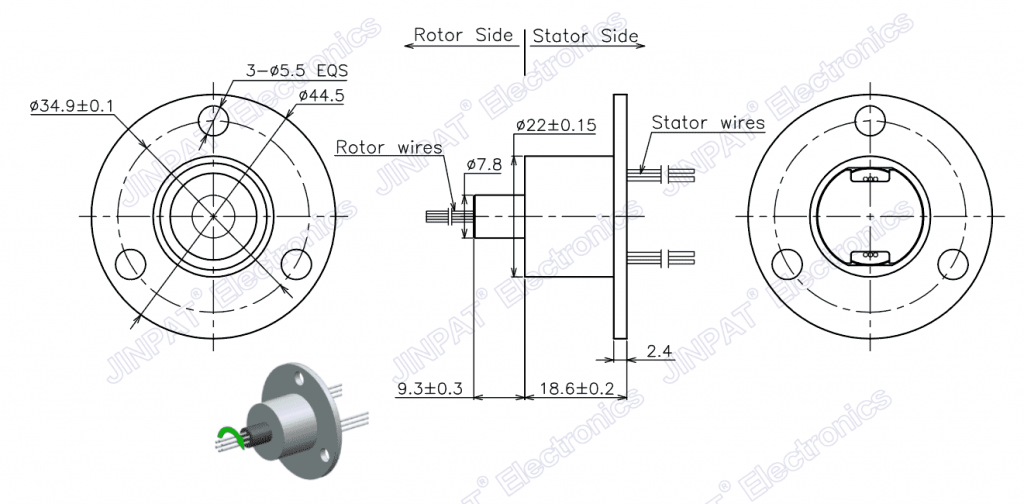

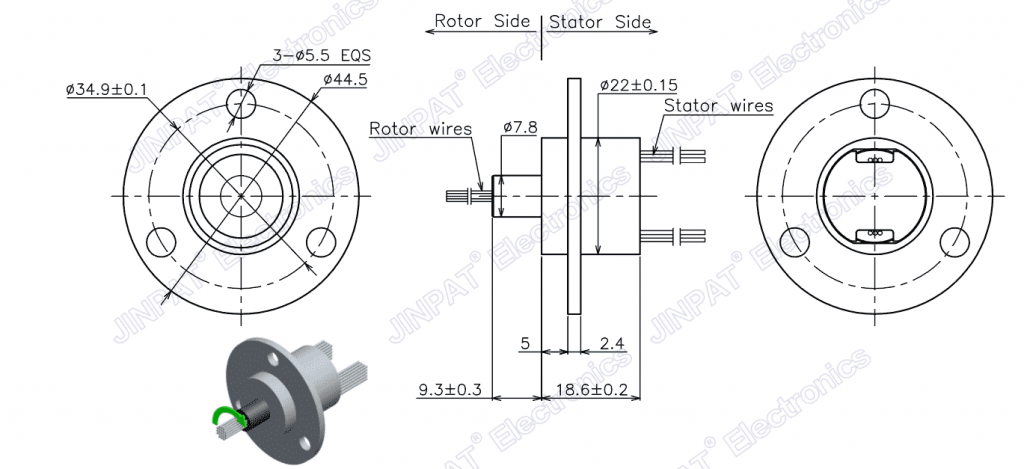

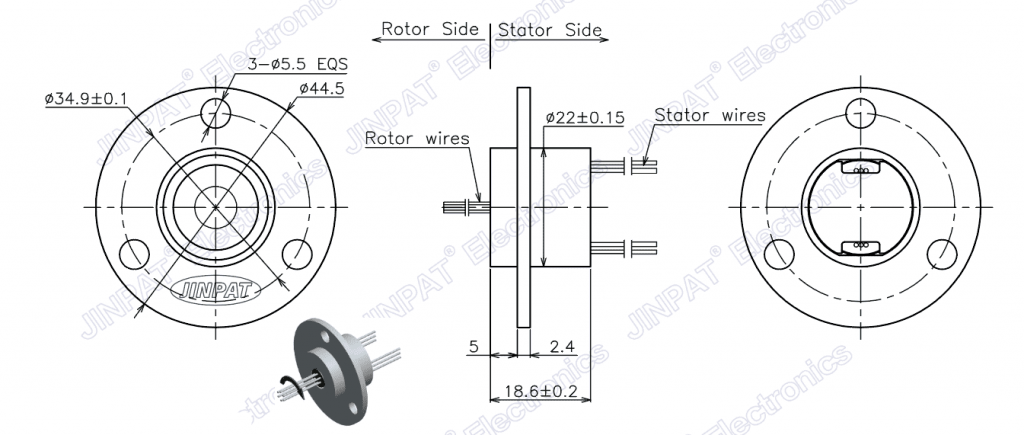

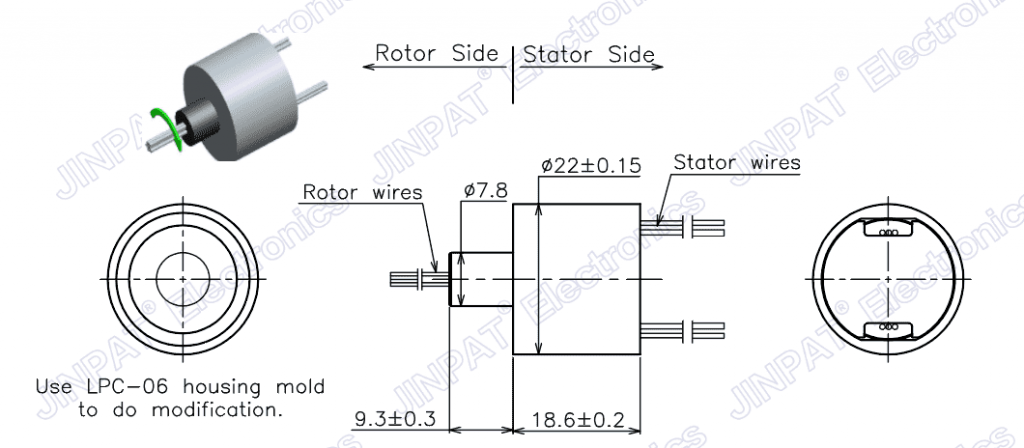

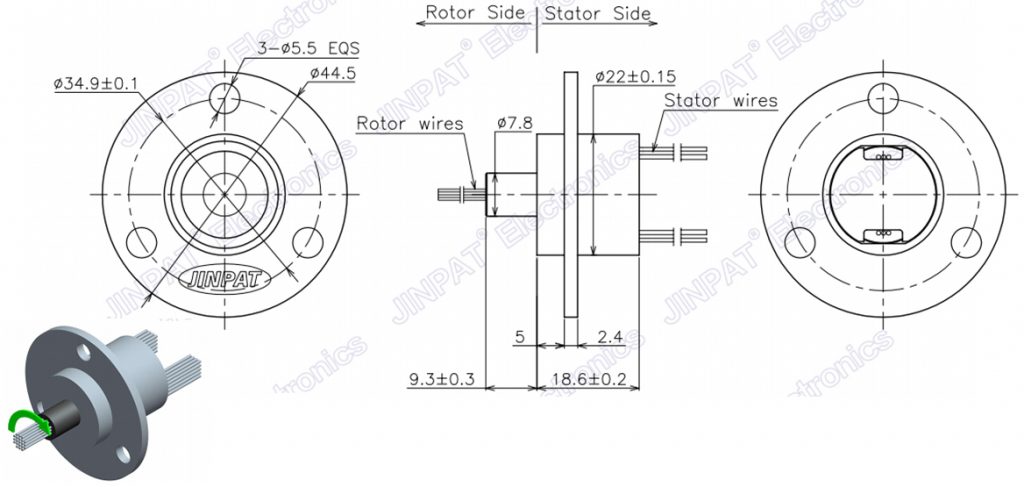

IPC-06 series standard medium size cap slip rings, 22mm outer diameter, 18.6 ~ 32.5mm length, 6-position * 2A, utilising the leading domestic surface treatment process of high military grade standards.

High precision design, compact appearance, easy to install. The contacts are made of gold-to-gold material, ensuring extremely low contact resistance and long service life, which can meet the environmental standards of Europe, America and other developed countries and regions.

countries and regions, and can be adapted to meet the various environmental standards of Europe, the United States and other developed countries and regions, and can be adapted to provide ultra-high life expectancy.

◈ Fast-acting, durable and highly protected slip rings can be customised to integrate various signals such as Ethernet, USB, RS, LVDS, Canbus, FireWire, SDI, HDMI and so on.

Features

◆ 2 amps per circuit, 240 VAC/DC

◆ Gold plated contacts provide long life expectancy

◆ Compatible with data bus protocols

◆ Sealed units available

◆ Flexible silver-plated, colour-coded lead wires

◆ Transmission of analogue and digital signals

◆ Structural flange on housing

◆ 5A and 10A rings are also available in combination with 2 amp rings.

Advantages

◆ Low torque minimises the torque budget of the system

◆ Compact packaging.
