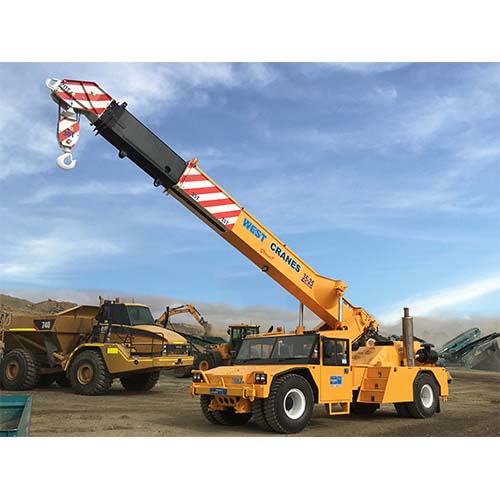

Highly integrated Slip Rings for construction machines
JINPAT Electronics is a professional slip ring supplier founded in 1996. Since then, JINPAT Electronics has been developing slip rings for various applications. Besides commercial industry, slip rings are also installed in many heavy industrial equipment and machinery.To begin with, JINPAT Electronics has produced many heavy-duty integrated slip rings designed for cranes. For example, the […]
Information
JINPAT Electronics is a professional slip ring supplier founded in 1996. Since then, JINPAT Electronics has been developing slip rings for various applications. Besides commercial industry, slip rings are also installed in many heavy industrial equipment and machinery.

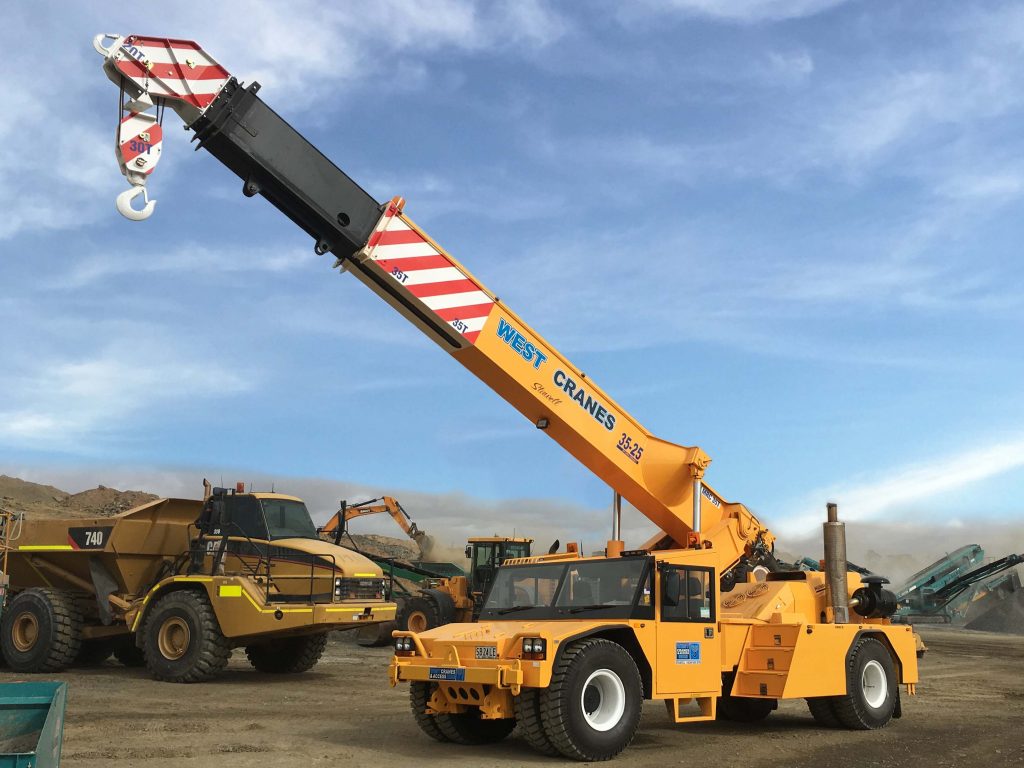

To begin with, JINPAT Electronics has produced many heavy-duty integrated slip rings designed for cranes. For example, the LPT200-0430-0210- 06S is a large current slip ring with a large center through hole. It uses aluminum alloy as the housing. The special construction design and processing technology provide good protection for the internal structure. With IP67 standard, this built-in slip ring is waterproof and can function smoothly even in harsh environment. There are 4 30A power channels, 2 10A power channels and 3 5A power channels, 4 CANBUS channels and 1 throttle signal channel. Sufficient power channels and their bandwidth guarantee a slip ring with excellent rotational drive. In addition, the module design and special insulation layers can guarantee interference-free and stable power and signal transmission.
JINPAT explosion-proof slip rings are also an effective and practical solution for construction machines. Generally speaking, construction machines such as cranes and winches operate in dusty environments. And therefore require slip rings that are explosion-proof and have a higher level of safety. JINPAT LPA 000-05200-01 P E-0563Ex is an explosion-proof slip ring which is used in offshore platform. There are other important features such as high power and integrated gas transmission. This model of slip ring is highly integrated. JINPAT Electronics has the technical skills to produce slip rings with versatile features. JINPAT Electronics can manufacture customized slip ring solutions that transmit signals, power, liquid and gas.
keywords: hybrid slip ring, high power slip ring, explosion-proof slip ring, construction machine, industry, offshore platform
