СТАНДАРТНЫЕ И МОДИФИЦИРОВАННЫЕ контактные кольца

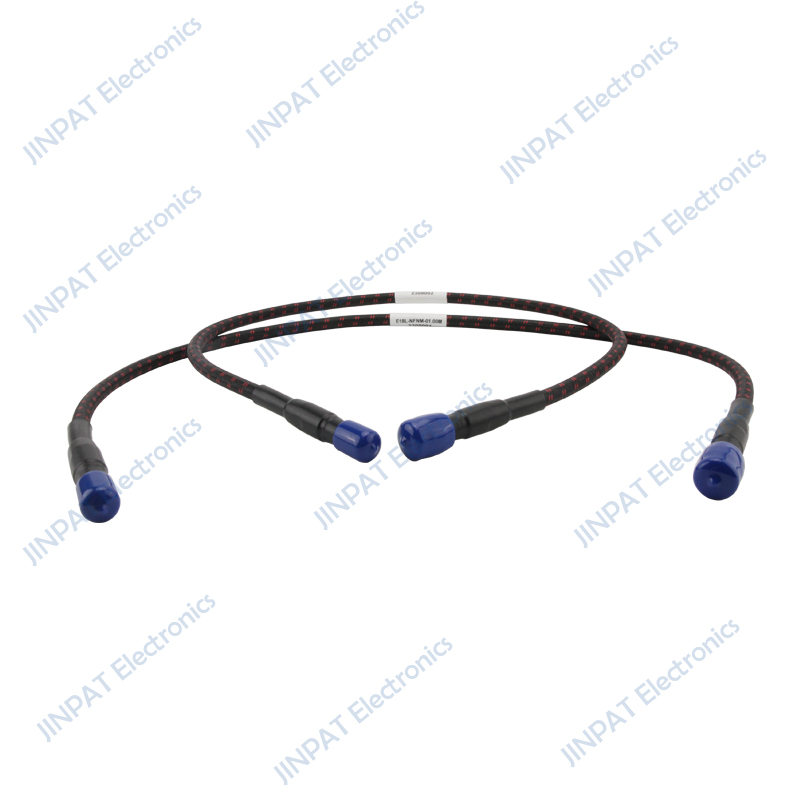

E18L-NFNM-01.00M Typical High Frequency Auxiliaries
- Insertion loss ：0.98dB Frequency range ：DC-18GHz VSWR,max ：1.3

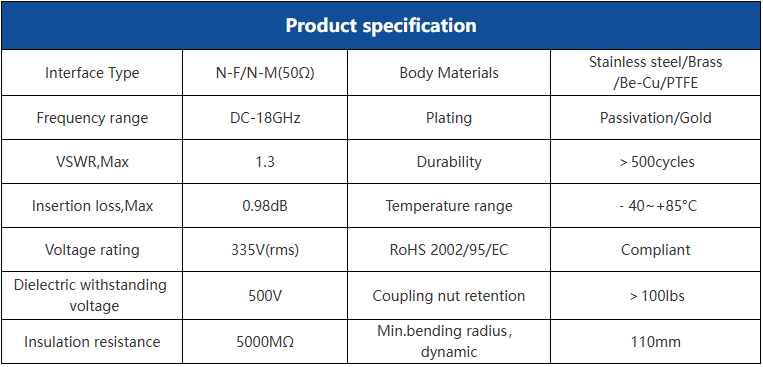

Характеристики модели
High Frequency Phase-stable Low Loss Coaxial Cable Series, High Frequency Cable Auxiliaries and High Frequency Test Cable Auxiliaries are broadly applied in aerospace industry, Electronic countermeasures system(ECM), high frequency anechoic system connection and 5G mobile communication, etc.

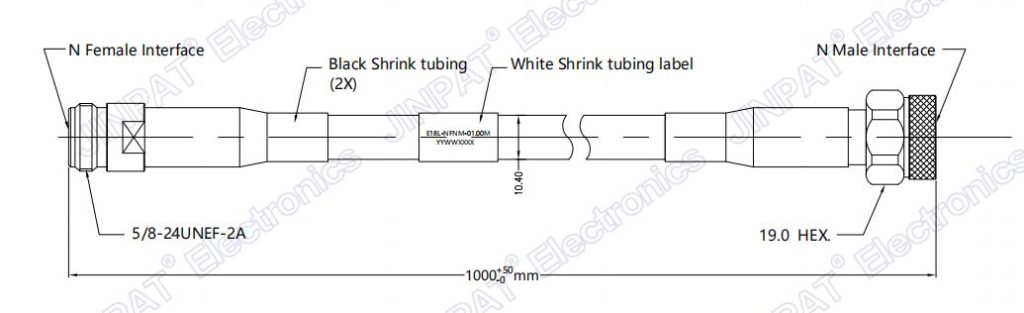

E18L-NFNM-01.00M Outline Drawing
