СТАНДАРТНЫЕ И МОДИФИЦИРОВАННЫЕ контактные кольца
Contact ring with high level of protection

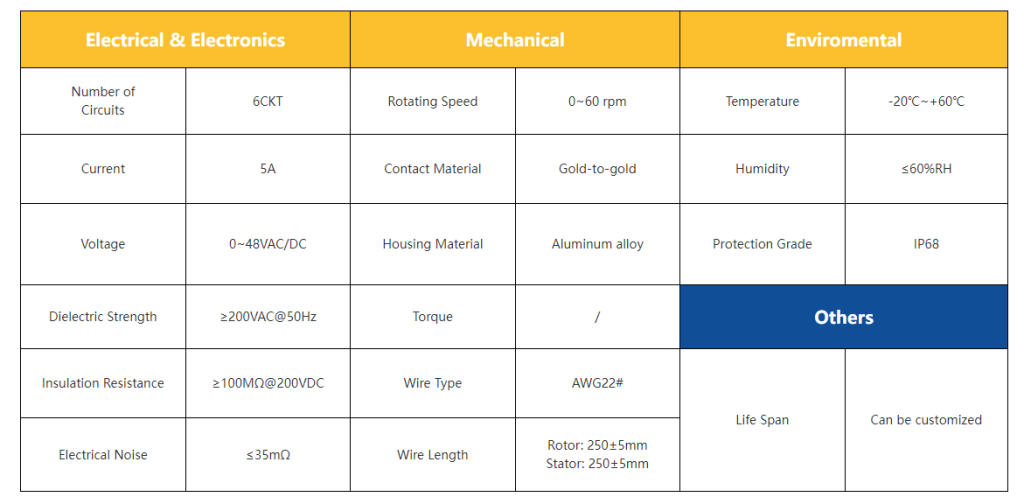

- Number of outputs: 6
- Actual current: 5A
- Isolation resistance: ≥100MΩ@200VDC
- Cable length: rotor: 250 ± 5 mm stator: 250 ± 5 mm
- Operating voltage: 0~48VAC/DC
Характеристики модели
LPC-18A-0605-IP68 -Applications
Ships / Port equipment / Port equipment / Offshore oil platforms / Deep water submersibles / Underwater vehicles
Features
1、High protection class contact ring is specially designed for underwater, high-pressure seabed and various unfavourable operating conditions.
2.High sealing class, the protection class reaches IP68.
3、Stable and reliable
Advantages
1. Provides signal transmission and power transmission.
2.Fully sealed stainless steel construction, professional sealing programme.
3.Capable of long-term operation under water and corrosive environment, the theoretical maximum working depth is more than 300 metres.
