СТАНДАРТНЫЕ И МОДИФИЦИРОВАННЫЕ контактные кольца
Contact ring for rotary tables

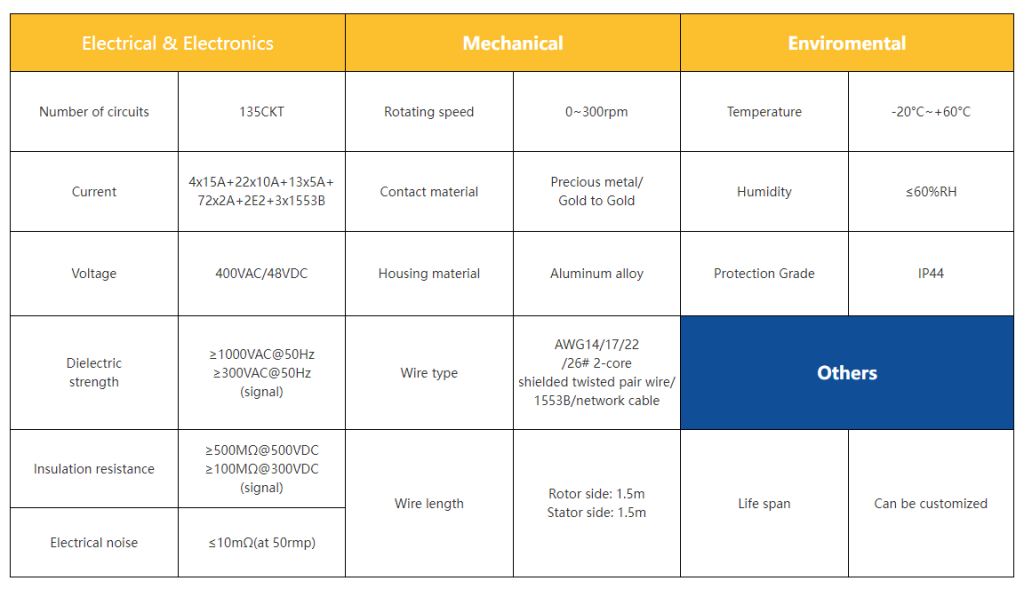

- Number of outputs ：135
- Operating current ：4x15A+22x10A+13x5A+ 72x2A+2E2+3x1553B
- Isolation resistance ：≥500MΩ@500VDC ≥100MΩ@300VDC(signal)
- Dielectric strength ：≥1000VAC@50Hz ≥300VAC@50Hz(signal)
- Operating voltage ：400VAC/48VDC
- Operating speed：0~300rpm
- Authorised relative humidity ：≤60%RH
Характеристики модели
LPT004-073-0415-2210-1305-7202-02E2-03S – Turntables for 2D modelling.
Features
1.Simultaneous transmission of power current and signals
2.Gold contacts are used for signal transmission
- Long service life, maintenance free
- Compact structure, the main shaft is equipped with 4mm gas channel.
Advantages
- Up to 135 channels can be integrated
- Modular design, which guarantees stable product interaction
- Compact structure, small size
- Special soft cords are used
