Construction Machinery-Slip Ring Slip Rings
Contact ring for mobile cranes
- Number of outputs ：12
- Operating current ：4×30A+2×10A+3×5A+4×CAN bus+1×throttle signal
- Isolation resistance ：≥500MΩ@500VDC
- Dielectric strength ：≥500VAC@50Hz
- Operating voltage ：36VDC
- Operating speed：0~100rpm
- Allowable relative humidity ：≤95%RH

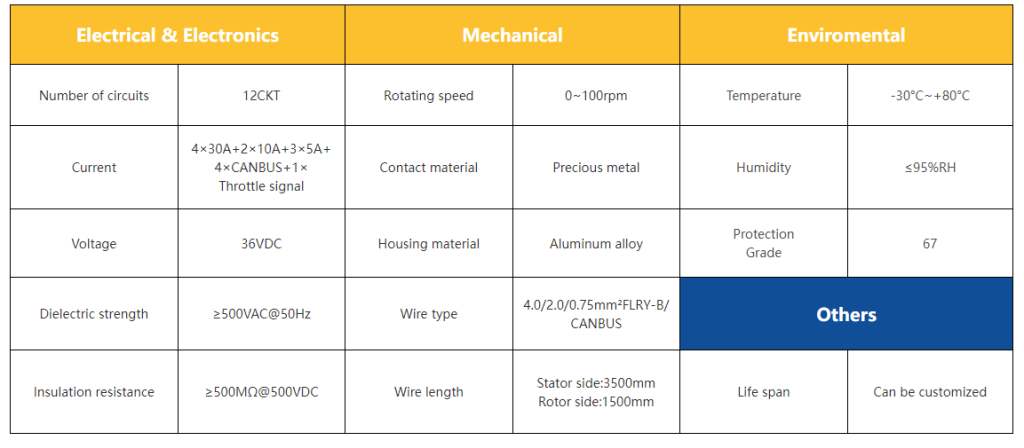

Характеристики модели
LPT200-0430-0210-06S – Truck Cranes with lifting capacity up to 100 tonnes
Features
- simultaneous transmission of power current and signals
- Availability of large size through hole
- Standard installation, protection class IP67
- Maintenance free
Advantages
1.Excellent water resistance, protection class up to IP67, suitable for outdoor use
2.Multiple channels for power flow, general signals, throttle signals, CAN bus signals, etc.
- Satisfies the requirements of crane modules with lifting capacity of 12t – 350t
- Series with large size through-hole, hole diameter 200 mm
