СТАНДАРТНЫЕ И МОДИФИЦИРОВАННЫЕ контактные кольца
Contact ring for floating cranes

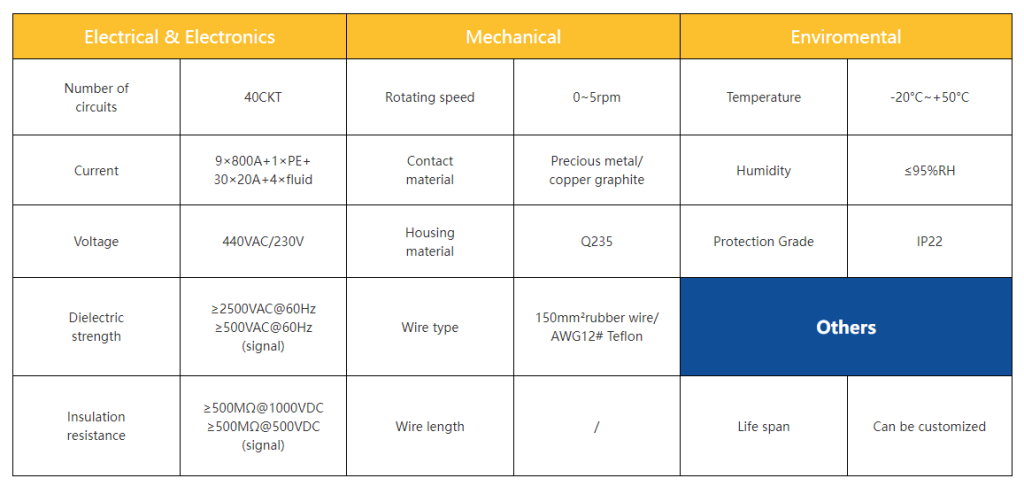

- Number of outputs: 40
- Actual current: 9×800A+1×PE+ 30×20A+4×fluid
- Isolation resistance: ≥500MΩ@1000VDC ≥500MΩ@500VDC (signal)
- Operating voltage: 440VAC/230V
Характеристики модели
LPA000-09800-01PE-3020-04L – Floating cranes Slip rings for high currents
Features
- large size: external configuration 1.31.33M
- Super durability, regular maintenance
- Excellent transmission characteristics, smooth operation, good isolation of hydraulic and pneumatic channels
Advantages
1.Simultaneous rotary transmission of high power current, electrical signals, gases and liquids
- Imported graphite brushes with stable performance characteristics are used
- High temperature rotary connection with large diameter pipe, can withstand high temperatures up to 150°C, pipe diameter is 65mm
