Construction Machinery-Slip Ring Slip Rings
Contact ring for fire engines

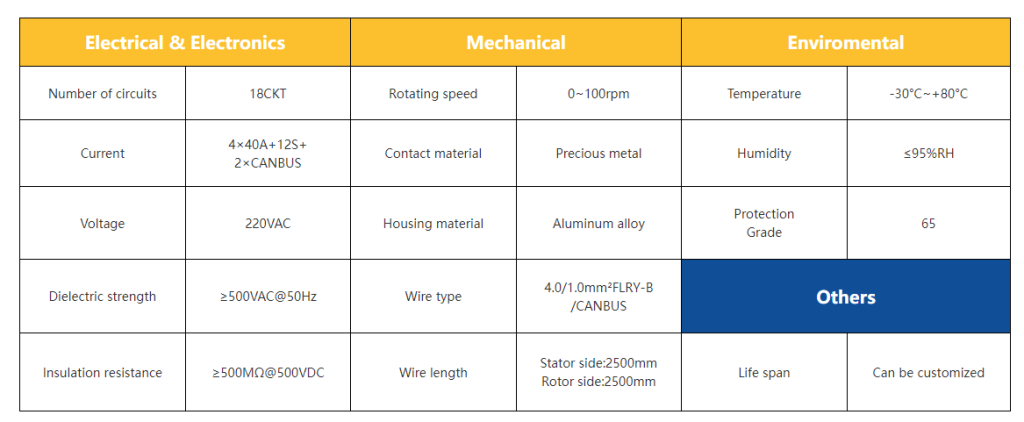

- Number of outputs ：18
- Operating current ：4×40A+12S+ 2×CAN bus
- Isolation resistance ：≥500MΩ@500VDC
- Dielectric strength ：≥500VAC@50Hz
- Operating voltage ：220VAC
- Operating speed：0~100rpm
- Allowable relative humidity ：≤95%RH
Характеристики модели
LPTS000-0440-14S – Fire trucks with long extension ladders
Features
- simultaneous transmission of power current and signals
- Availability of large size through hole
- Standard installation, protection class IP67
- Maintenance free
Advantages
1.Excellent water resistance, protection class up to IP67, suitable for outdoor use
2.Multiple channels for power flow, common signals, CAN bus signals, etc.
