High current Slip RingsSlip Rings
Contact ring for entertainment equipment

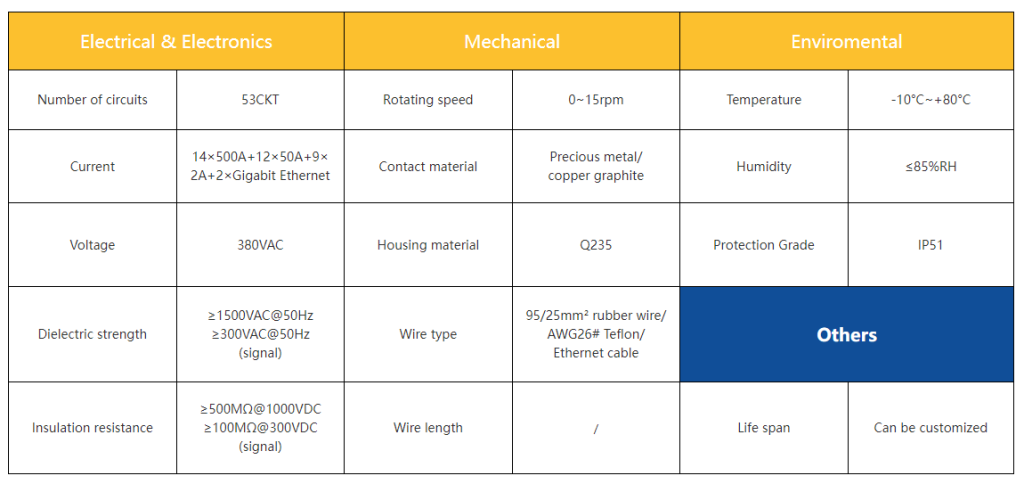

- Number of outputs: 53
- Operating current ：14×500A+12×50A+9× 2A+2×Gigabit Ethernet
- Isolation resistance: ： ≥500MΩ@1000VDC ≥100MΩ@300VDC(signal)
- Operating voltage： 380VAC
Характеристики модели
LPA000-14500-1250-0902-02E3 – Dynamic 5D cinema slip rings for high currents
Features
- Built-in ventilation system provides only a small temperature rise
- Imported graphite brushes are used
- Precise rotation angle, excellent transmission characteristics, smooth and reliable operation
Advantages
- simultaneous rotary transmission of high power current and electrical signals
- Independent modular design eliminates interference
- multi-channel for high power current, external height up to 2.3 m, modular assembly
