Construction Machinery-Slip Ring Slip Rings
Contact ring for cranes

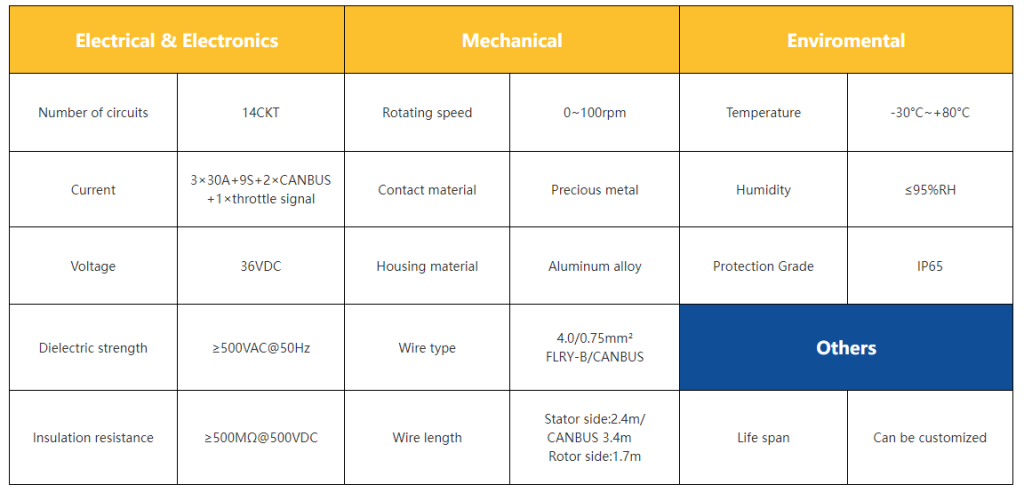

- Number of outputs ：14
- Operating current ：3×30A+9S+2×CAN bus +1×throttle signal
- Isolation resistance ：≥500MΩ@500VDC
- Dielectric strength ：≥500VAC@50Hz
- Operating voltage ：36VDC
- Operating speed：0~100rpm
- Allowable relative humidity ：≤60%RH
Характеристики модели
LPTS000-0330-1105 -25 tonne truck cranes
Features
- simultaneous transmission of power current and signals
- Standard installation, IP67 protection class
- maintenance free
Advantages
1.Excellent watertightness, protection class up to IP67, suitable for outdoor use
2.Multiple channels for power flow, general signals, throttle signals, CAN bus signals, etc. Possibility to integrate encoder
- Meets the requirements of crane modules with lifting capacities from 12 t to 350 t
