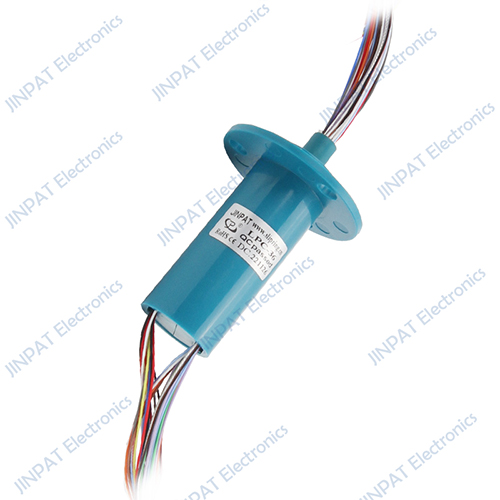

LPC-36 medium-sized standard contact ring, 22mm outer diameter, 57.3 ~68.5mm length, 36 ways * 2A, using China’s leading military-grade high standard surface treatment process, high precision design, compact shape and easy installation. ◈The contacts are made of gold-to-gold material to ensure extremely low contact resistance and long service life, which can meet all kinds of environmental protection standards of developed countries and regions such as Europe and the United States, and can be customised for ultra-high service life.

◈ Customised slip rings with high speed, long life and high protection are available, which can be integrated with various signals such as Ethernet, USB, RS, LVDS, Canbus, FireWire, SDI, HDMI and so on.

◈ Slip rings are available in various circuits, currents, sizes, speeds, seal types, housing materials, etc. and can be mass produced.

LPC-36 Outline Drawing

LPC-36YB Outline Drawing

LPC-36YD Outline Drawing

LPC-36YJ Outline Drawing

LPC-36YT Outline Drawing

LPC-36YU Outline Drawing
