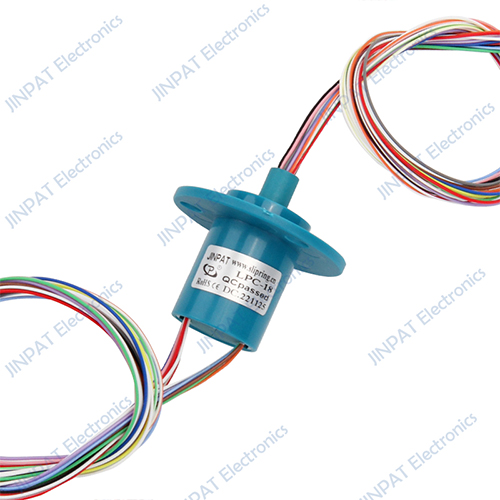

Cap Slip Rings LPC-18 Series

Cap Slip Rings LPC-18 Series

  • Number of outputs :18
  • Operating current :18X2A
  • Operating voltage :0~240VAC/DC
  • Operating speed :0~300rpm
  • Allowable relative humidity :≤60%RH
ДОКУМЕНТАЦИЯ СВЯЗАТЬСЯ С НАМИ
Характеристики модели

LPC-18 medium-sized standard contact ring, 22mm outer diameter, 32.9mm length, 18-position * 2A, adopts China’s leading military-grade high standard surface treatment process, high precision design, compact appearance, easy installation. The contacts are made of gold-to-gold material, which ensures extremely low contact resistance and long service life, which can meet all kinds of environmental protection standards of developed countries and regions such as Europe and the United States, and can be adjusted to ultra-high service life.

◈ Customised slip rings with high speed, long life and high protection are available, which can be integrated with various signals such as Ethernet, USB, RS, LVDS, Canbus, FireWire, SDI, HDMI and so on.

◈ Slip rings are available in various circuits, currents, sizes, speeds, seal types, housing materials, etc. and can be mass produced.

LPC-18 Outline Drawing

LPC-18YB Outline Drawing

LPC-18YD Outline Drawing

LPC-18YJ Outline Drawing

LPC-18YU Outline Drawing
