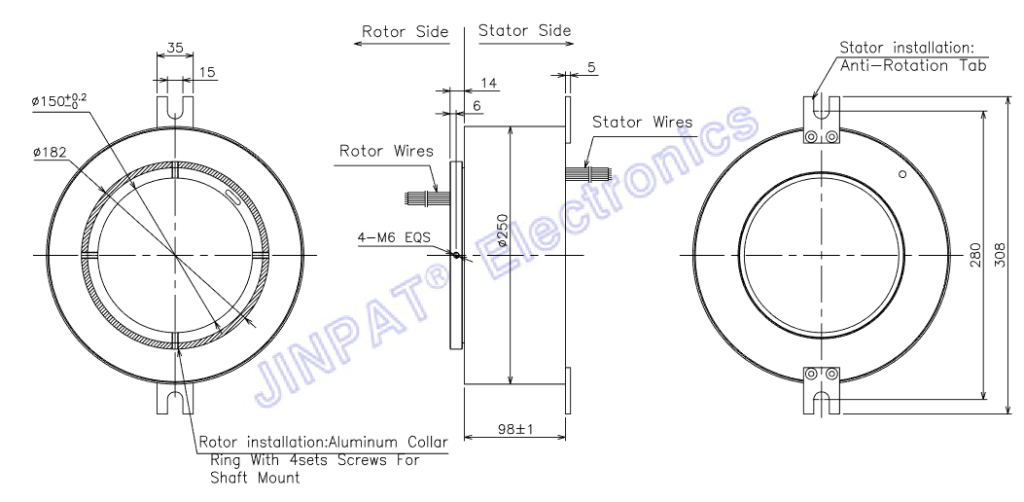

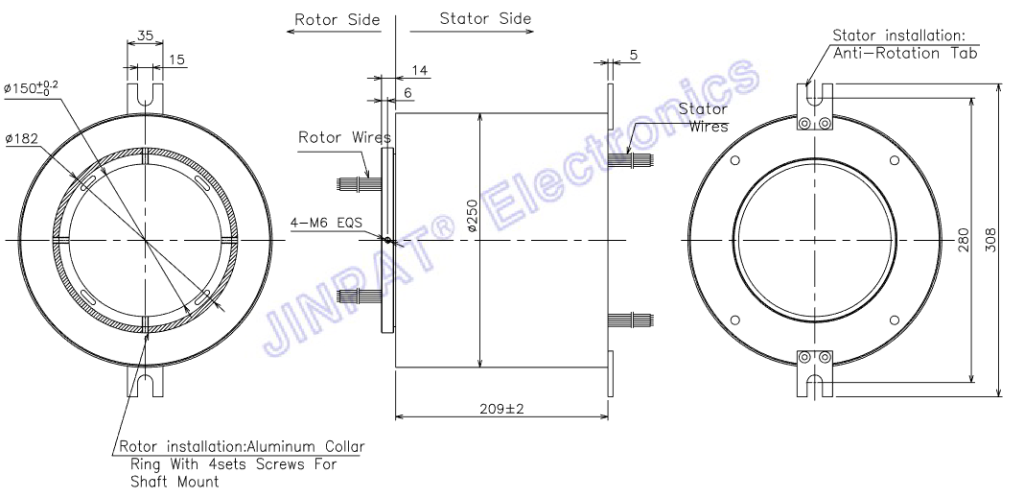

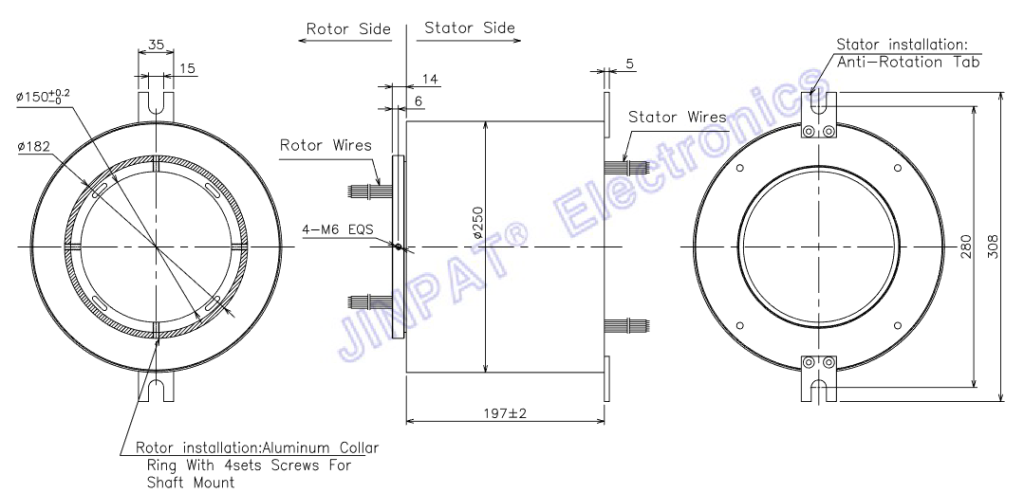

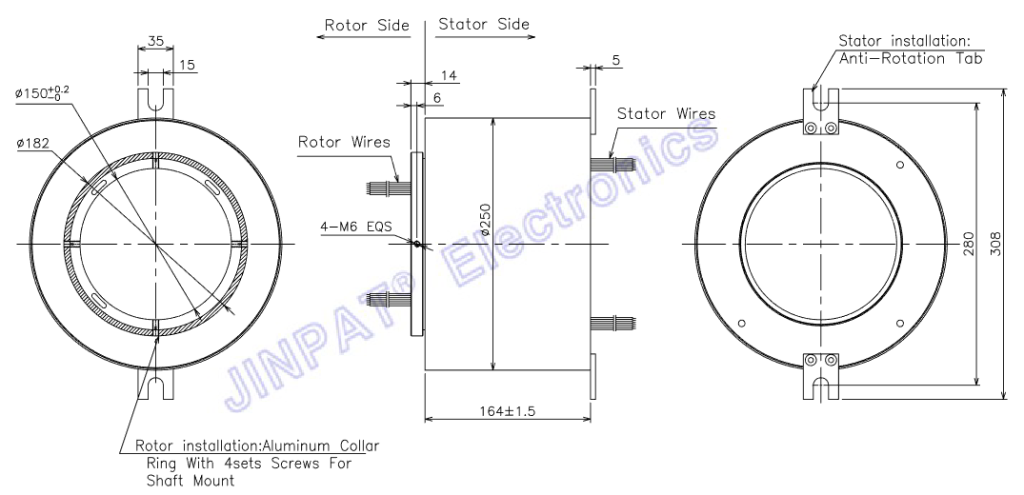

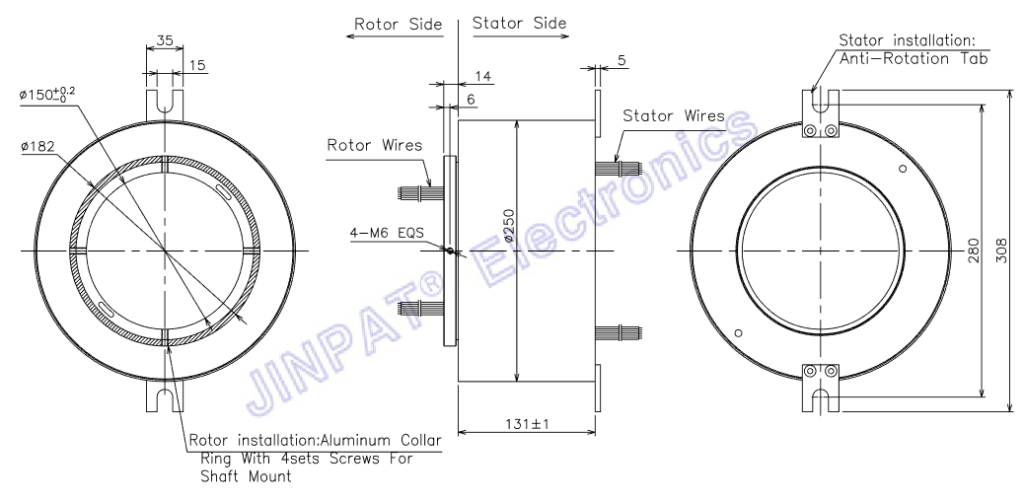

LPT150-Through-bore Slip Rings

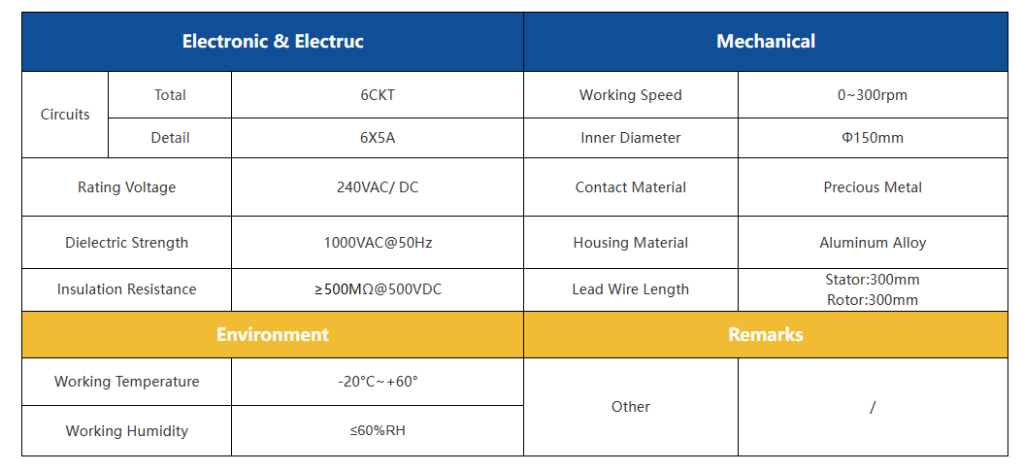

Number of outputs :6
Isolation resistance :≥500MΩ@500VDC
Operating voltage:240VAC/DC
Dielectric strength:1000VAC@50Hz
Inner diameter Φ150mm
Operating temperature:-20°C~+60°C
Operating humidity:≤60%RH
Current lead wire length：Stator:300mm/Rotor:300mm
Working speed:0~300min

Характеристики модели

The LPT series are slip rings with a through-hole (the center hole can pass through the drive shaft, gas-liquid passage; it can also
also integrate high-frequency, fiber optic, encoder, waveguide, gas-liquid, and other connections). The use of an advanced fiber
brush ensures reliable contact with extremely low friction. The center hole is available from 0 to 1000 mm. Current
ranges from mA to 5000 amperes. Voltage can be up to 10000 volts, which can fully meet various transmission needs.

Features:
◎Analog and digital signal transmission
◎ Power and signal are transmitted mixed, and the signal categories are as follows:
◎Ethernet: Speed (10 Mbps/100 Mbps/1000 Mbps)
◎Industrial Ethernet: EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP, etc.
◎HD video: SDI, LVDS, etc.
◎ Serial communication: RS232, RS485, RS422, etc.
◎Universal serial bus: USB2.0
◎Industrial field bus: CANBus, ProfiBus, InterBus, CC-Link, DeviceNet, etc.
◎Sensor signal: thermistor, thermocouple, load cell, etc.
◎Long service life, maintenance free
◎Easy installation
Main applications:
◎Industrial automation equipment/medical equipment/wind power equipment/testing equipment/exhibition /
demonstration equipment/robots/rotating equipment/entertainment equipment/high speed railroad equipment/packaging equipment/packaging equipment.
packaging equipment/maritime vessel equipment/construction equipment
