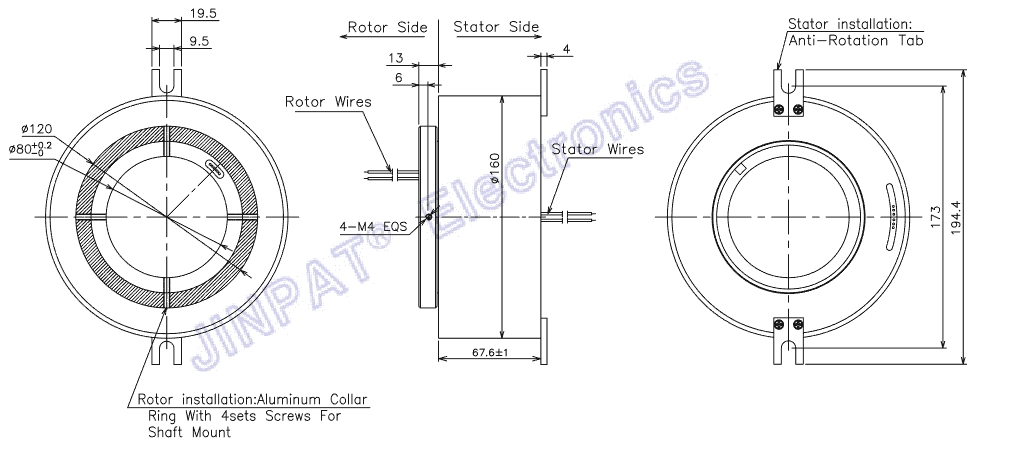

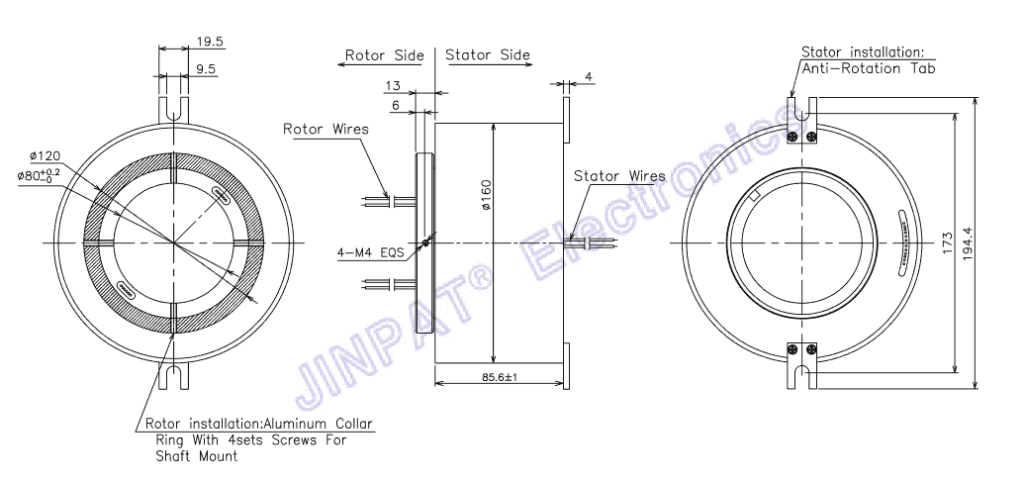

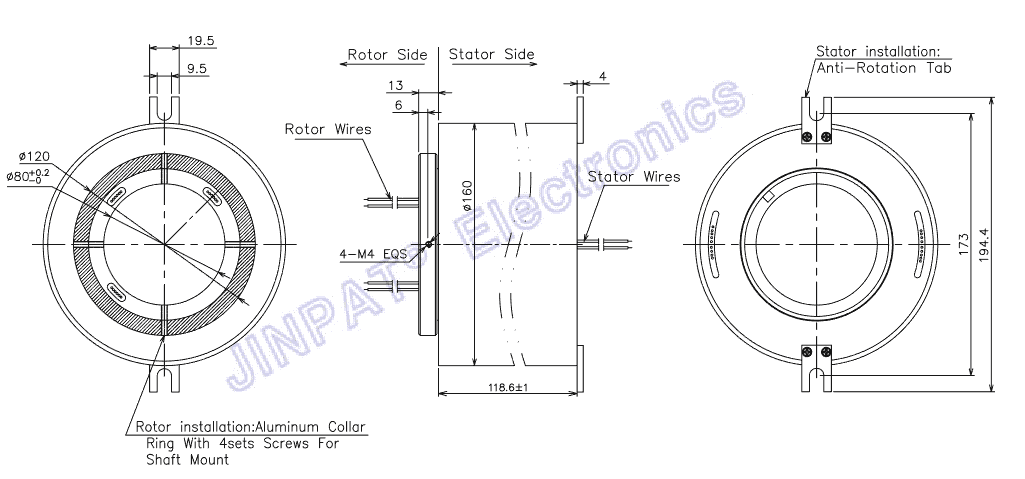

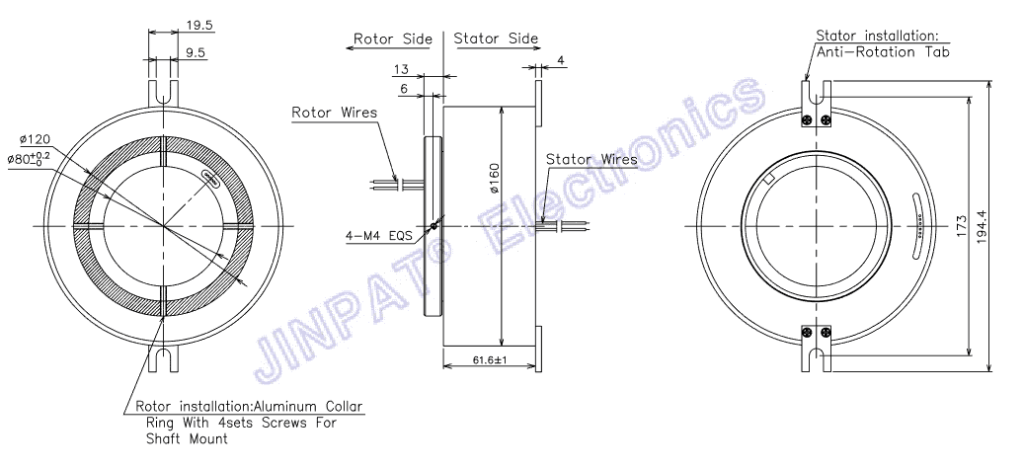

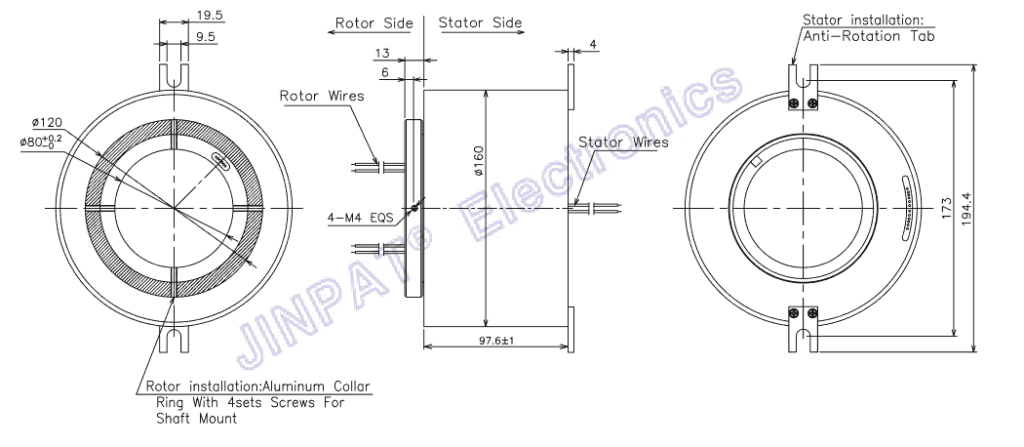

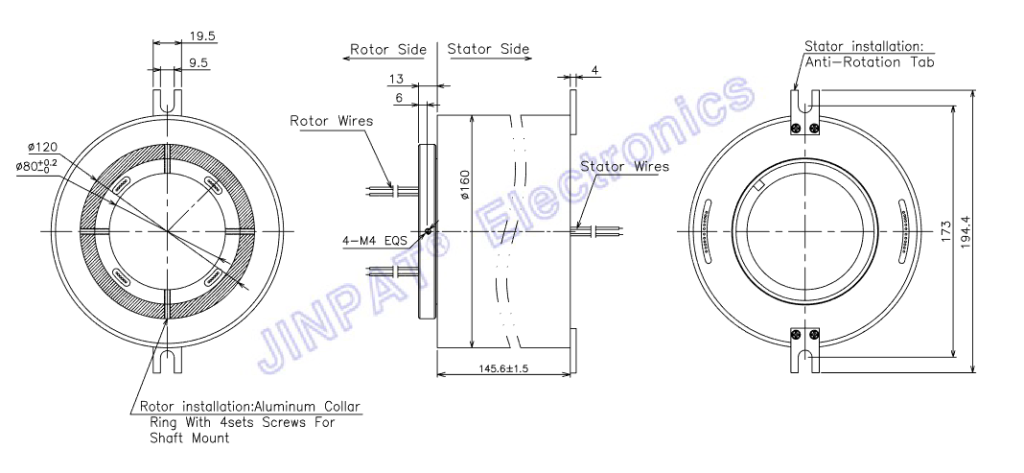

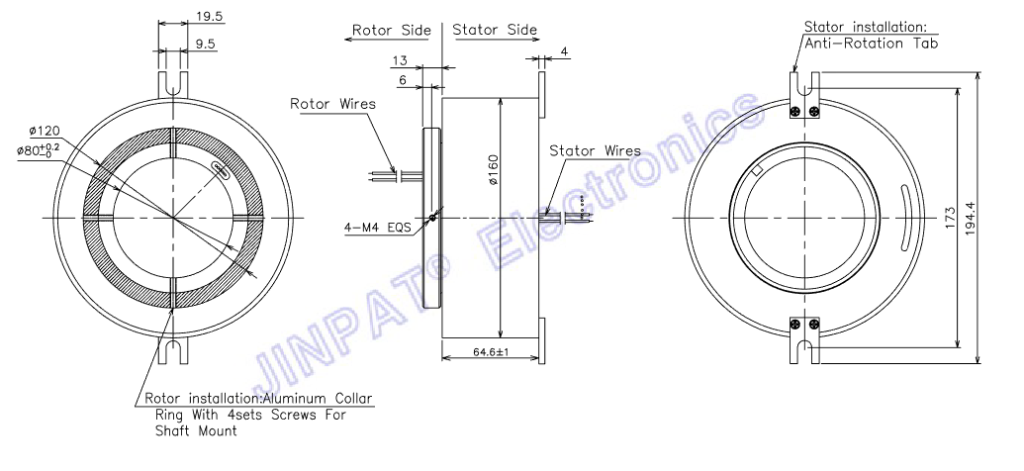

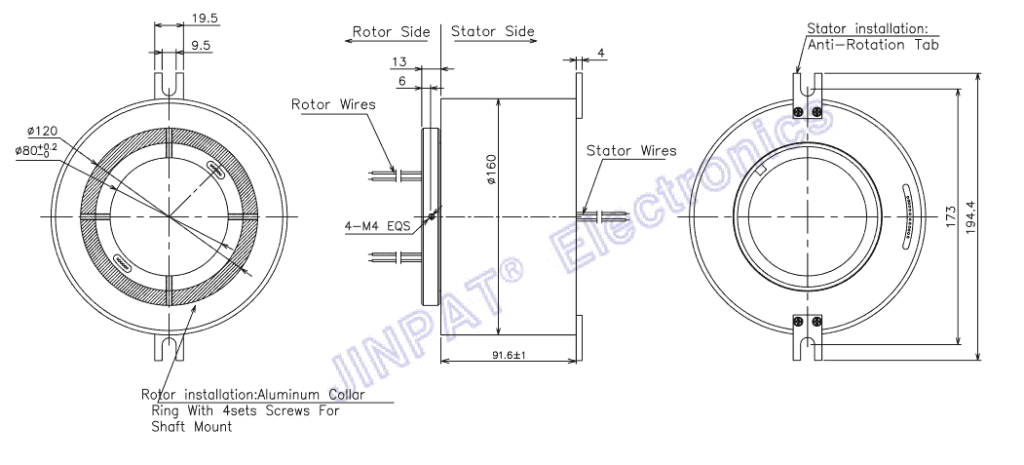

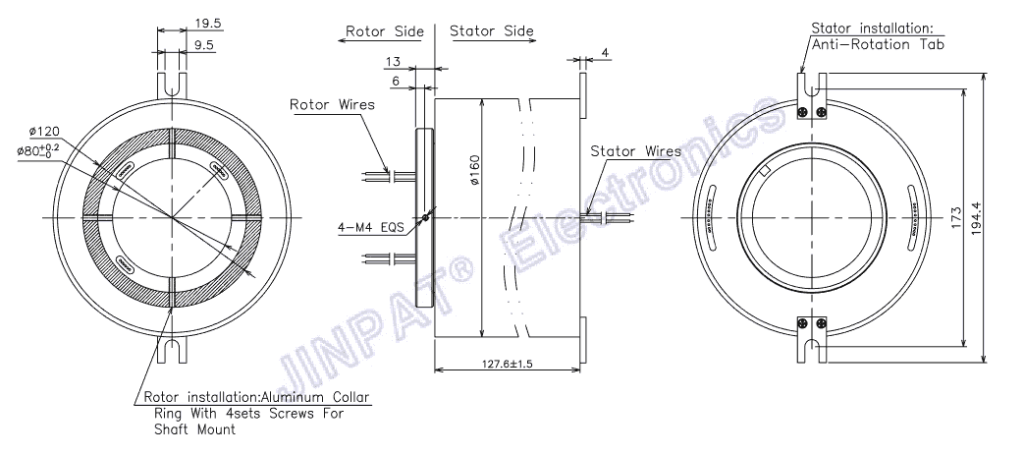

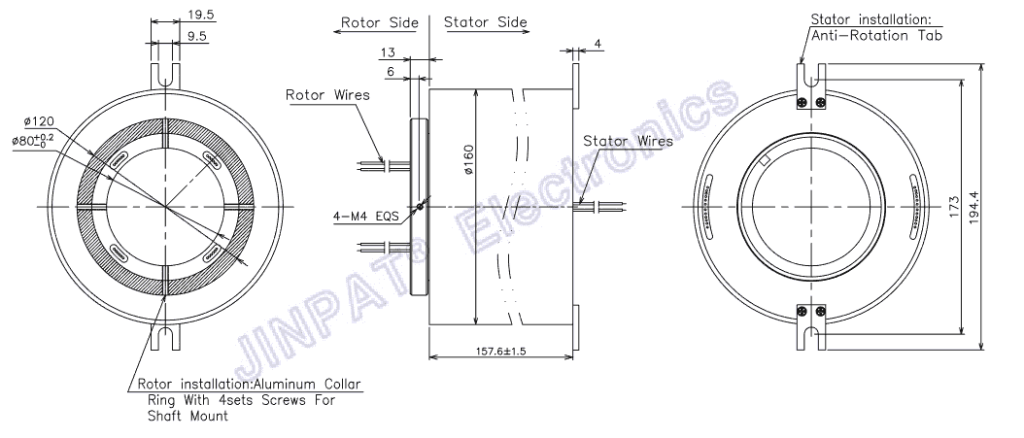

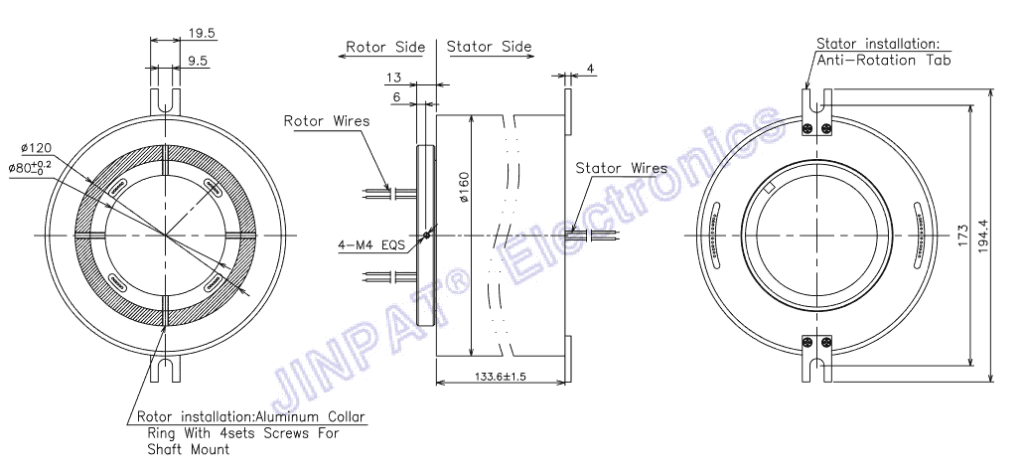

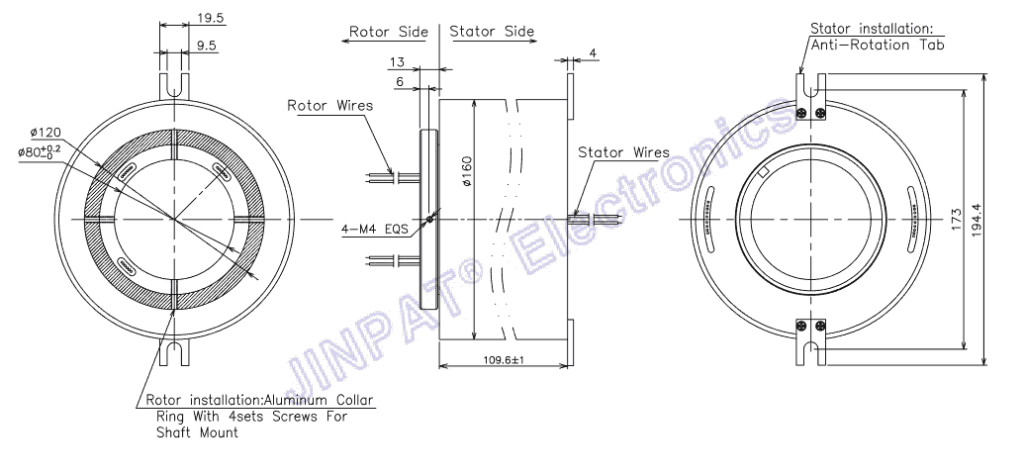

LPT-080 Series Through Bore Slip Rings

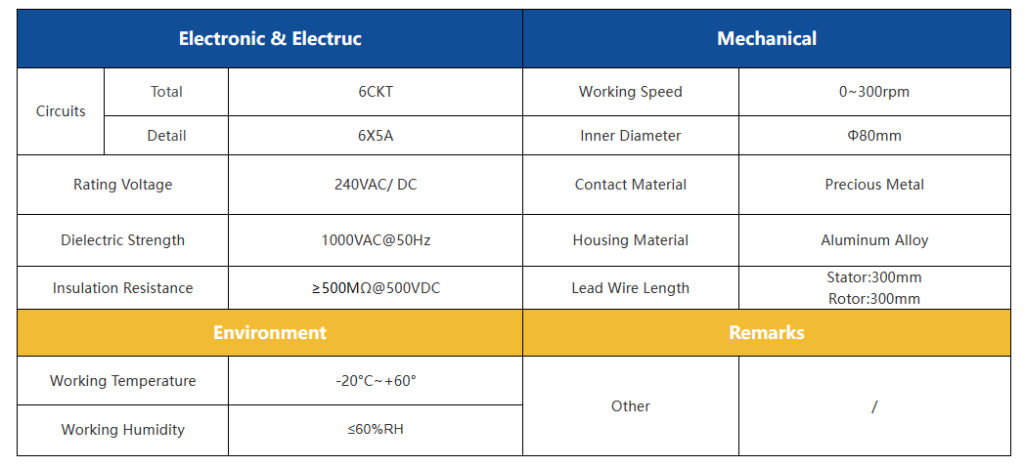

Number of outputs :6
Isolation resistance :≥500MΩ@500VDC
Operating voltage:240VAC/DC
Dielectric strength:1000VAC@50Hz
Inner diameter Φ80mm
Operating temperature:-20°C~+60°C
Operating humidity:≤60%RH
Current lead wire length：Stator:300mm/Rotor:300mm
Working speed:0~300min

Характеристики модели

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation when transferring power and/or data from a fixed to a rotating structure. A slip ring is also referred to as a rotary electrical interface, manifold, pivot, or swivel joint. A slip ring can improve system performance by simplifying operations and eliminating damage-hazardous wires hanging from moving connections.An 80-millimeter through hole provides space for routing hydraulics, pneumatics, or for mounting on a concentric shaft.The hole provides space for routing hydraulics, pneumatics, or for mounting on a concentric shaft.

The LPT080 uses fiber brush technology, which has several advantages over conventional slip rings, including multiple contact points per brush bundle, low contact force per fiber, and low contact wear rate. In addition, fiber brushes require no lubrication and produce virtually no debris when worn. LPT080 has field serviceable brush blocks LPT080-2415 through-hole current collector has 24 circuits with 15A routing per circuit.Transmit current and various specific signals at the same time
(Ethernet, USB signal, HDMI signal and so on).

Main applications:
◎Industrial automation equipment/medical equipment/wind power equipment/testing equipment/exhibition /
demonstration equipment/robotics/rotating equipment/entertainment equipment/high speed railroad equipment/packaging equipment.
packaging equipment/maritime vessel equipment/construction equipment
