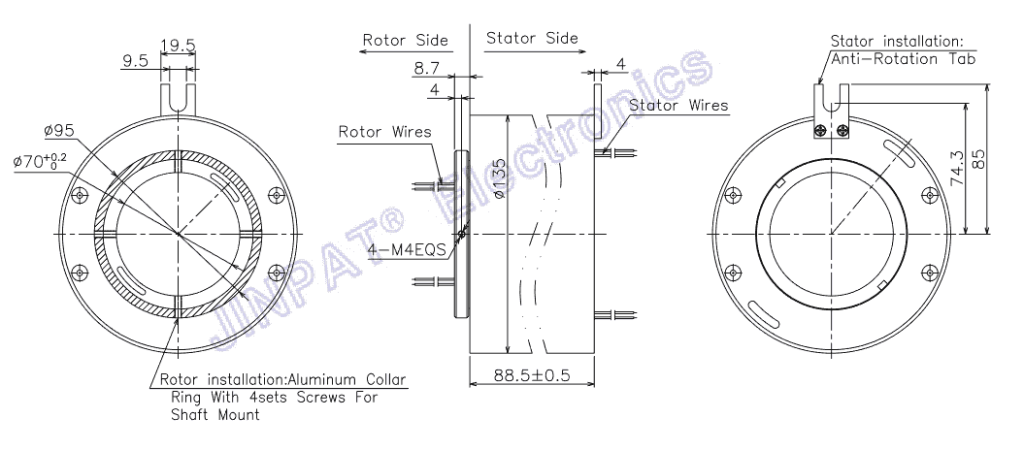

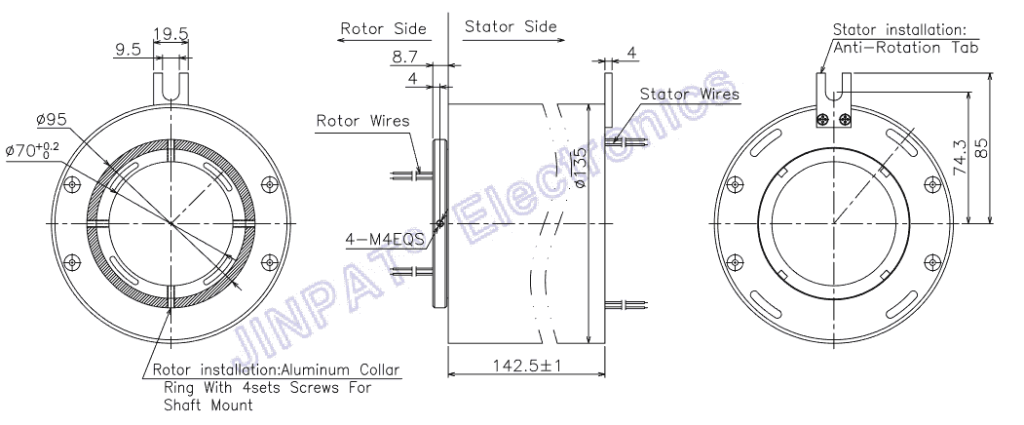

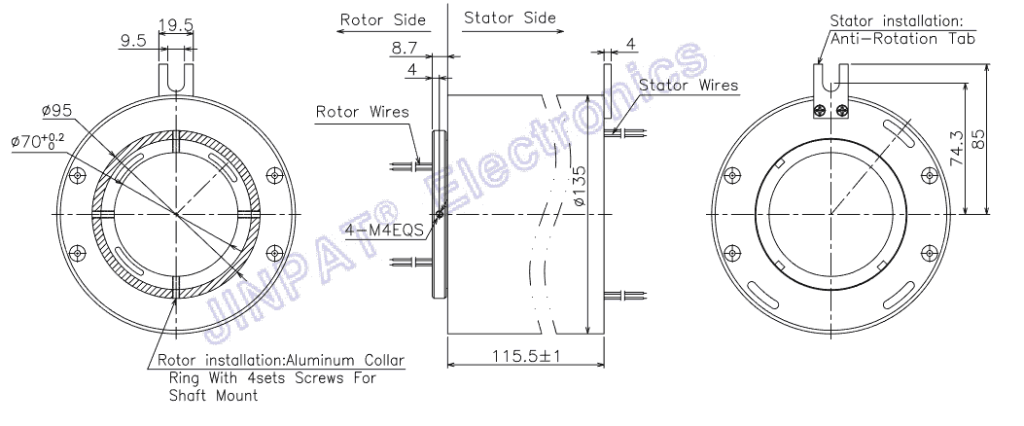

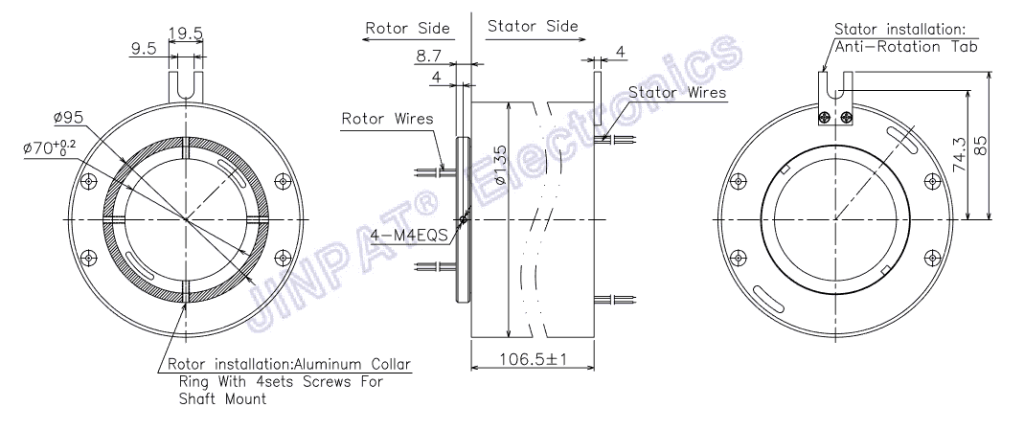

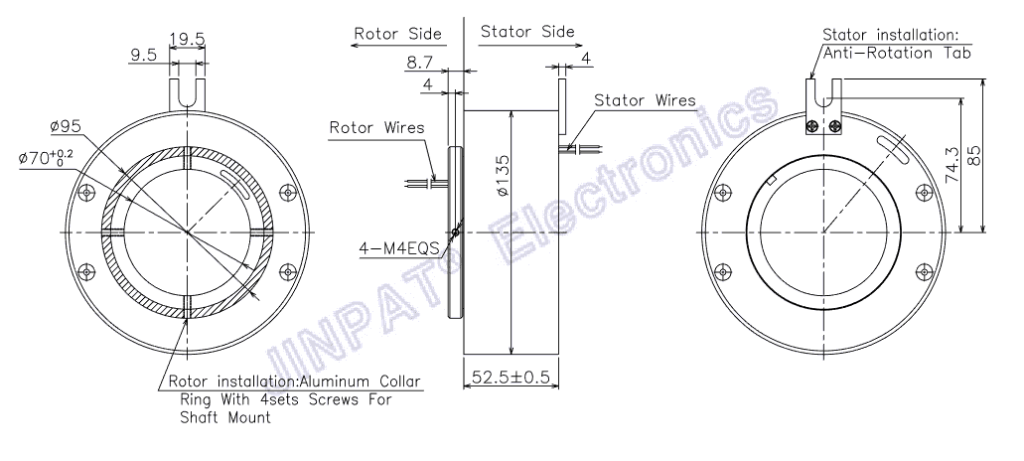

LPT-070 Series Through Bore Slip Rings

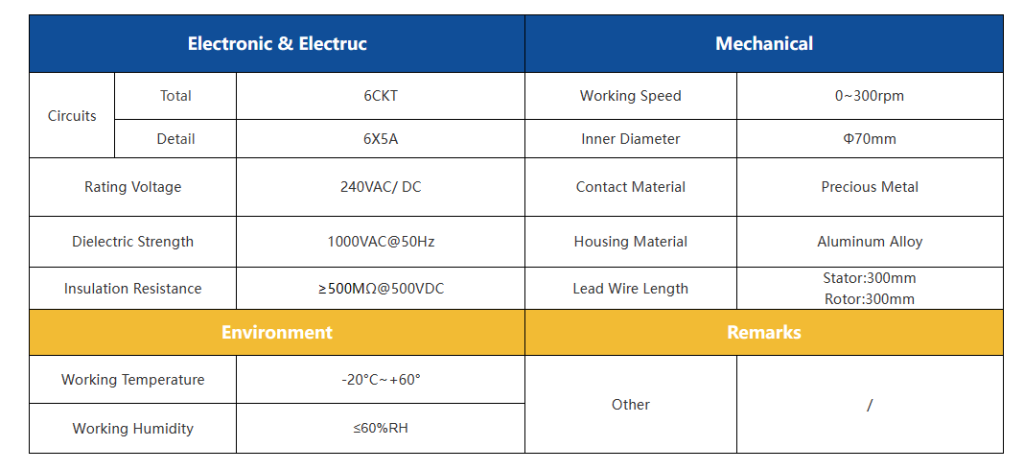

Number of outputs:6
Isolation resistance :≥500MΩ@500VDC
Operating voltage:240VAC/DC
Dielectric strength:1000VAC@50Hz
Inner diameter Φ70mm
Operating temperature:-20°C~+60°C
Operating humidity）:≤60%RH
Current lead wire length：Stator:300mm/Rotor:300mm
Working speed:0~300min

Характеристики модели

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation when transferring power or data from a fixed to a rotating structure. A slip ring is also referred to as a rotary electrical interface, manifold, pivot, or commutator. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires hanging from moving connections.

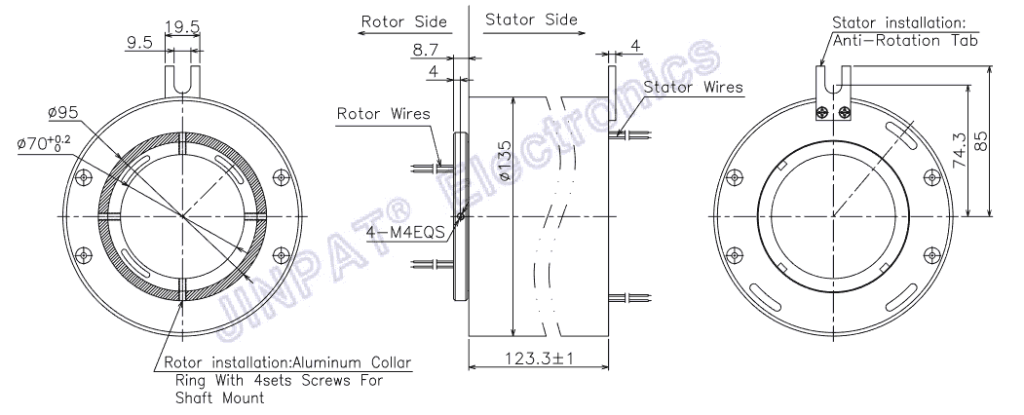

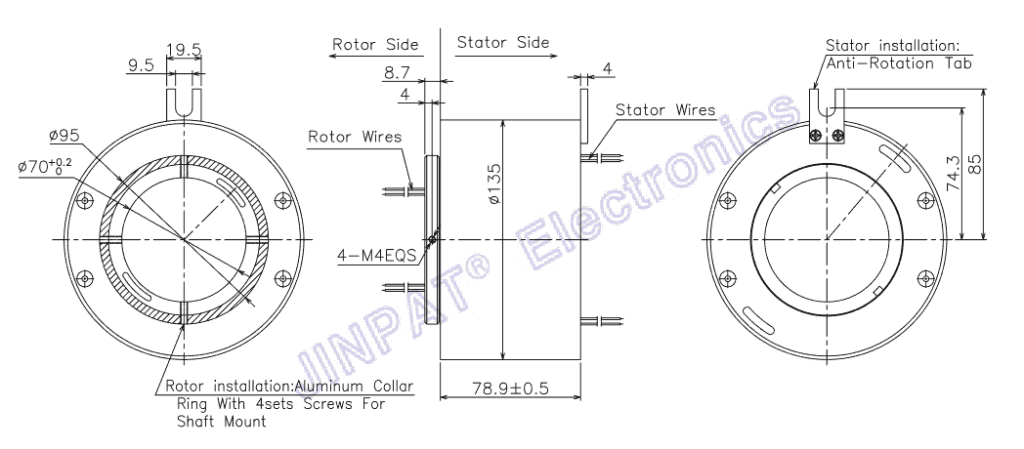

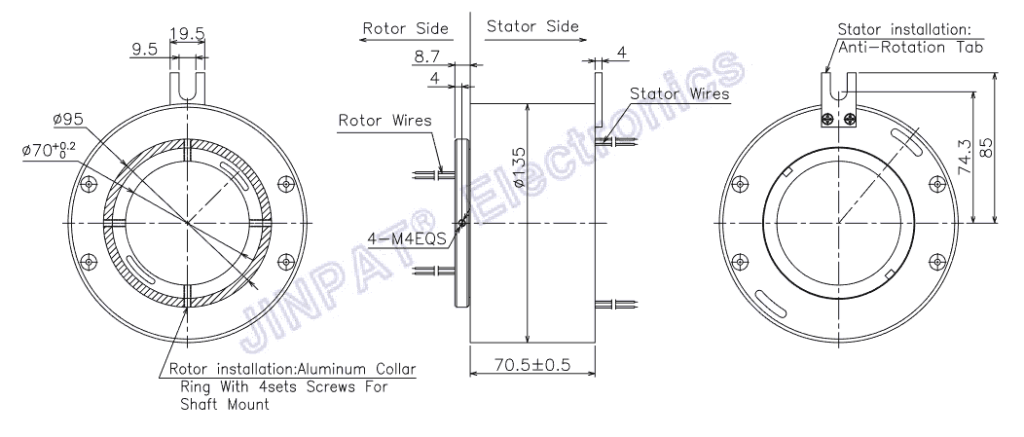

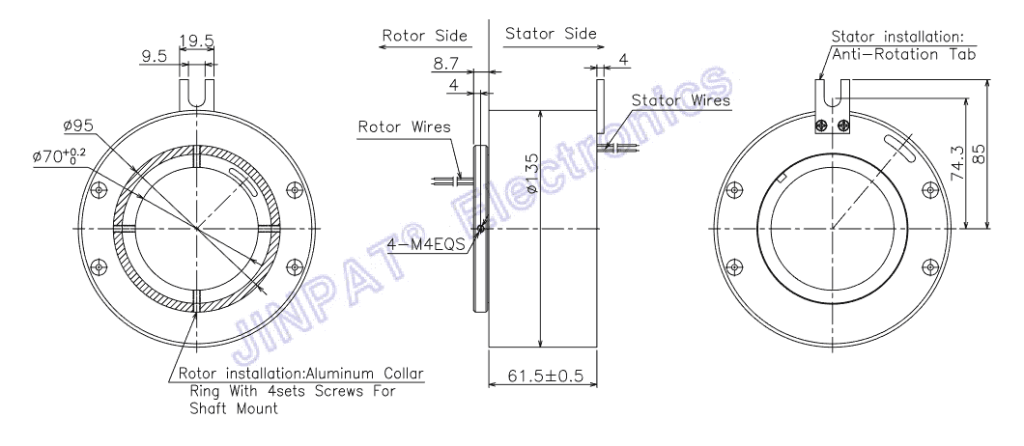

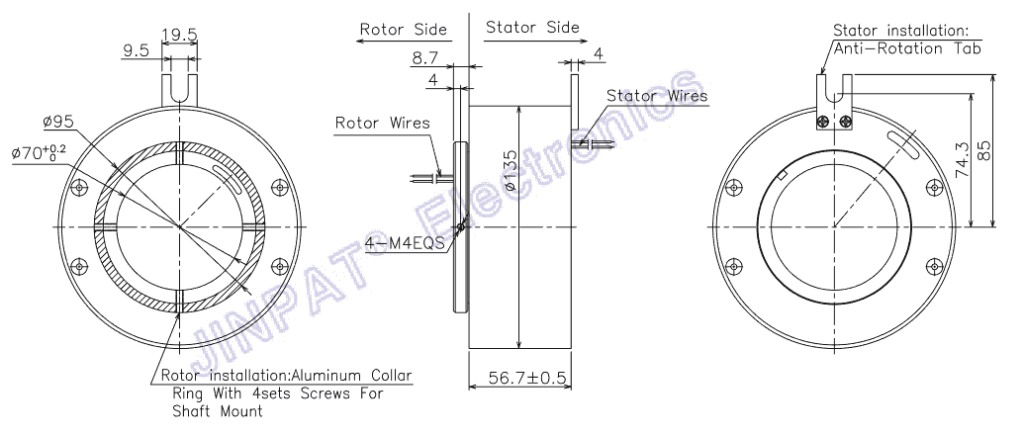

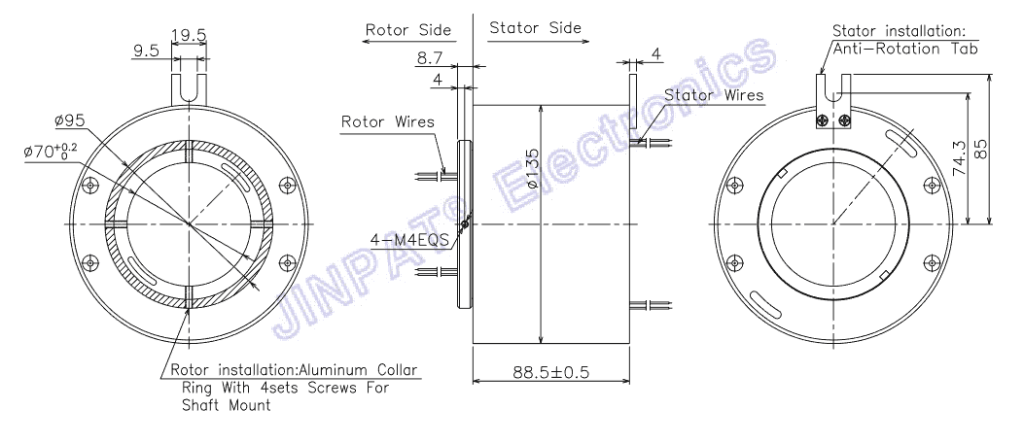

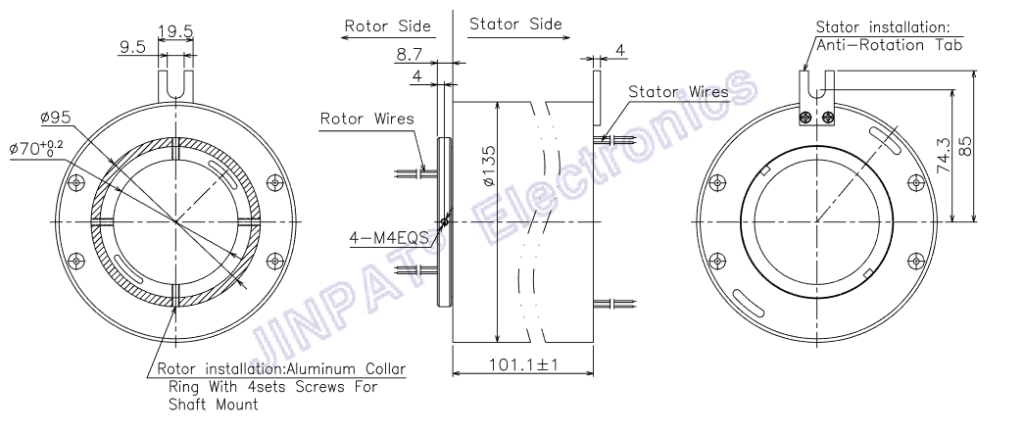

An unobstructed 70mm diameter through hole provides space for routing hydraulics, pneumatics or for a

concentric shaft mounting. The LPT070 uses our fiber brush technology, which offers several advantages over conventional slip rings, including multiple contact points per brush bundle, low contact force per fiber, and low contact wear rate. In addition, fiber brushes require no lubrication and produce virtually no debris when worn. The LPT070 has serviceable brush assemblies.

Features:
◎Analog and digital signal transmission
◎ Power and signal are transmitted mixed, and the signal categories are as follows:
◎Ethernet: Speed (10 Mbps/100 Mbps/1000 Mbps)
◎Industrial Ethernet: EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP, etc.
◎HD video: SDI, LVDS, etc.
◎ Serial communication: RS232, RS485, RS422, etc.
◎Universal serial bus: USB2.0
◎Industrial field bus: CANBus, ProfiBus, InterBus, CC-Link, DeviceNet, etc.
◎Sensor signal: thermistor, thermocouple, load cell, etc.
◎Long service life, maintenance free
◎Easy installation
Main applications:
◎Industrial automation equipment/medical equipment/wind power equipment/testing equipment/exhibition /
demonstration equipment/robots/rotating equipment/entertainment equipment/high speed railroad equipment/packaging equipment/packaging equipment.
equipment/marine marine equipment/construction equipment
