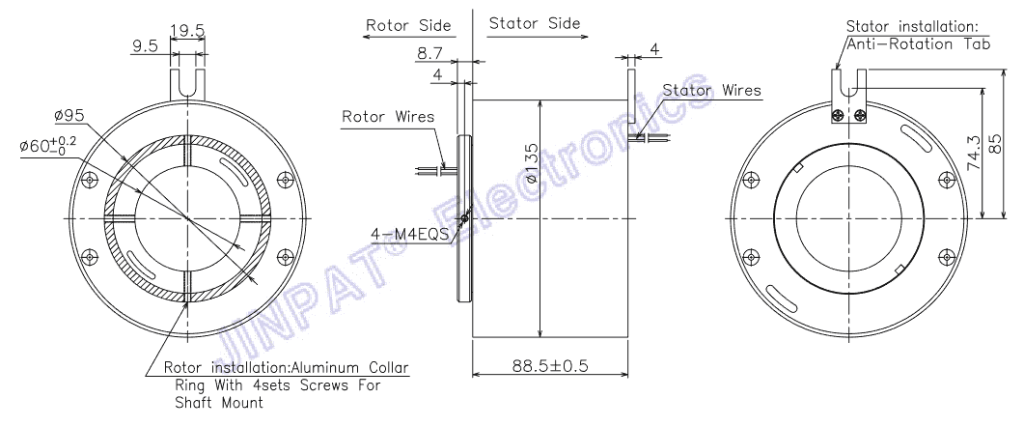

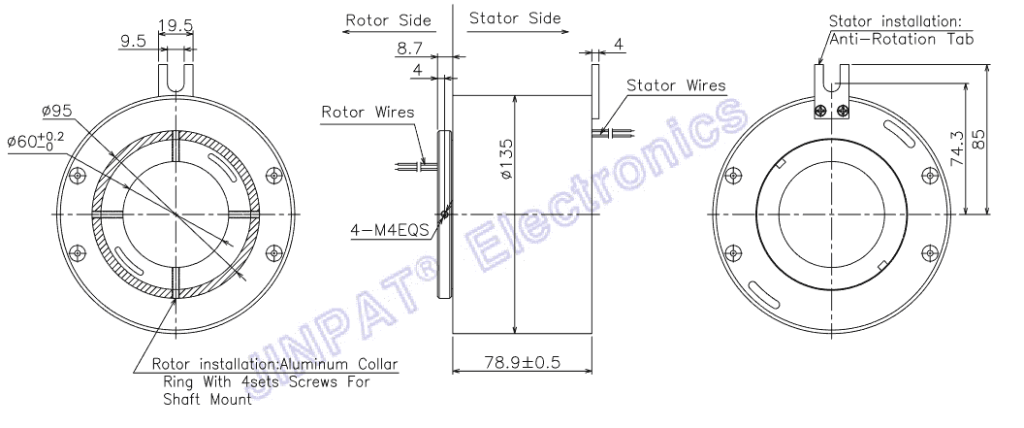

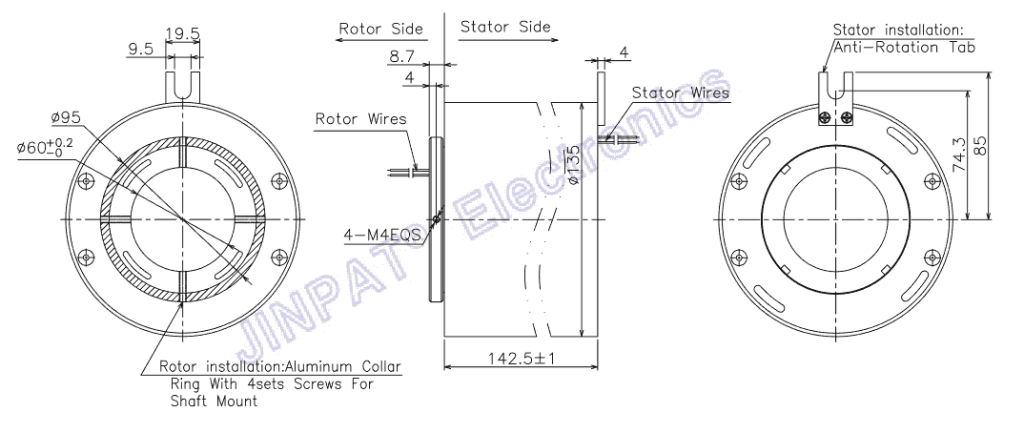

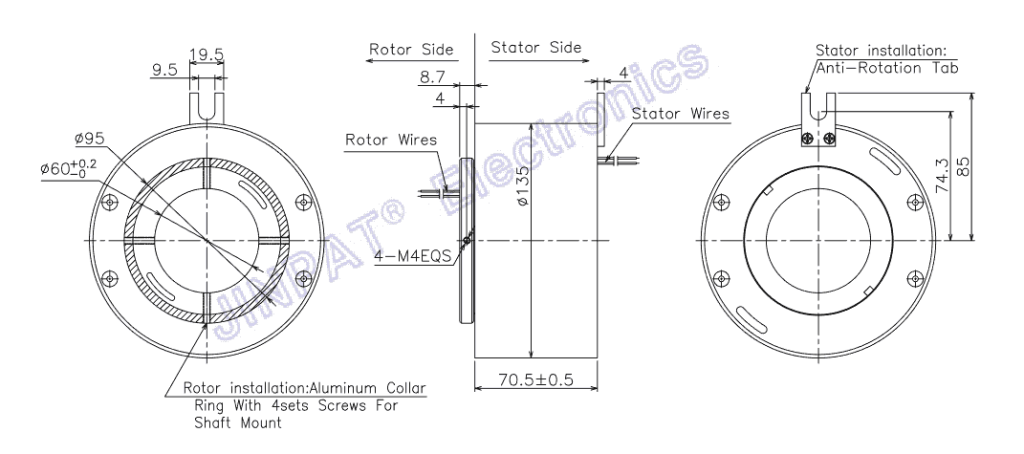

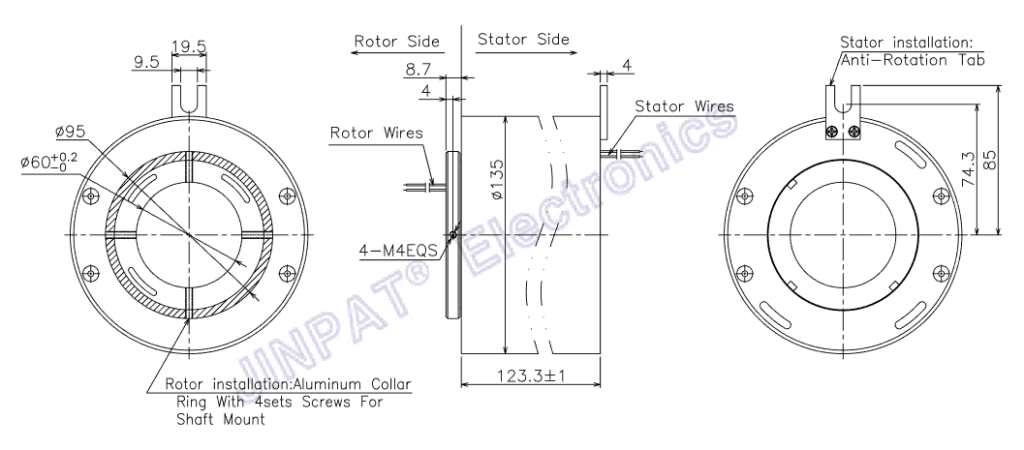

LPT-060 Series Through Bore Slip Rings

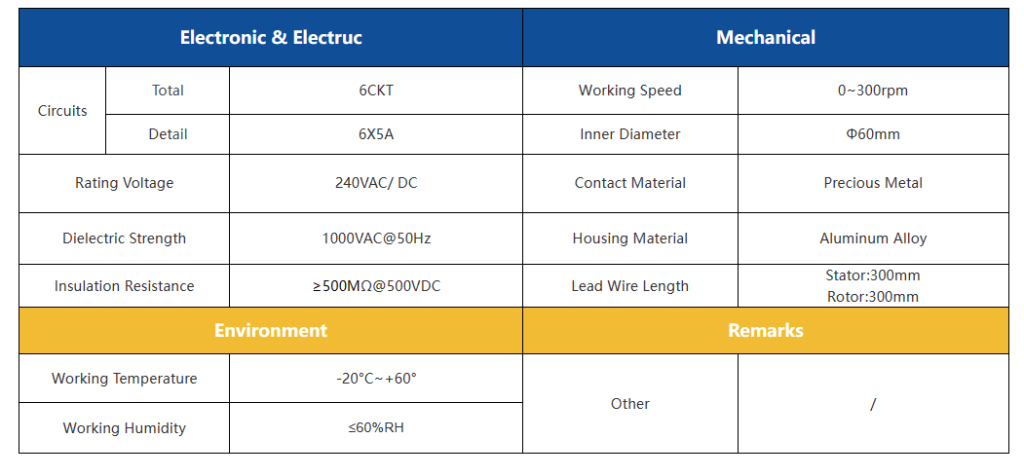

Number of outputs :6
Isolation resistance :≥500MΩ@500VDC
Operating voltage:240VAC/DC
Dielectric strength:1000VAC@50Hz
Inner diameter Φ60mm
Operating temperature:-20°C~+60°C
Operating humidity:≤60%RH
Current lead wire length：Stator:300mm/Rotor:300mm
Working speed:0~300min

Характеристики модели

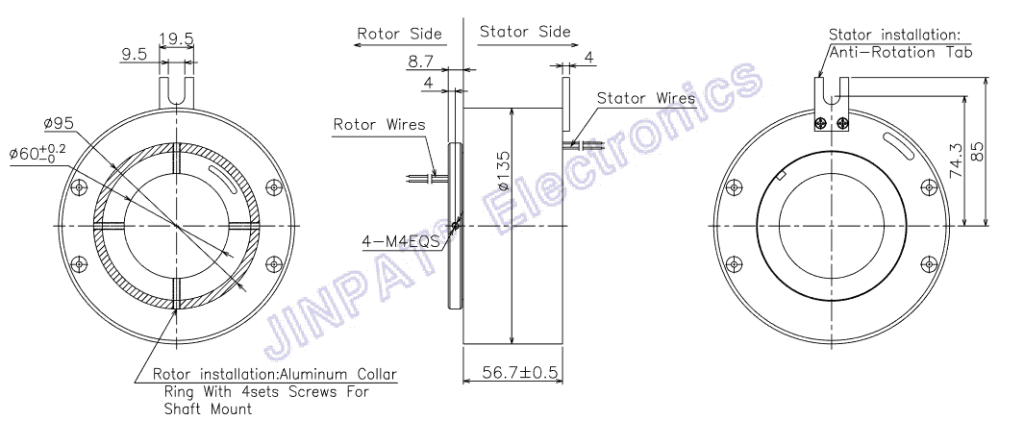

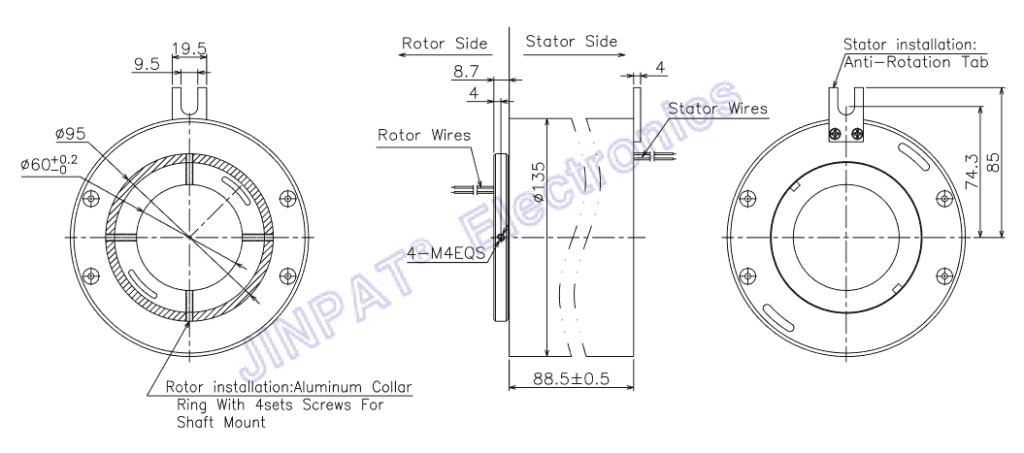

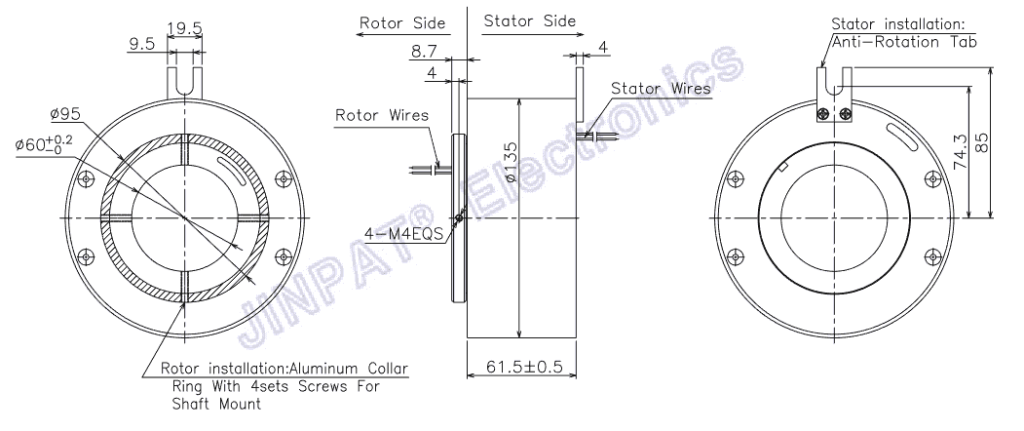

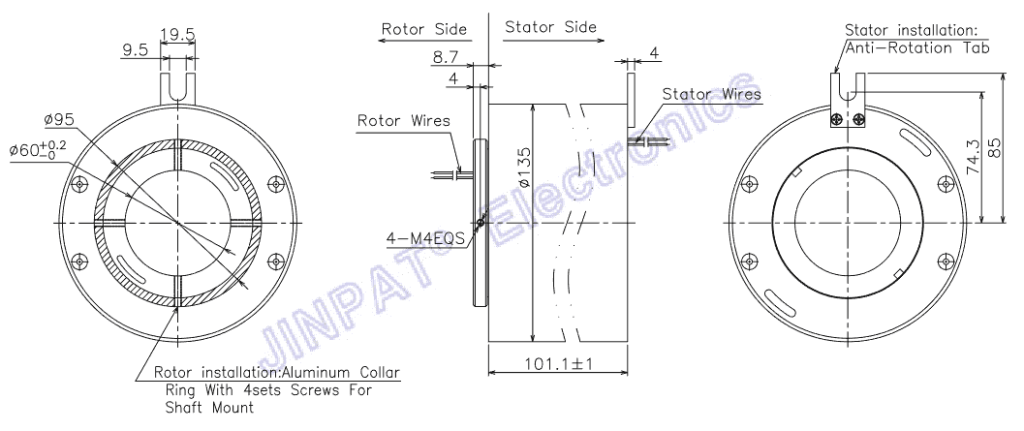

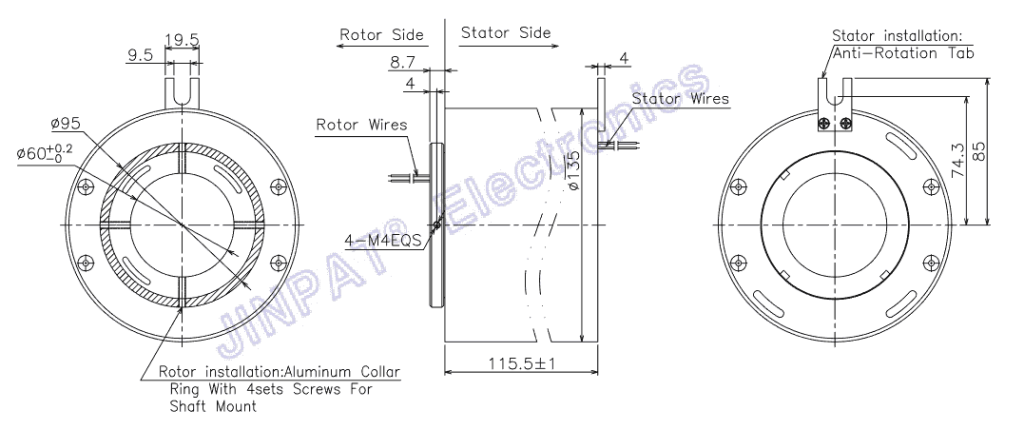

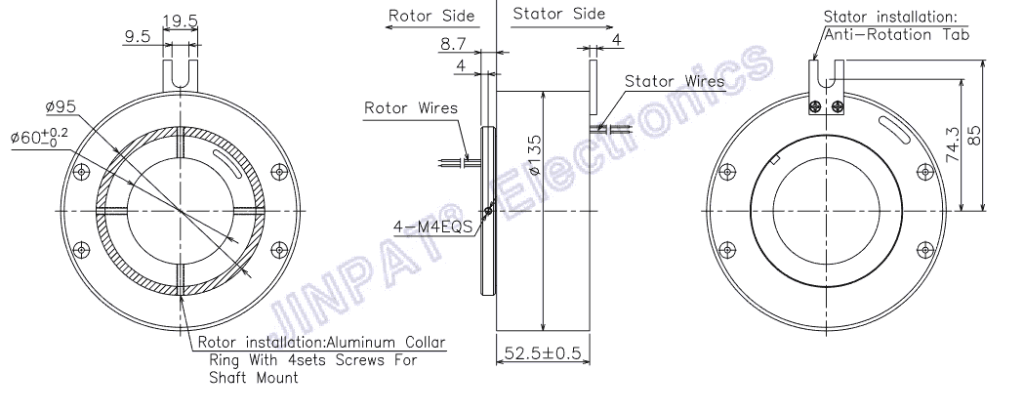

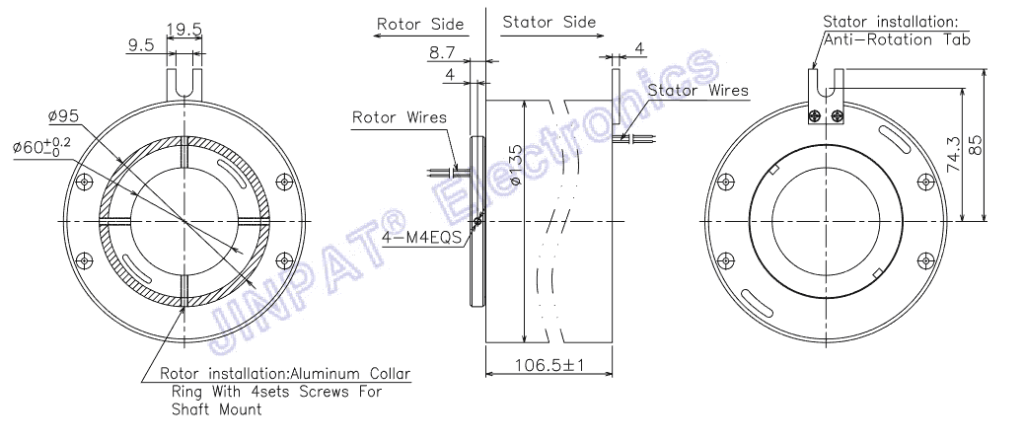

Slip rings enable the transmission of electrical energy or signals through rotating parts such as radar antennas, gun turrets, periscopes, electro-optical sensors and space satellites. The sliding contact is established by a brush that is pressed against a metal ring. The “brush” looks like a metal fiber brush, but more often it looks like a single wire or spring with a pad of material attached to the end that contacts the ring. This is an LPT060 slip ring with a 60mm through hole, it can be combined with power, signal, Ethernet, USB, Control Net, CANBUS, PROFIBUS, it can also be shaft mounted or optionally flange mounted.
