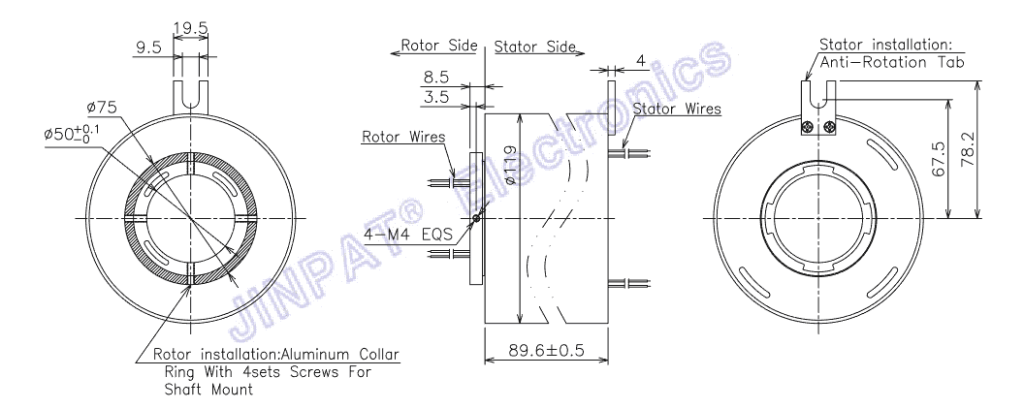

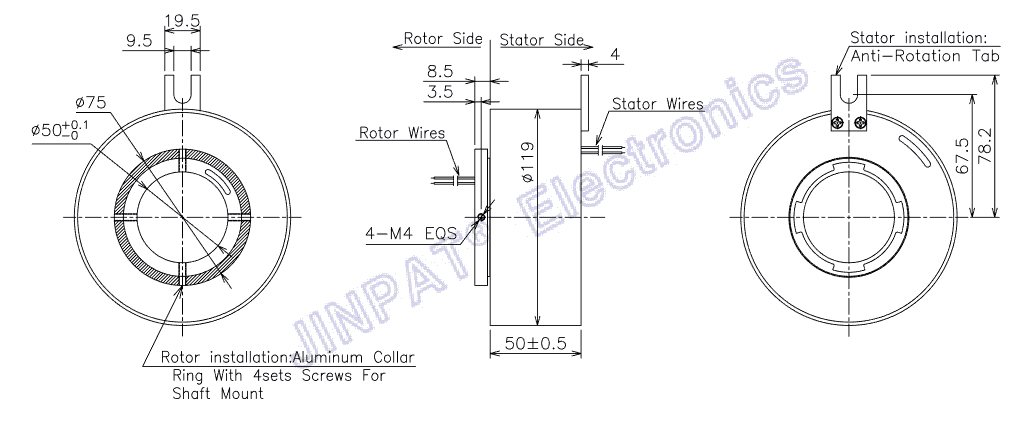

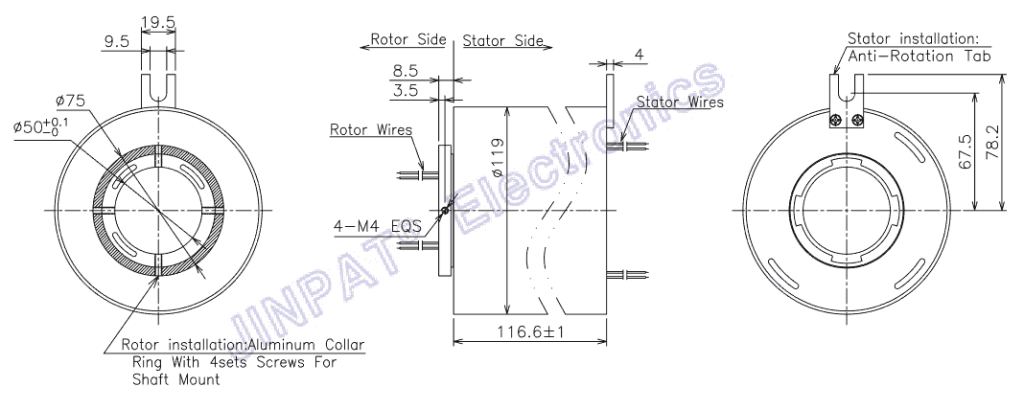

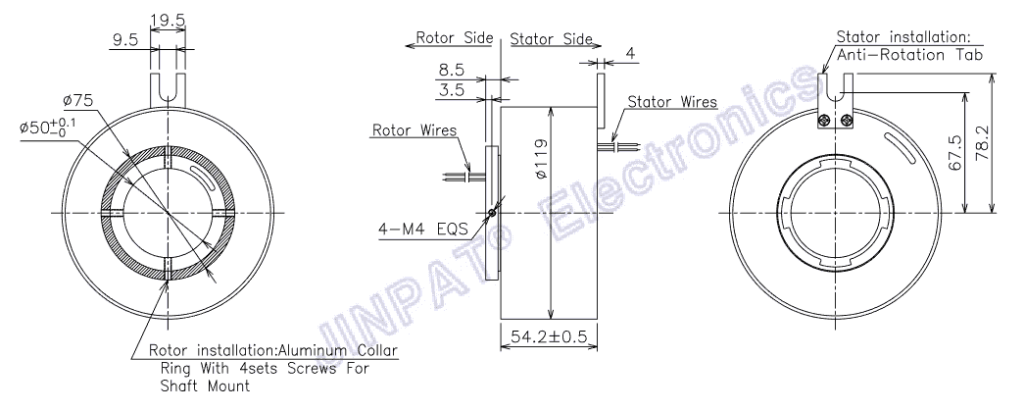

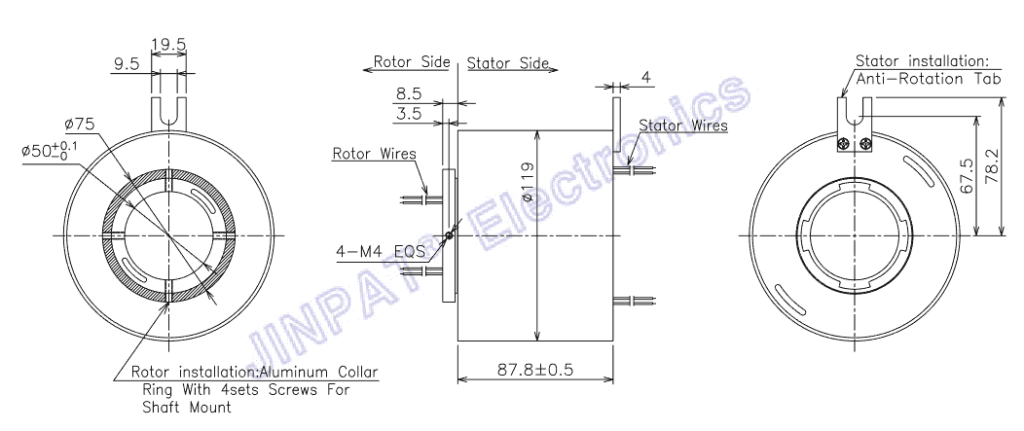

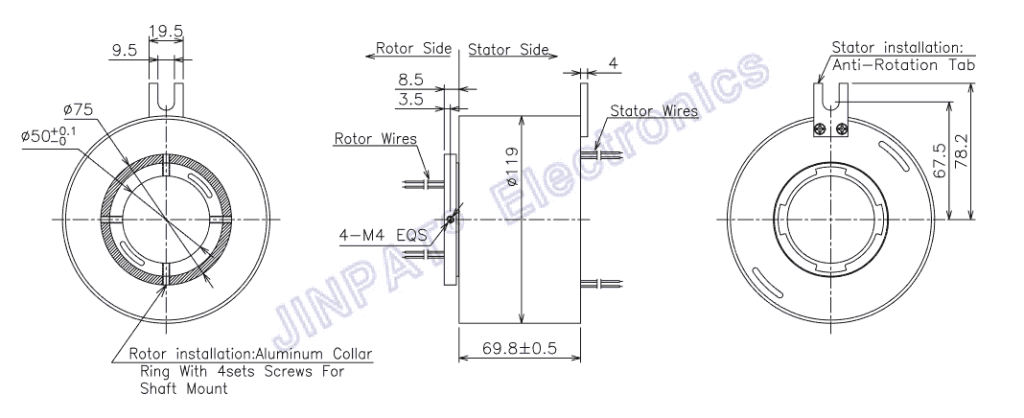

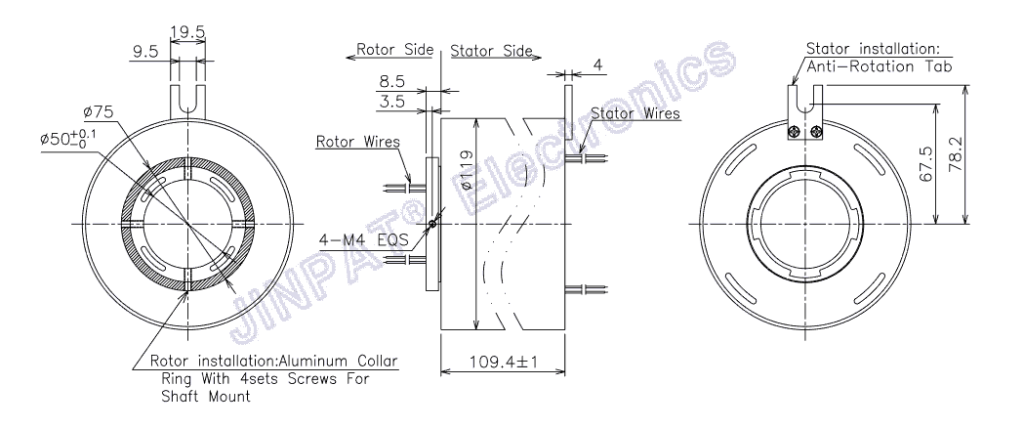

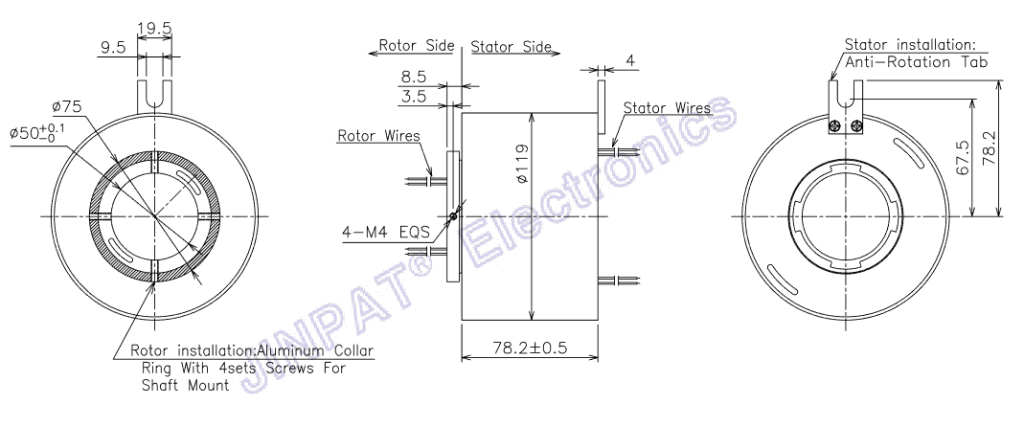

LPT-050 Series Through Bore Slip Rings

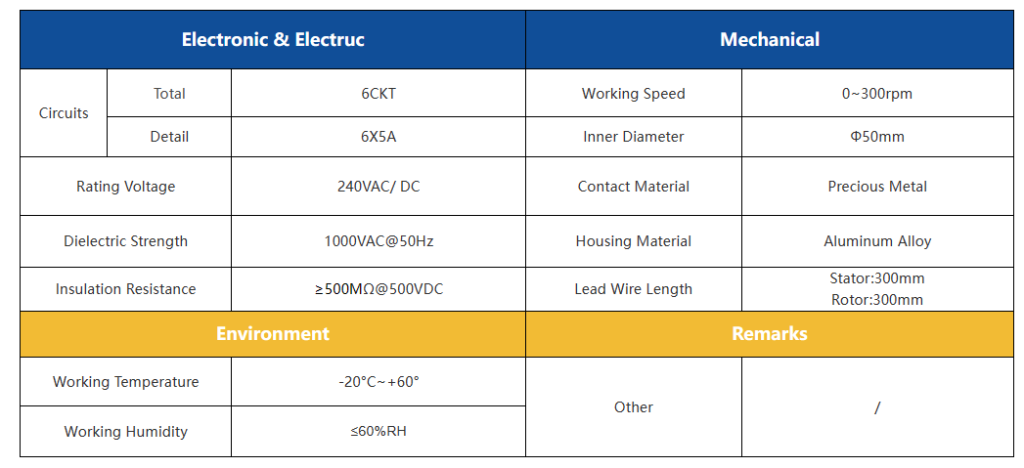

Number of outputs :6
Isolation resistance :≥500MΩ@500VDC
Operating voltage:240VAC/DC
Dielectric strength:1000VAC@50Hz

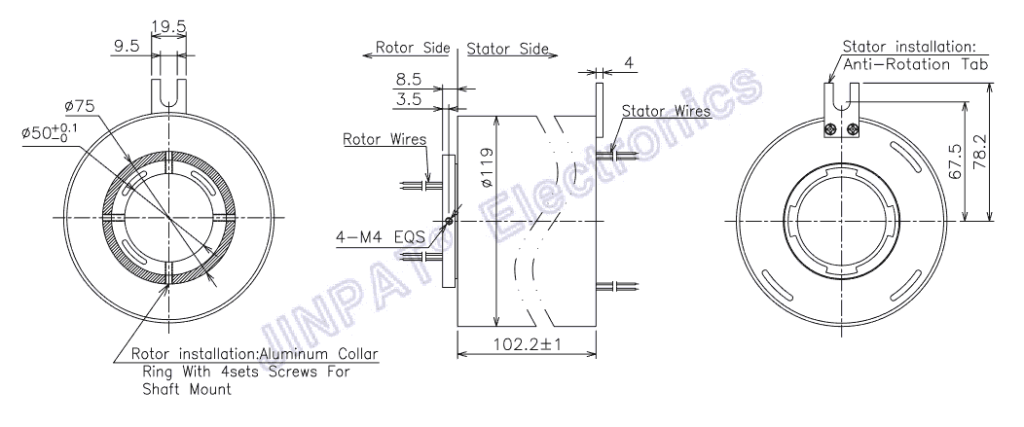

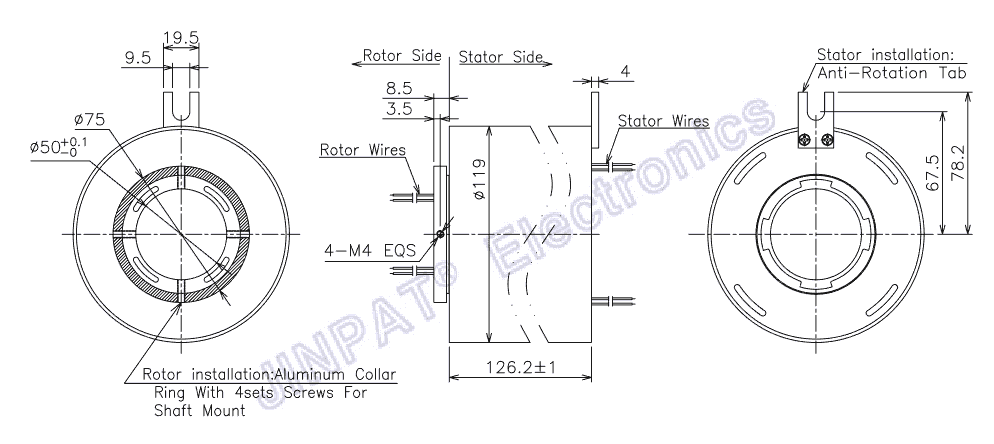

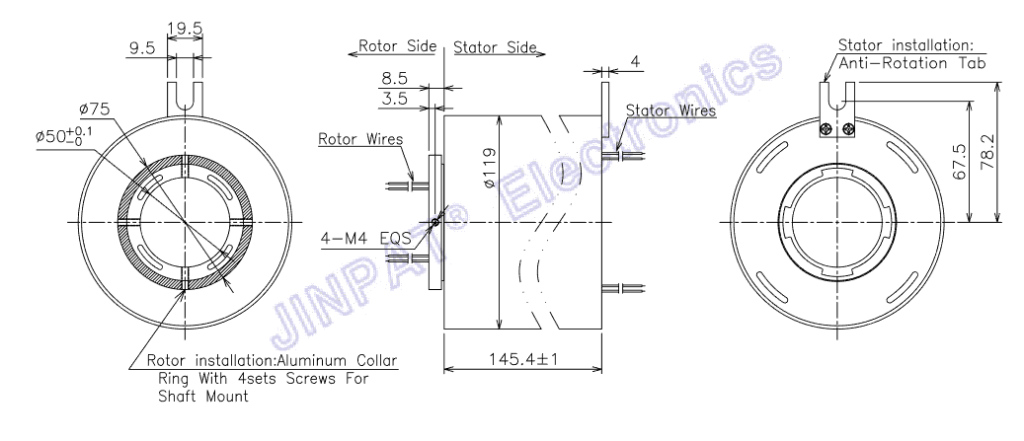

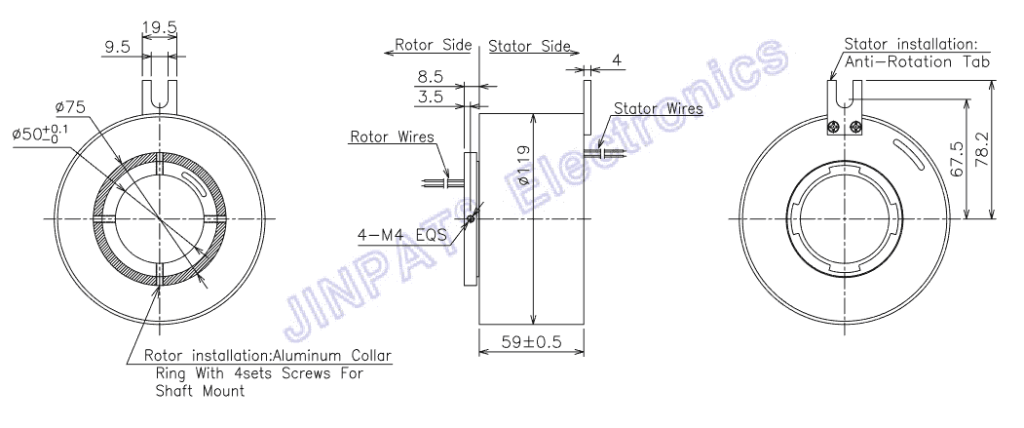

Inner diameter Φ50mm
Operating temperature:-20°C~+60°C
Operating humidity:≤60%RH
Current lead wire length：Stator:300mm/Rotor:300mm
Working speed:0~300min

Характеристики модели

LPT050 series slip ring with 50 mm through-hole

The slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation when transferring power or data from a fixed to a rotating structure.

The LPT050 uses JINPAT fiber brush technology, which offers several advantages over conventional slip rings, including multiple contact points per brush bundle, low contact friction on the fiber, and low contact wear rate. In addition,
fiber brushes require no lubrication and produce virtually no debris when worn. The LPT050 has field serviceable brush assemblies.
