LPT-038 Series Through Bore Slip Rings

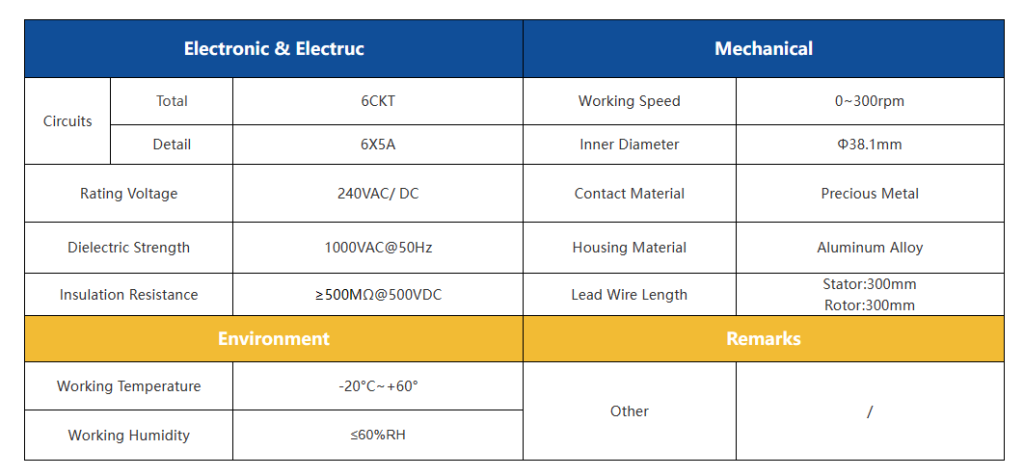

Number of outputs :6
Isolation resistance :≥500MΩ@500VDC
Operating voltage:240VAC/DC
Dielectric strength:1000VAC@50Hz
Inner diameter:Φ38.1mm
Operating temperature:-20°C~+60°C
Operating humidity:≤60%RH
Current lead wire length：Stator:300mm/Rotor:300mm
Working speed:0~300min

Характеристики модели

The LPT038 provides an economical, readily available solution when a compact through-hole configuration is required.

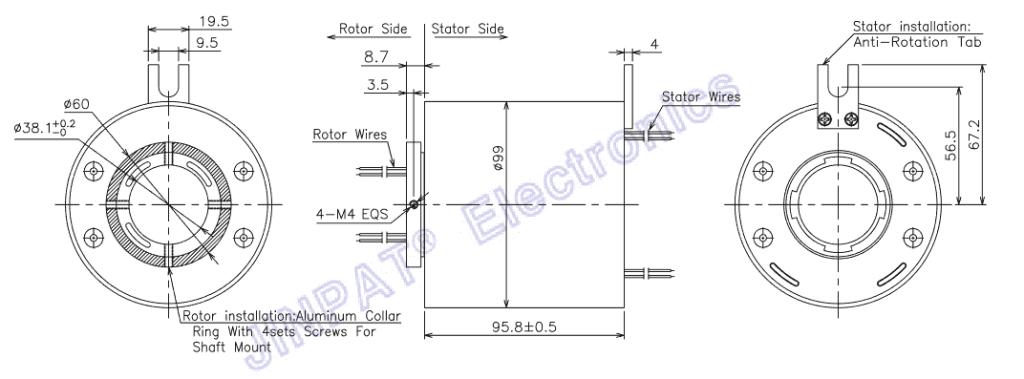

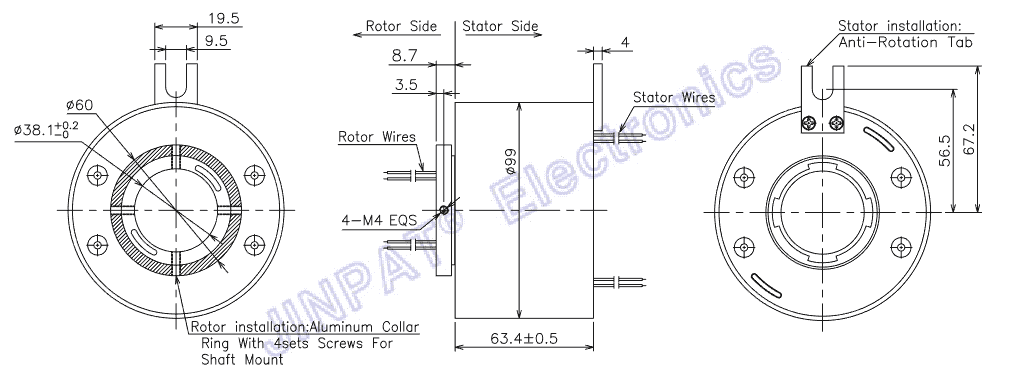

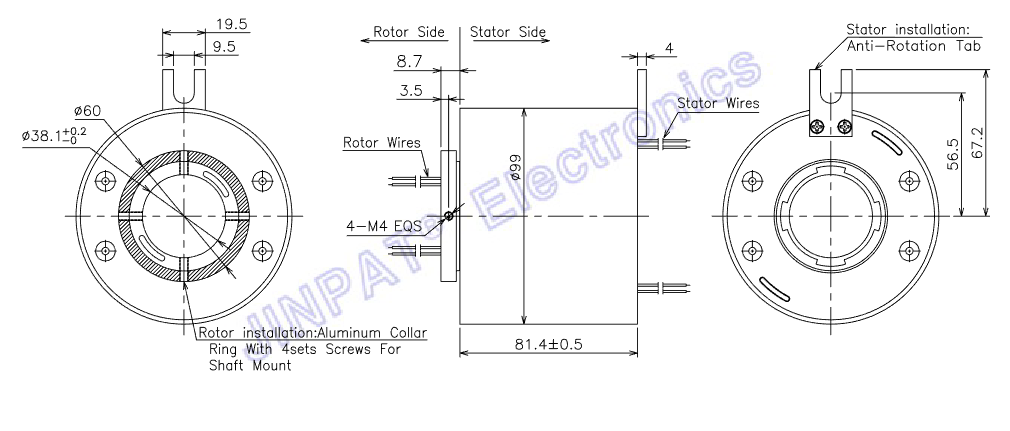

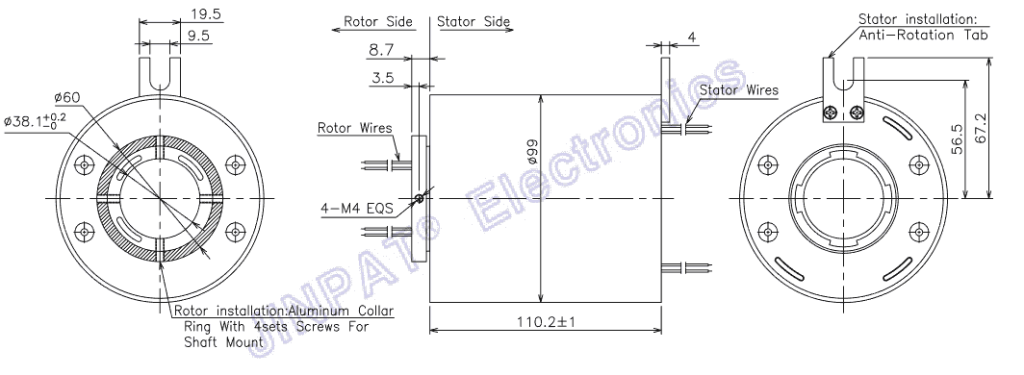

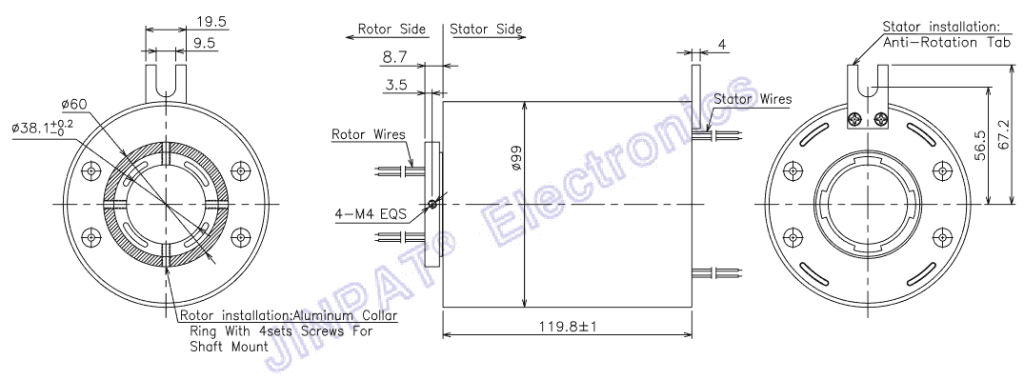

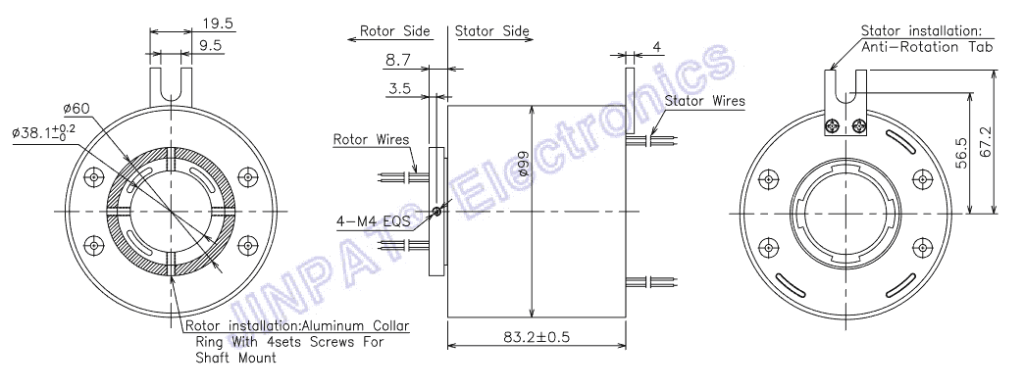

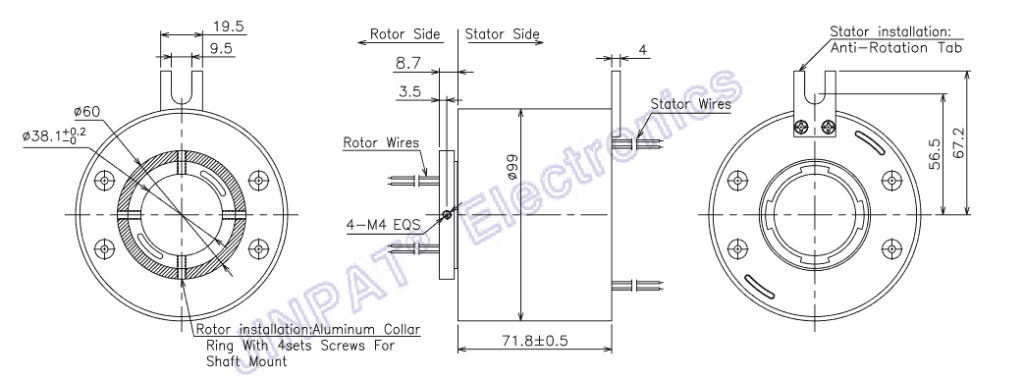

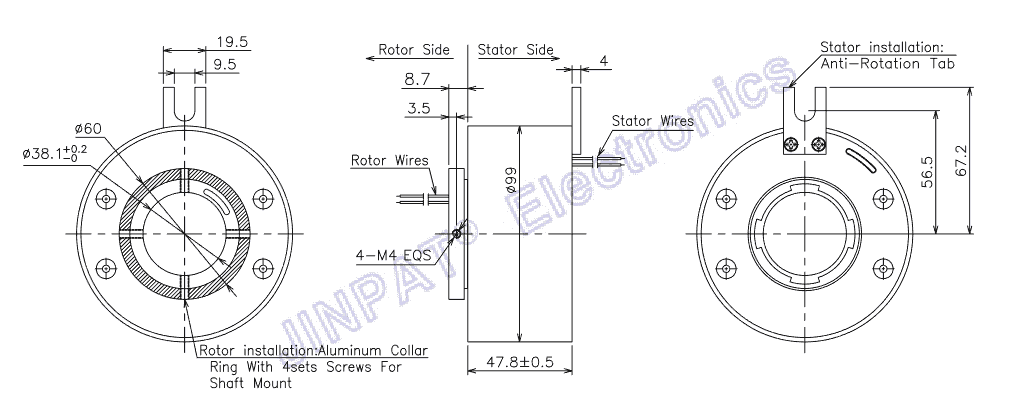

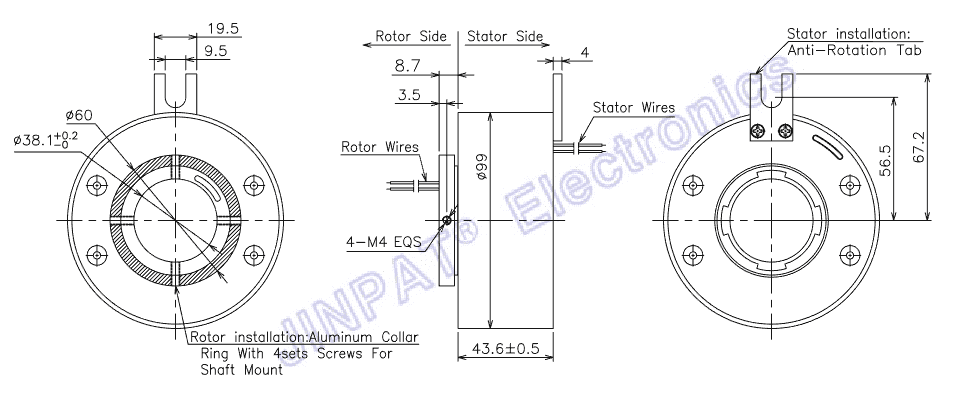

This device features a 38.1 mm through-hole for routing hydraulic or pneumatic lines and a compact 86 mm outer diameter for applications where space is at a minimum. The 15 amp circuit is available in 6, 12, 18 and 24 ring configurations in 4 body lengths.
