LPT-025 Series Through Bore Slip Rings

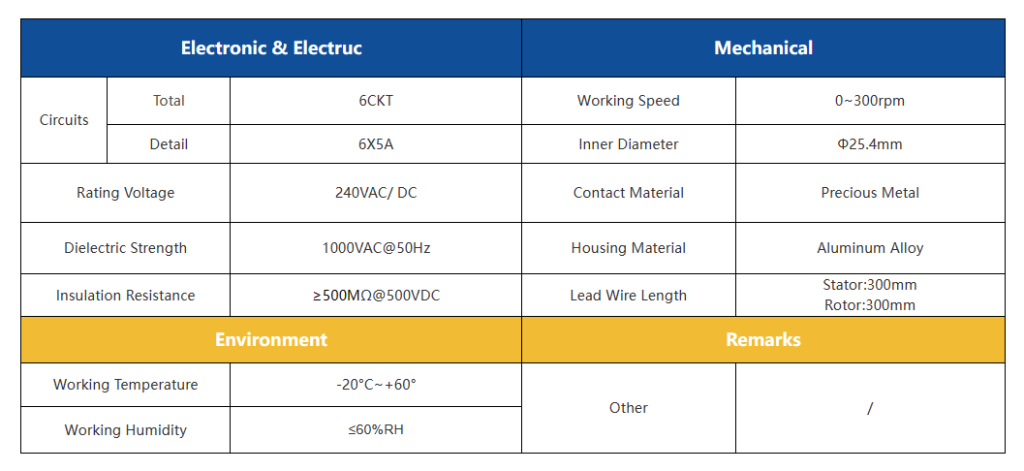

Number of outputs:6
Insulation resistance:≥500MΩ@500VDC
Working voltage:240VAC/DC
Dielectric strength:1000VAC@50Hz
Inner diameter :Φ25.4mm
Working temperature:-20°C~+60°C
Working humidity:≤60%RH
Length of lead wire：Stator:300mm/Rotor:300mm
Working speed:0~300min

Характеристики модели

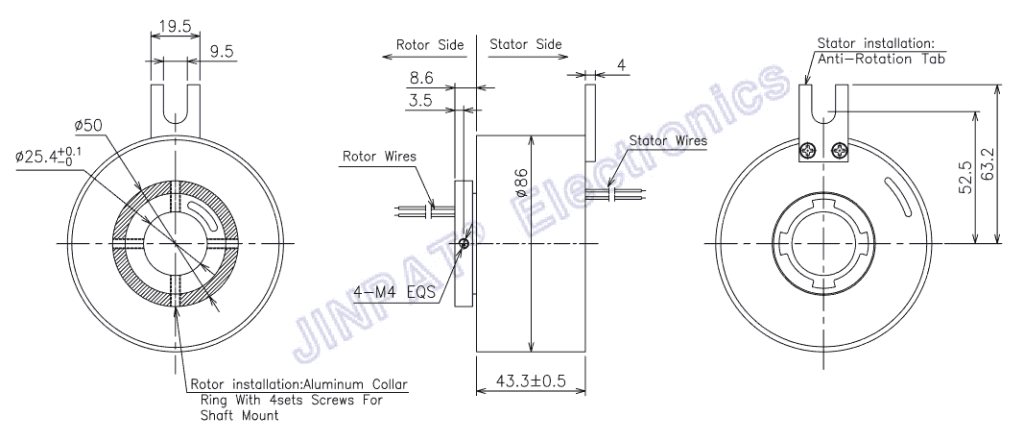

The LPT025-0605 Compact Slip Ring features 6 circuits at 5 amps per wire. The compact slip ring features a 25.4 mm bore size for hydraulic or pneumatic lines and a compact 86 mm outside diameter for use in minimum space conditions. This design features durable, fiber brush contact technology for maximum performance in many challenging applications.

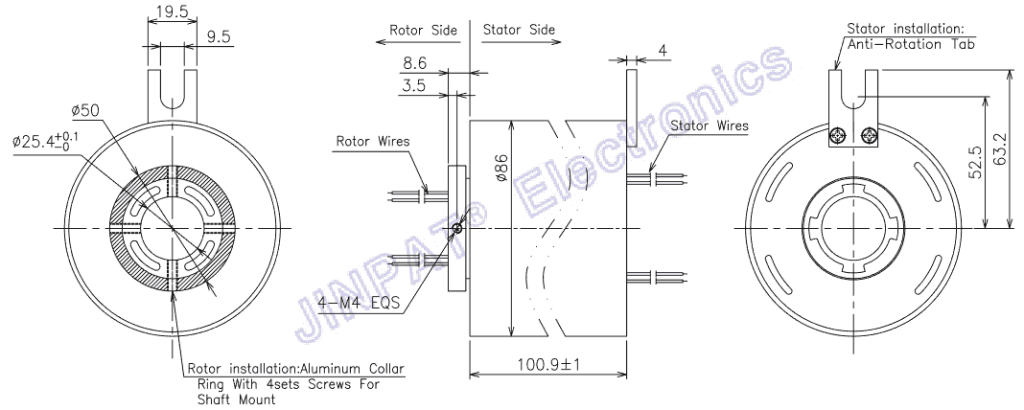

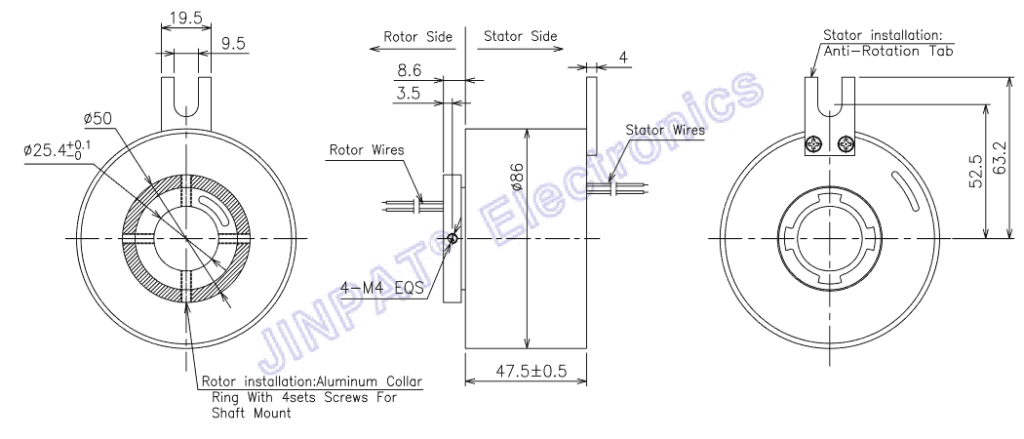

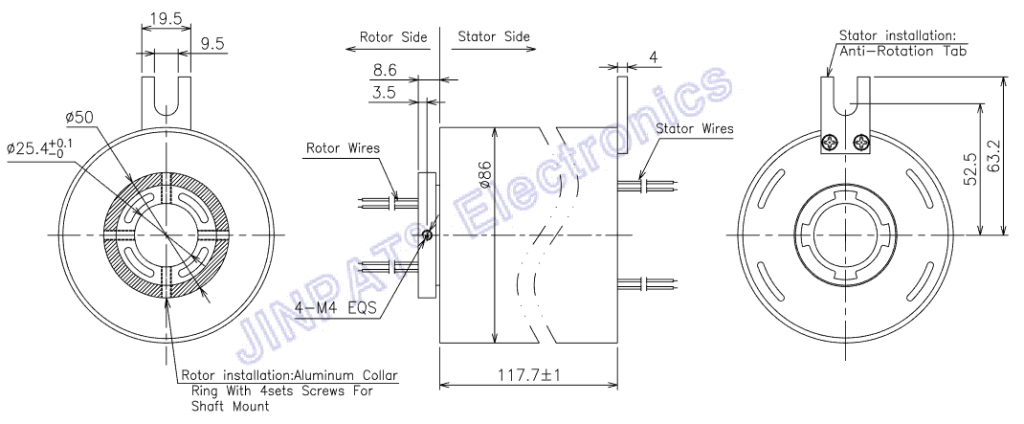

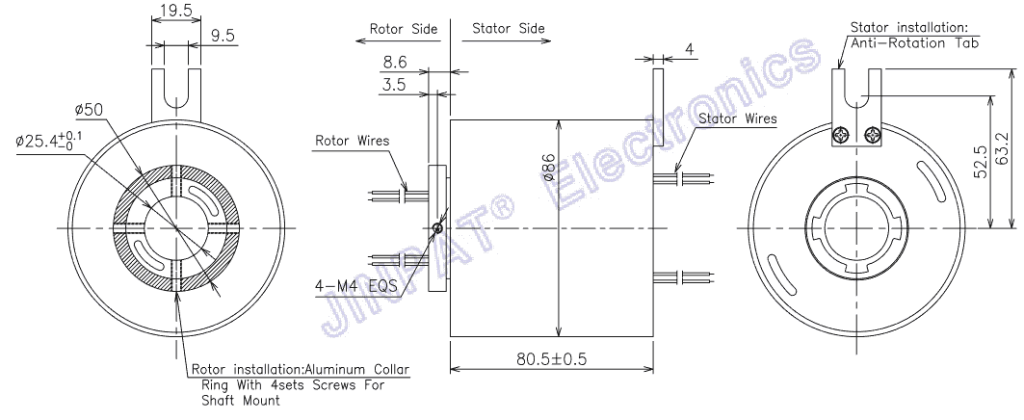

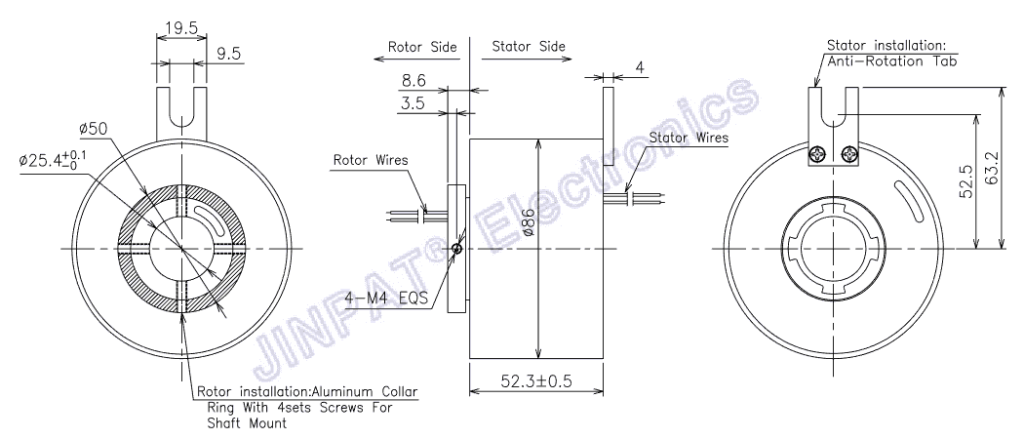

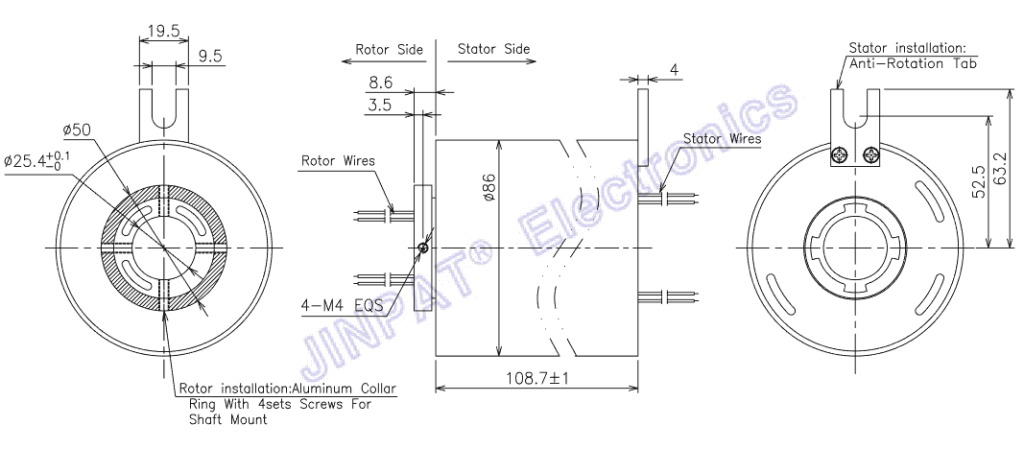

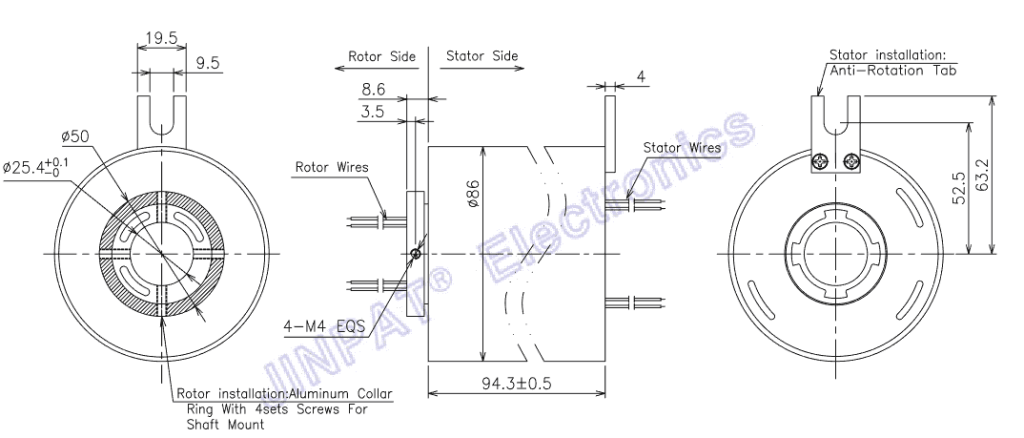

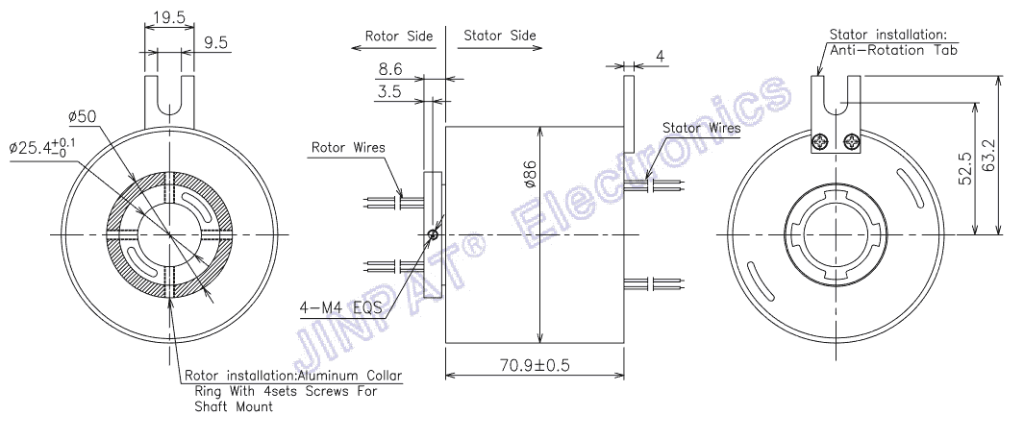

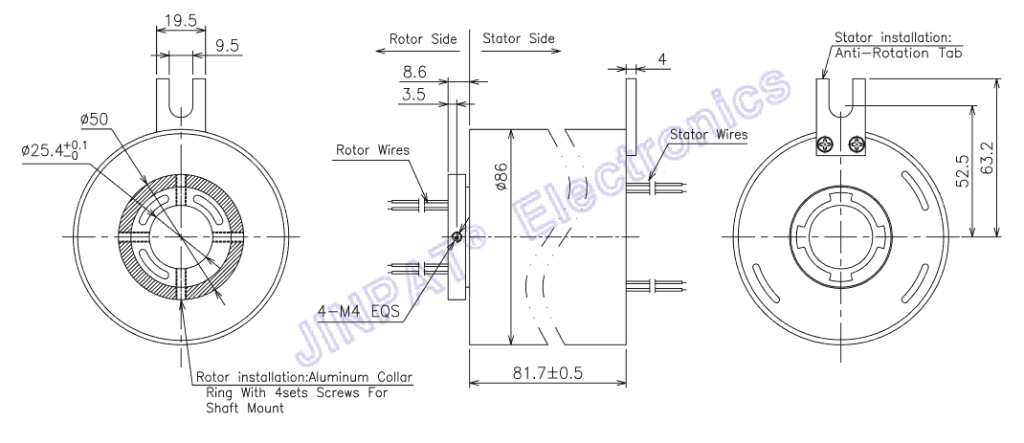

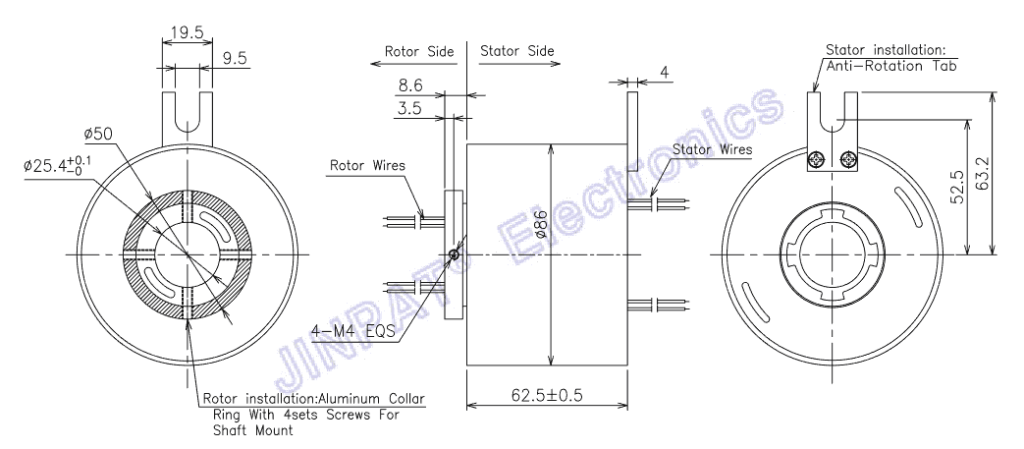

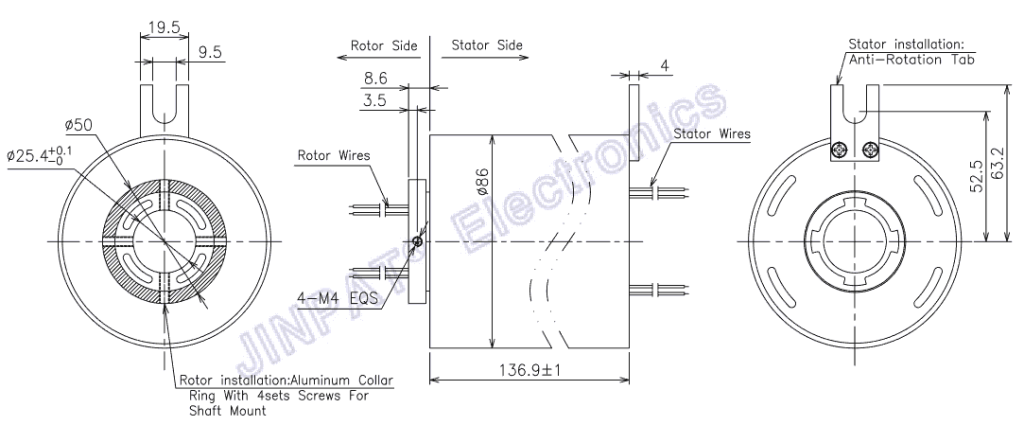

This is an economical and readily available solution when a compact, through-the-loop configuration is required. The LPT025 Series Slip Rings, rated at 15 amps per circuit, are available in 6, 12, 18 and 24 ring configurations in 4 body lengths. Similar to our very popular LPT025 Series, this design features durable, fiber brush contact technology for maximum performance in many challenging applications. Fiber brushes require no lubrication and produce virtually no wear debris, ensuring long-term maintenance-free operation.
