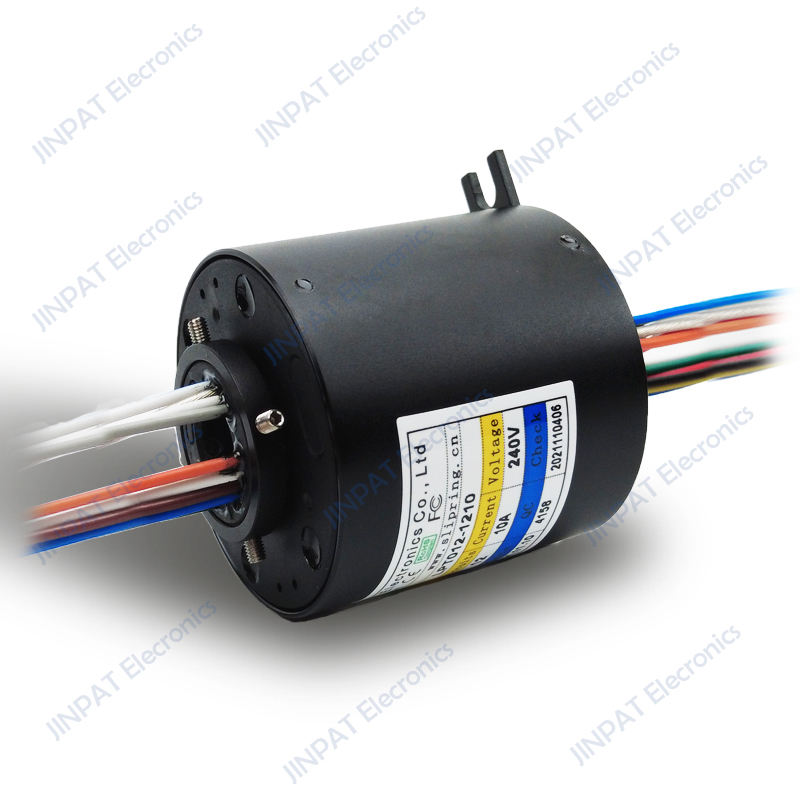

LPT-012 Series Through Bore Slip Rings

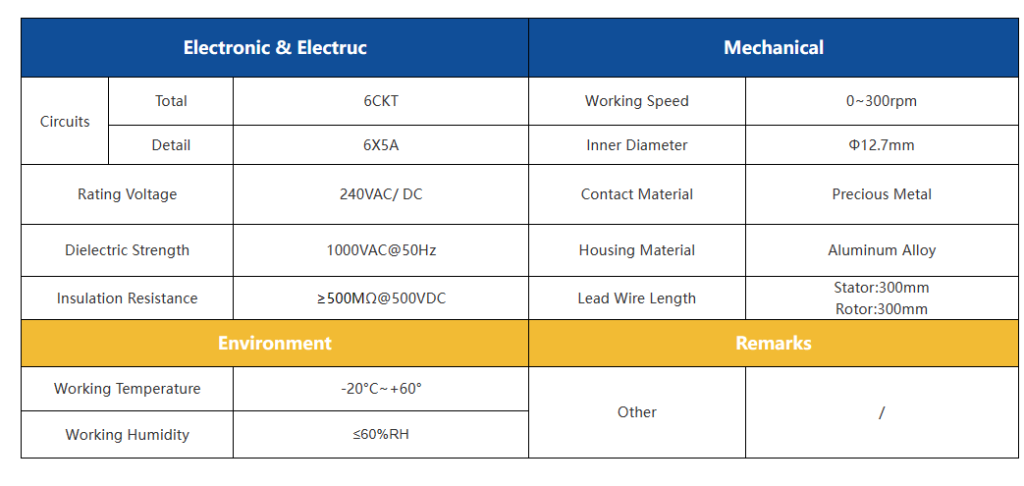

Number of outputs:6
Insulation resistance:≥500MΩ@500VDC
Working voltage:240VAC/DC
Dielectric strength:1000VAC@50Hz

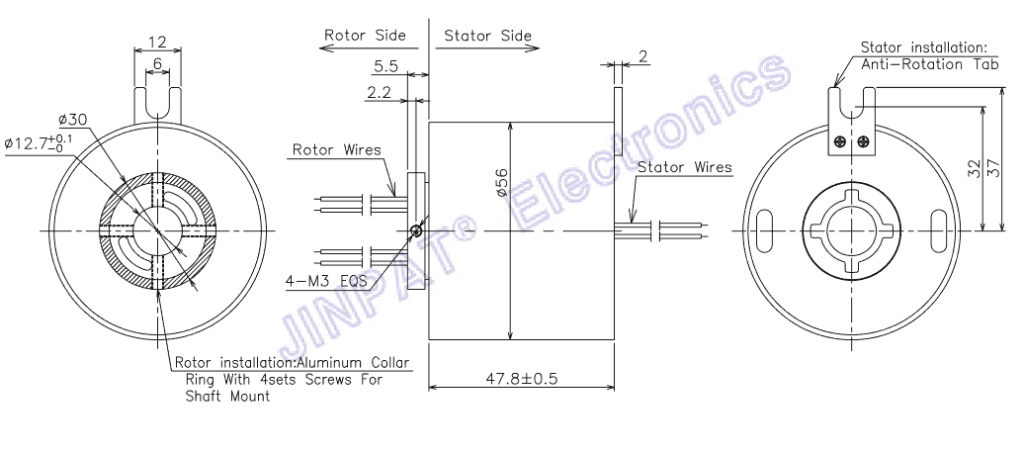

Inner diameter :Φ12.7mm
Working temperature:-20°C~+60°C
Working humidity:≤60%RH
Length of lead wire：Stator:300mm/Rotor:300mm
Working speed:0~300min

Характеристики модели

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotating. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPT012 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines and a compact 55mm outside diameter for minimal space applications. The 5 amps /circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing length. Similar in design to our very popular LPT012 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, life time operation.

Features

◆ 6, 12, 18 and 24 circuits models

◆ Precious metal contacts

◆ 5 amps rings

◆ Precision ball bearings for long life

◆ Speed up to 500 rpm continuous

◆ Compact size

◆ Sealed units available

◆ Flying leads

◆ Fully compatible with both analog and TTL control level signals

◆ Rugged black anodized aluminum construction
