LPT012A-1202-Through-bore Slip Rings

LPT012A-1202-Through-bore Slip Rings

  • Number of outputs) :12
  • Isolation resistance :≥300MΩ@500VDC
  • Operating voltage:240VAC/DC
  • Inner diameter Φ12.7mm
  • Operating temperature:-20°C~+60°C
  • Operating humidity:≤60%RH
  • Current lead wire length:Stator:300mm/Rotor:300mm
  • Working speed:0~300min
ДОКУМЕНТАЦИЯ СВЯЗАТЬСЯ С НАМИ

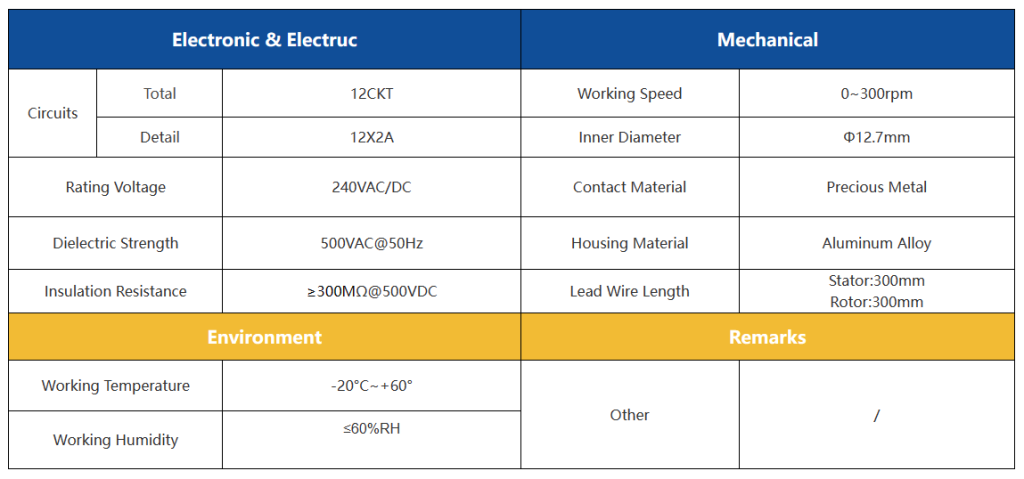

Характеристики модели

The LPT series are slip rings with a through-hole (the center hole can pass through the drive shaft, gas-liquid passage; it can also
also integrate high-frequency, fiber optic, encoder, waveguide, gas-liquid, and other connections). The use of an advanced fiber
brush ensures reliable contact with extremely low friction. The center hole is available from 0 to 1000 mm. Current
ranges from mA to 5000 amperes. The voltage can be up to 10000 volts, which can fully meet various transmission needs.

Features:
◎Analog and digital signal transmission
◎ Power and signal are transmitted mixed, and the signal categories are as follows:
◎Ethernet: Speed (10 Mbps/100 Mbps/1000 Mbps)
◎Industrial Ethernet: EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP, etc.
◎HD video: SDI, LVDS, etc.
◎ Serial communication: RS232, RS485, RS422, etc.
◎Universal serial bus: USB2.0
◎Industrial field bus: CANBus, ProfiBus, InterBus, CC-Link, DeviceNet, etc.
◎Sensor signal: thermistor, thermocouple, load cell, etc.
◎Long service life, maintenance free
◎Easy installation

Main applications:
◎Industrial automation equipment/medical equipment/wind power equipment/testing equipment/exhibition /
demonstration equipment/robotics/rotating equipment/entertainment equipment/high speed railroad equipment/packaging equipment.
equipment/marine equipment/construction equipment

keywords through-hole slip rings, through-hole hollow slip rings, through-hole shaft slip rings, electrically conductive rotating rings, electric slip ring, electric slip ring, electric slip ring, through-hole shaft slip rings, through-hole shaft slip rings.

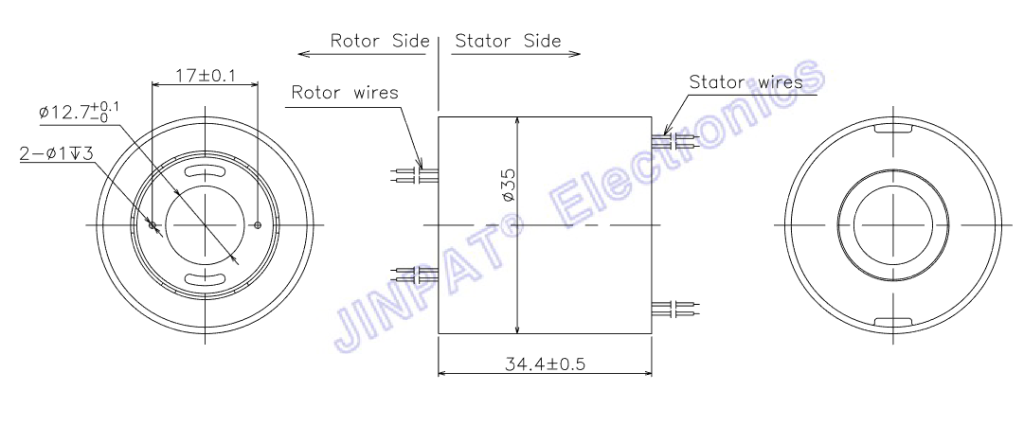

LPT012A-1202-Outline Drawing
